An 80 cm long wire is made by welding a 1.8 mm diameter, 20 cm long...

An 80 cm long wire is made by welding a 1.8 mm diameter, 20 cm long copper wire to a 1.8 mm diameter, 60 cm long iron wire at normal room temperature (20 ∘C).

When two wires are connected end to end, their resistances add together.

The resistivity of copper is 1.68×10−8Ωm and the of iron is 1.00×10−7Ωm. The temperature coefficients are: copper = 0.0039/∘C and iron = 0.0050/∘C.

What is the resistance of the copper section of wire?

science physics

Add a comment Improve this question Transcribed image text

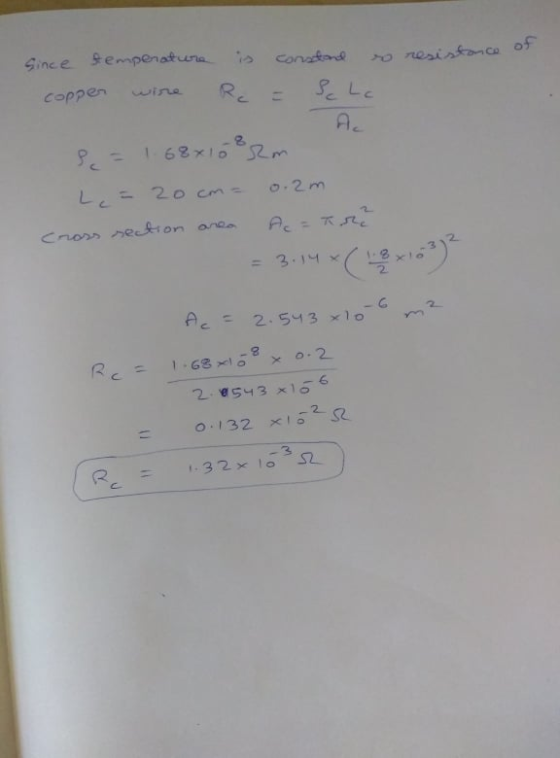

Answer 1

Answer #1

Add a comment
