A beam fixed at both ends has a point load of 75.9 kips in the center...

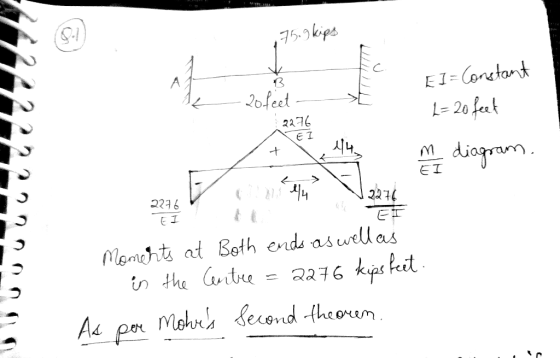

A beam fixed at both ends has a point load of 75.9 kips in the center of the beam, whose length is 20 feet. Determine the deflection at the point load by using the moment area method. The moments are 2276 at both ends as well as in the center. Write the answer in terms of EI. The moment formula is M(x)=.5*P*x-P*L/8, where P=75.9, L=20feet.

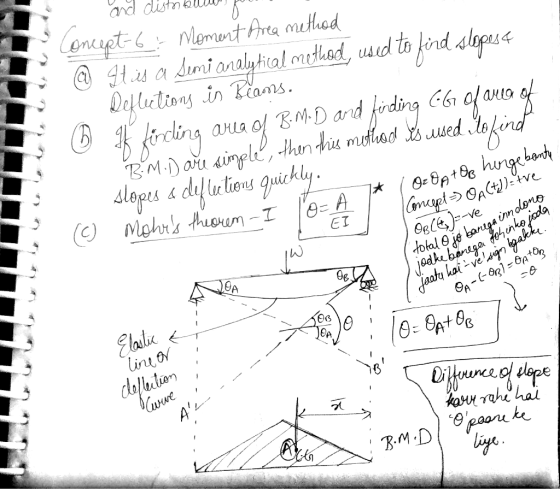

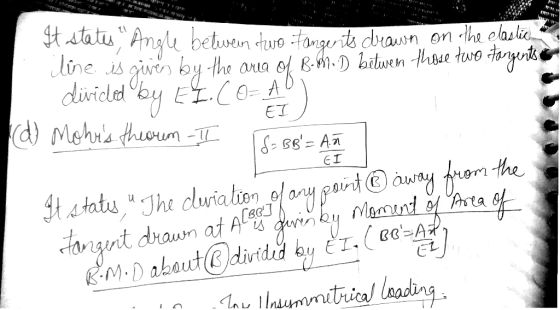

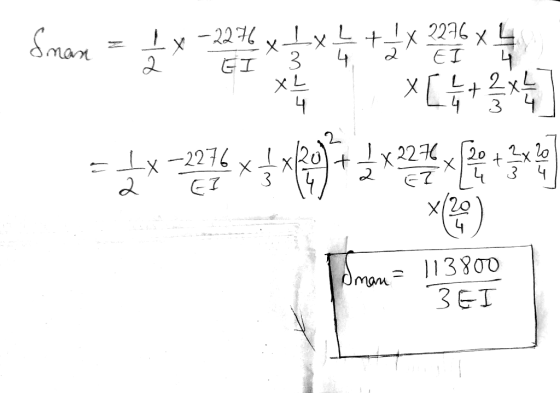

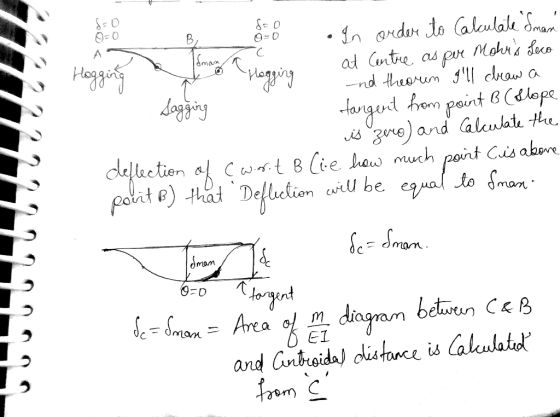

Homework Answers
Add Answer to:
A beam fixed at both ends has a point load of 75.9 kips in the
center...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting th...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
Please use conjugate beam method A beam is subjected to a single concentrated load of maganitude...
Please use conjugate beam method
A beam is subjected to a single concentrated load of maganitude P. The beam span length is Land it is fixed at both ends and has a constant EI value. The concentrated load is applied at a distance of a" from the left support (Point A) and a distance "b" from the right support (Point B) Determine the reaction forces at both ends. Use the conjugate beam method to solve for the unknown reaction forces....
The beam is loaded with 12 kips at point B. It is fixed at A and...
The
beam is loaded with 12 kips at point B. It is fixed at A and acted
upon by a concentrated load 'P' at its free end as shown. What
value of force 'P' (acting upwards) is required if the vertical
deflection at C is to be zero?
64. The beam is loaded with 12 kips at point B. It is fixed at A and acted upon by a concentrated load P' at its free end as shown. What value...
Using moment area method, for the beam shown in Figure P-2 find deflection at the center (point C) and rotation under the concentrated load (point D). Also, find locat...
2 - Using moment area method, for the beam shown in Figure P-2 find deflection at the center (point C) and rotation under the concentrated load (point D). Also, find location and value of the maximunm deflection. EI constant. 3- Repeat Problem 2 where I for CB is twice as large as I for AC. 4 - For the beam shown in Figure P-3, find the reactions and draw shear and moment diagrams. A is fixed, B and D are hinges, and...
Q2 The simply supported beam of length L is subjected to a vertical point load P...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1, E. Self-weight of the beam is neglected. P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10]...
Q2 The simply supported beam of length L is subjected to a vertical point load P...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1,E. Self-weight of the beam is neglected P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10] (b)...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given beam. Give the required values for each diagram (load, shear, moment slope(EI) and deflection) shown in the problem statement (see the pdf). 3 w 1 DATASET: 1 -2. Length A Length B Point Load P Uniform Load w Modulus of Elasticity Moment of Inertia 9 FT 10 FT 13 KIPS 1 KLF 29000 KSI 600 IN 4 -A- B- -- A - Correct Answer...
Consider the beam ABC of length L[m] in Figure 1 below, with simple supports at both...
Consider the beam ABC of length L[m] in Figure 1 below, with simple supports at both ends. The beam supports a concentrated load P[N] at point B. You may assume the beam to be weightless in your analysis. P A B L/3 2L/3 Figure 1: Schematic of beam ABC. Part (a) [4 marks] Determine the vertical reaction forces at points A and C in terms of P. Part (b) [8 marks] Determine expressions (in terms of Pand L) for the...
A steel I-beam with a span of 20 feet will support both a concentrated load of...
A steel I-beam with a span of 20 feet will support both a concentrated load of 15 kips at the beam center and a uniformly distributed load of 2 kips/ft along the entire beam length. The steel beam is Grade 50 (Fy= 50,000 psi). i) Calculate for the lightest W-shape section that will safely carry the load, with the depth not to exceed 17 inches. Provide sketches. ii) The analysis is to include (a) bending strength, (b) shear strength, and...
The simply supported beam of length L is subjected to uniformly distributed load of w and...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
A steel beam is simply supported over a span of 20 feet and carries a total design point load of 6 kips at the center of the span. The moment of inertia (1) for the beam is 245 in4. Neglecting the beam weight, the maximum load deflection of the beam is with a point load in.(Fill in the blank and show calculation below) Show equation(s) used and calculation(s):
A steel beam is simply supported over a span of 20 feet...
Please use conjugate beam method
A beam is subjected to a single concentrated load of maganitude P. The beam span length is Land it is fixed at both ends and has a constant EI value. The concentrated load is applied at a distance of a" from the left support (Point A) and a distance "b" from the right support (Point B) Determine the reaction forces at both ends. Use the conjugate beam method to solve for the unknown reaction forces....
The
beam is loaded with 12 kips at point B. It is fixed at A and acted
upon by a concentrated load 'P' at its free end as shown. What
value of force 'P' (acting upwards) is required if the vertical
deflection at C is to be zero?
64. The beam is loaded with 12 kips at point B. It is fixed at A and acted upon by a concentrated load P' at its free end as shown. What value...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1, E. Self-weight of the beam is neglected. P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10]...
Q2 The simply supported beam of length L is subjected to a vertical point load P at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters P,L,1,E. Self-weight of the beam is neglected P L/2 L/2 Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram. [10] (b)...
16. Beam Deflection Using the method of progressive diagrams, find the centerline deflection for the given beam. Give the required values for each diagram (load, shear, moment slope(EI) and deflection) shown in the problem statement (see the pdf). 3 w 1 DATASET: 1 -2. Length A Length B Point Load P Uniform Load w Modulus of Elasticity Moment of Inertia 9 FT 10 FT 13 KIPS 1 KLF 29000 KSI 600 IN 4 -A- B- -- A - Correct Answer...
Consider the beam ABC of length L[m] in Figure 1 below, with simple supports at both ends. The beam supports a concentrated load P[N] at point B. You may assume the beam to be weightless in your analysis. P A B L/3 2L/3 Figure 1: Schematic of beam ABC. Part (a) [4 marks] Determine the vertical reaction forces at points A and C in terms of P. Part (b) [8 marks] Determine expressions (in terms of Pand L) for the...
A steel I-beam with a span of 20 feet will support both a concentrated load of 15 kips at the beam center and a uniformly distributed load of 2 kips/ft along the entire beam length. The steel beam is Grade 50 (Fy= 50,000 psi). i) Calculate for the lightest W-shape section that will safely carry the load, with the depth not to exceed 17 inches. Provide sketches. ii) The analysis is to include (a) bending strength, (b) shear strength, and...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
