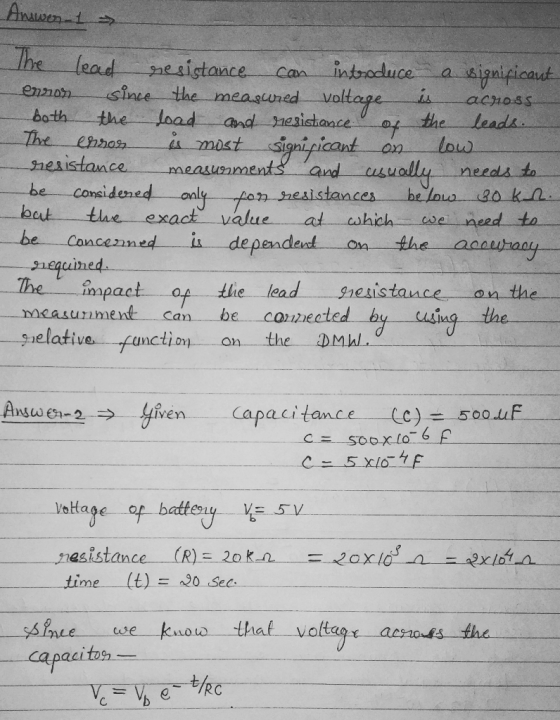

Why can the internal resistance of the DMM can be determined without taking into account the 100 Ω resistor? Could this be done for a resistor of any resistance value? Explain your answer.

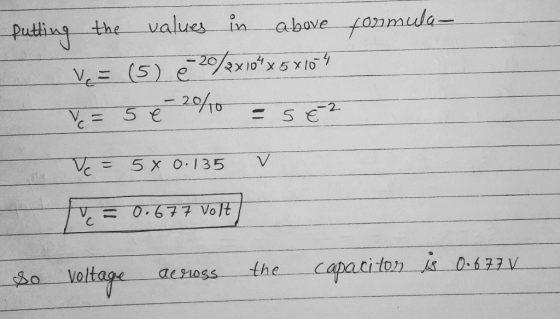

A 500 μF capacitor is wired in series with a 5 V battery and a 20 kΩ resistor. What is the voltage across the capacitor after 20 seconds of closing the circuit? Show all calculations in your answer.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Why can the internal resistance of the DMM can be determined without taking into account the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • To determine the internal resistance of a battery, a pair of students use a high-impedance DMM...

    To determine the internal resistance of a battery, a pair of students use a high-impedance DMM to measure the voltage across an external resistor (see figure). When Rext=240 kΩ, they measure 9 V but, when Rext=2 Ω, they measure 6.8 V. What is the internal resistance of the battery? FR

  • A 33 V battery of negligible internal resistance is connected to a 47 kΩ and a...

    A 33 V battery of negligible internal resistance is connected to a 47 kΩ and a 27 kΩ resistor in series. a)What reading will a voltmeter, of internal resistance 97 kΩ , give when used to measure the voltage across the first resistor? b)What is the percent inaccuracy due to meter resistance for each case? c)What reading will a voltmeter, of internal resistance 97 kΩ , give when used to measure the voltage across the second resistor? d)What is the...

  • (a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as show...

    (a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...

  • 1. Two 50 Ω resistors are in series in a circuit with a 10 V battery....

    1. Two 50 Ω resistors are in series in a circuit with a 10 V battery. The change in voltage, in the direction of the current, across either resistor is ___ V. Hint: Can you see why the voltage drop in the direction of the current is negative? 2. A 40 μF capacitor and a 80 μF capacitor are in series in a circuit with a 10 V battery. The voltage drop, in the direction of the current, across the...

  • A battery with E = 12.0 V and internal resistance r=1.2Ω is connected to two 8.5-kΩ...

    A battery with E = 12.0 V and internal resistance r=1.2Ω is connected to two 8.5-kΩ resistors in series. An ammeter of internal resistance 0.30 Ωmeasures the current, and at the same time a voltmeter with internal resistance 17 kΩ measures the voltage across one of the 8.5-kΩ resistors in the circuit. What does the ammeter read? What does the voltmeter read? What is the % "error" from the current without meters? What is the % "error" from the voltage...

  • 1)A battery having an e.m.f. of 105 V and an internal resistance of 1 Ω is...

    1)A battery having an e.m.f. of 105 V and an internal resistance of 1 Ω is connected in parallel with a d.c. generator of e.m.f. 110 V and internal resistance of 0.5 Ω to supply a load having a resistance of 8 Ω. Calculate: (a) the currents in the battery, the generator and the load; (b) the potential difference across the load. 1)b.Two batteries are connected in parallel. The e.m.f. and internal resistance of one battery are 120 V and...

  • A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ...

    A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ resistor and an emf source with E= 140 V negligible internal resistance. Just after the circuit is completed, what is the voltage drop across the capacitor? Just after the circuit is completed, what is the voltage drop across the resistor? Just after the circuit is completed, what is the charge on the capacitor? Just after the circuit is completed, what is the current through...

  • 1. Two 20 v batteries are in series, connected positive pole to negative pole. They each...

    1. Two 20 v batteries are in series, connected positive pole to negative pole. They each have internal resistance of 5 Ω. What power is dissipated in one of the batteries? 1). 80 watts. 2). 200 watts 3). 150 watts 4). 50 watts 2. A 12 μF capacitor is charged using a 7.0 v battery. The battery is then removed and a 1.5 MΩ resistor is connected to the capacitor. How many seconds pass before the voltage across the resistor...

  • A battery provides a voltage of 8.00 V and has unknown internal resistance Rint. When the...

    A battery provides a voltage of 8.00 V and has unknown internal resistance Rint. When the battery is connected across a resistor of resistance R1= 7.00 Ω , the current in the circuit is I1 = 1.00 A. If the external resistance is then changed to R2 = 5.00 Ω , what is the value of the current I2 in the circuit?

  • Calculate the terminal voltage for a battery with an internal resistance of 0.750 Ω and an...

    Calculate the terminal voltage for a battery with an internal resistance of 0.750 Ω and an emf of 7.00 V when the battery is connected in series with a 71.0-Ω resistor. Express your answer to three significant figures and include the appropriate units.
