The temperature outside your car’s windshield is -5 °C. Inside, the temperature is 22 °C. The windshield is made of a single pane of glass, which has a thermal conductivity of 0.80 J/(s m C°). The windshield has a length of 12 m, a height of 0.78 m, and a thickness of 2.2 mm. How much energy is conducted through the windshield in 30 minutes? What is the direction of the flow of energy through the windshield?

science physics

Answer 1

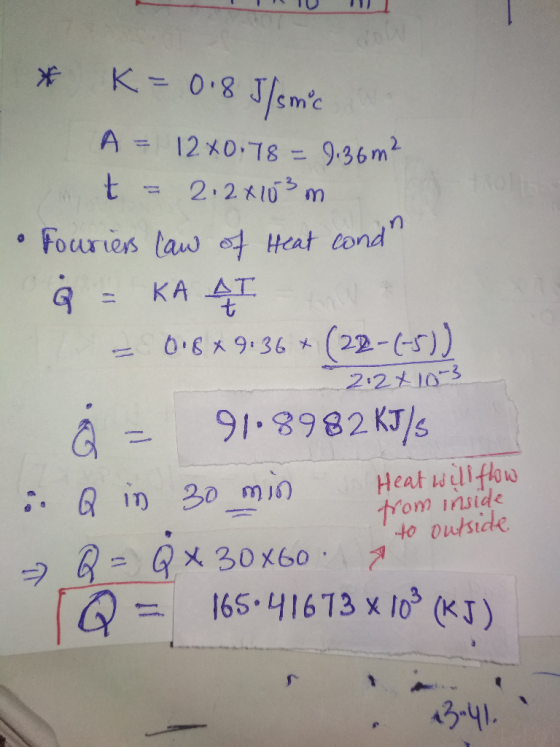

Answer #1

plz like

Answer 2
