Four polarizers are placed in succession with their axes vertical, at 30 degrees to the vertical,...

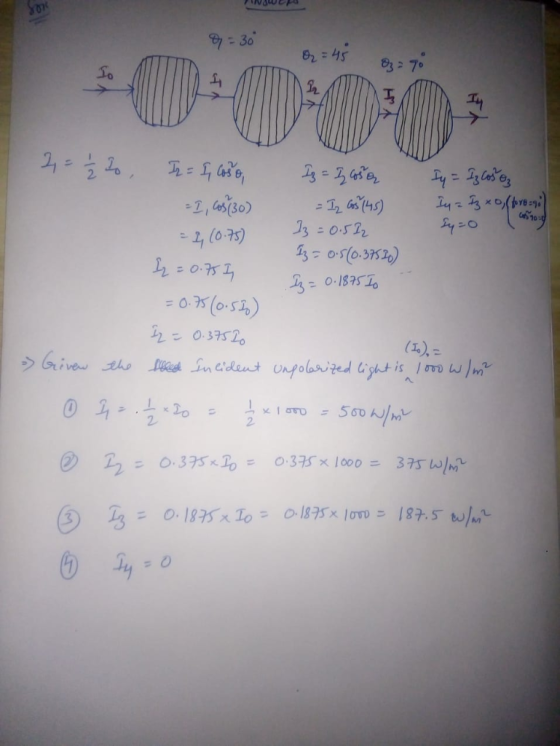

Four polarizers are placed in succession with their axes vertical, at 30 degrees to the vertical, at 45 degrees to the vertical, and at 90 degrees to the vertical. The incident unpolarized light is 1000W/m^2. Calculate the intensity of light after each polarizer. (There should be 4 answers)
Homework Answers
Add Answer to:
Four polarizers are placed in succession with their axes
vertical, at 30 degrees to the vertical,...
Four polarizers are placed in succession with their axes vertical, at 45° to the vertical, at 60.0° to the vertical, and...
Four polarizers are placed in succession with their axes vertical, at 45° to the vertical, at 60.0° to the vertical, and at 75° to the vertical. a. Calculate what fraction of the incident polarized light is transmitted by the four polarizers. b. Can the transmitted light be decreased by removing one of the polarizers? If so, which one? c. Can the transmitted light intensity be extinguished by removing polarizers? If so, which one(s)? Side note: I understand how to solve...
Four polarizers are placed in succession with their axes vertical, at 26.0 ∘ to the vertical,...
Four polarizers are placed in succession with their axes vertical, at 26.0 ∘ to the vertical, at 60.0∘ to the vertical, and at 90.0∘ to the vertical. 1. Calculate what fraction of the incident unpolarized light is transmitted by the four polarizers. 2.Can the transmitted light be decreased by removing one of the polarizers? If so, which one? Check all that apply. First (vertical) Second (26.0 ∘ to the vertical) Third (60.0∘ to the vertical) Forth (90.0∘ to the vertical)...
There are three polarizers: polarizer A has its transmission axis at 0 degrees relative to the...
There are three polarizers: polarizer A has its transmission axis at 0 degrees relative to the vertical; polarizer B has its transmission axis at 30 degrees to the vertical; and polarizer C has its transmission axis at 90 degrees to the vertical. If you arrange them as A, B, C and light incident on A is unpolarized and has an intensity of 100 W/m^2, what will be the intensity of the light coming out of C? (Hint: When unpolarized light...
Unpolarized light passes through two polarizers. The first polarizer is 55 degrees from vertical and the...
Unpolarized light passes through two polarizers. The first polarizer is 55 degrees from vertical and the second polarizer is 20 degrees from vertical. If the light leaves the second polarizer with 2.40 kw/m^2 what was the intensity of the light before the first polarizer
Unpolarized light with initial intensity of Io goes through two linear polarizers. The first polarizer has...
Unpolarized light with initial intensity of Io goes through two linear polarizers. The first polarizer has a transmission axis at an angle of 45 with respect to the vertical and the second polarizer has a transmission axis at an angle of 60 with respect to the vertical. 28) What is the final intensity of light? a) 0.500 Io b) 0.467 Io c) 0.250 Io d) 0.125 Io e) 0 29) If a third polarizer with a transmission axis at an...
what intensity of light emerges from the third polarizer? Suppose 3 polarizers have their transmission axes...
what intensity of light emerges
from the third polarizer?
Suppose 3 polarizers have their transmission axes oriented as follows the angle between polarizer 1 and 2 is 30 degree, and the angle between polarizers 2 and 3 is 60 degree If 10W/m2 of unpolarized light is incident on the first polarizer, what intensity of light emerges tom e polarizer?
3. Four polarizers are lined up in this order: horizontal (0°), 30°, 60°, and vertical (90°)....
3. Four polarizers are lined up in this order: horizontal (0°), 30°, 60°, and vertical (90°). 2000 mW/m2 of unpolarized light is incident on these 4 polarizers. A. What is the intensity of the light that emerges? B. If the middle two polarizers were removed and nothing else changed, how would your answer to part a) be different?
Problem 4: There are two polarizers oriented with their polarizing axes 40 and 60 degrees from...
Problem 4: There are two polarizers oriented with their polarizing axes 40 and 60 degrees from the horizontal. You run two different experiments sending light through the polarizers. In the first experiment unpolarized light is used and in the second experiment horizontally polarized light is used. If the intensity of light is the same before the first polarizer in both experiments, what do you expect the ratio of the intensities after the second polarizer to be? Assume the 40 degree...
Unpolarized light of intensity 200 W/m^2 falls on a stack of three polarizers. The first and...
Unpolarized light of intensity 200 W/m^2 falls on a stack of three polarizers. The first and last polarizers are held vertically, and the middle polarizer makes an angle of 45 degrees from the vertical. What is the intensity of light after the last polarizer?
A series of polarizers are each placed at a 12 ∘ interval from the previous polarizer....
A series of polarizers are each placed at a 12 ∘ interval from the previous polarizer. Unpolarized light is incident on this series of polarizers. How many polarizers does the light have to go through before it is below 110 of its original intensity?
what intensity of light emerges
from the third polarizer?
Suppose 3 polarizers have their transmission axes oriented as follows the angle between polarizer 1 and 2 is 30 degree, and the angle between polarizers 2 and 3 is 60 degree If 10W/m2 of unpolarized light is incident on the first polarizer, what intensity of light emerges tom e polarizer?
3. Four polarizers are lined up in this order: horizontal (0°), 30°, 60°, and vertical (90°). 2000 mW/m2 of unpolarized light is incident on these 4 polarizers. A. What is the intensity of the light that emerges? B. If the middle two polarizers were removed and nothing else changed, how would your answer to part a) be different?
