A small bead of mass m can slide without friction on a circular hoop that is...

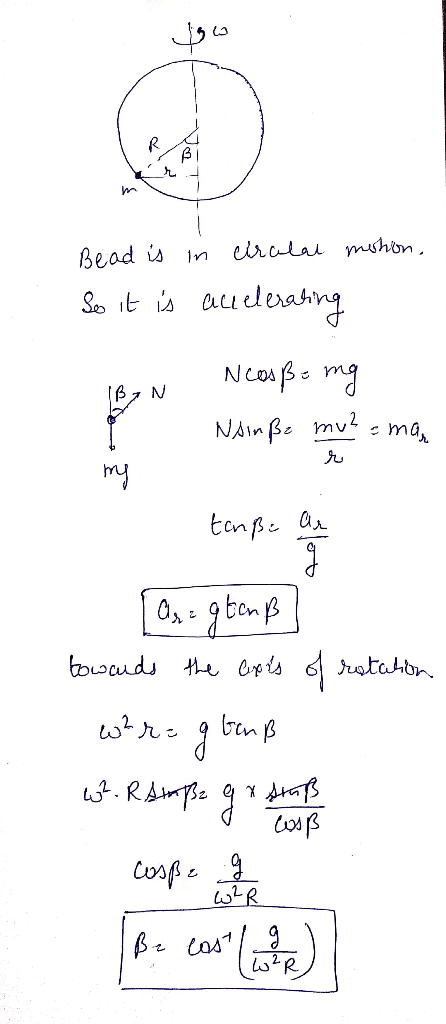

A small bead of mass m can slide without friction on a circular hoop that is in a vertical plane and has a radius R. The hoop rotates at a constant angular velocity ω about a vertical axis through the diameter of the hoop. Our goal is to find the angle β, as shown, such that the bead is in vertical equilibrium. We break the problem into several steps.
a) Assume the bead is in vertical equilibrium and does not slide along the hoop as the hoop rotates about the vertical axis. Why is the bead’s acceleration still nonzero? What is the magnitude and direction of this acceleration? Express your answer for the magnitude in terms of R, β, and ω.
b) Draw a free body diagram for the bead. Decompose any forces not already along the ˆi and ˆj axes into components along them.
c) Impose Newton’s 2nd Law and solve for β in terms of R, ω, and the acceleration due to gravity, g.
Homework Answers
