a bridge crossing a ravine has a mass of mb and length L. The bridge is...

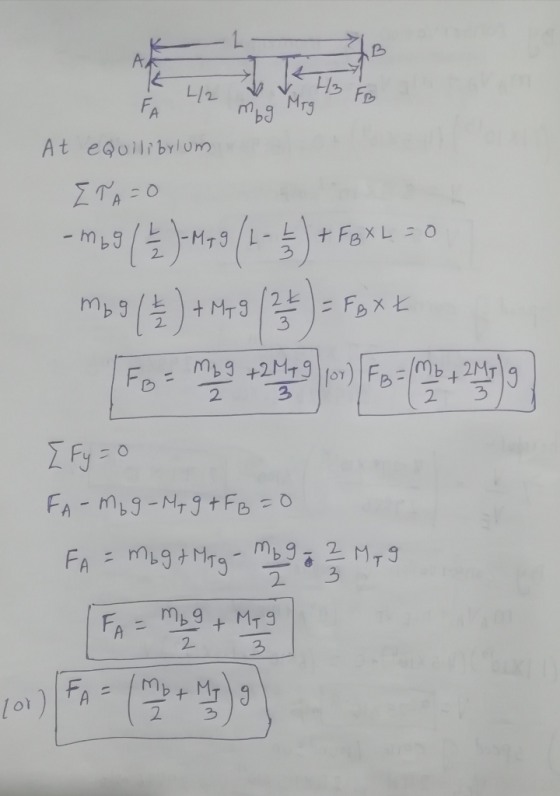

a bridge crossing a ravine has a mass of mb and length L. The bridge is supported by pilings at point a and b at the right and left ends . a truck of mass Mt stops at the point l/3 from point b. find the expressions for Fa and Fb, the forces supporting the bridge at bother ends.
Homework Answers
