A very long, hollow cylinder (radius 2.5cm) is formed by rolling up a thin sheet of...

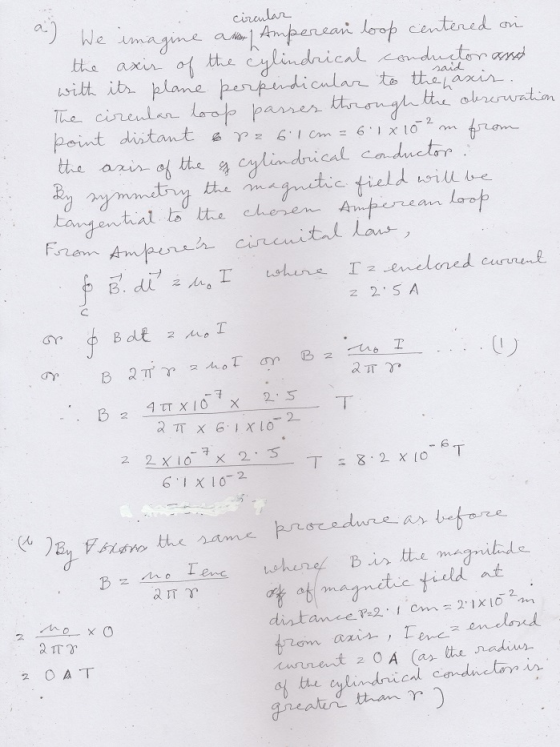

A very long, hollow cylinder (radius 2.5cm) is formed by rolling up a thin sheet of copper. Electric charges flow along the copper sheet parallel to the axis of the cylinder. The arrangement is, in effect, a hollow tube of current 2.5A. Use Ampère’s law to find the magnetic field (a) outside the cylinder at a distance 6.1cm from the axis and (b) inside the cylinder at a distance 2.1cm from the axis. (Hint: For closed paths, use circles perpendicular to and centered on the axis of the cylinder.)
Homework Answers
Add Answer to:
A very long, hollow cylinder (radius 2.5cm) is formed by rolling
up a thin sheet of...
A very long, hollow cylinder (radius 3.1cm) is formed by rolling up a thin sheet of...
A very long, hollow cylinder (radius 3.1cm) is formed by rolling up a thin sheet of copper. Electric charges flow along the copper sheet parallel to the axis of the cylinder. The arrangement is, in effect, a hollow tube of current 1.5A. Use Ampère’s law to find the magnetic field (a) outside the cylinder at a distance 4.2cm from the axis and (b) inside the cylinder at a distance 0.75cm from the axis. (Hint: For closed paths, use circles perpendicular...
Please help, I have tried the formula over and over and I just don't know if...
Please help, I have tried the formula over and over and I just
don't know if I am typing it in wrong or what. I know the formula
and everything but cannot get the correct answer.
Your answer is partially correct. A very long, hollow cylinder (radius 3.5cm) is formed by rolling up a thin sheet of copper. Electric charges flow along the copper sheet parallel to the axis of the cylinder. The arrangement is, in effect, a hollow tube...
A long, hollow cylinder with inner radius R1 and outer radius R2 carries current along its...
A long, hollow cylinder with inner radius R1 and outer radius R2 carries current along its length. The current is uniformly distributed over the cross-sectional area of the cylinder and has current density J. 1. Find the magnetic-field magnitude B as a function of the distance r from the conductor axis for points inside the hollow interior (r<R1). Express your answer in terms of the variables R1, R2, J, and r. 2. Find the magnetic-field magnitude B as a function...
A coaxial cable is formed by a long, straight wire and a hollow conducting cylinder with...
A coaxial cable is formed by a long, straight wire and a hollow conducting cylinder with axes that coincide. The wire has charge per unit length λ = 7λ0, and the hollow cylinder has net charge per unit length λ = 6λ0. Use Gauss's law to answer these questions: What are the charges per unit length on the following surfaces of the hollow cylinder? (a) the inner surface (Use the following as necessary: λ0.) λinner = (b) the outer...
Constants Part A You are given a hollow copper cylinder with inner radius a and outer...
Constants Part A You are given a hollow copper cylinder with inner radius a and outer radius 3a. The cylinder's length is 200a and its electrical resistance to current flowing down its length is R. To test its suitability for use in a circuit, you connect the ends of the cylinder to a voltage source, causing a current I to flow down the length of the cylinder. The current is spread uniformly over the cylinder's cross section You are interested...
5. An infinitely long cylinder of radius R carries a frozen-in" magietization parallel to z-axis and...
5. An infinitely long cylinder of radius R carries a frozen-in" magietization parallel to z-axis and is given by M = ksi, where k is a constant and s is the distance from the axis. There is no free current anywhere. Find the magnetic field inside and outside the cylinder.
#6) (25 pts total) An infinitely long cylinder of radius R carries a “frozen-in” magnetization parallel...
#6) (25 pts total) An infinitely long cylinder of radius R carries a “frozen-in” magnetization parallel to the axis M = kpa, where k is a constant and pis the distance from the axis. (a) (12 pts) Calculate all the bound currents. (b) (13 pts) Find the magnetic field, B, inside and outside of the cylinder. (This is for cylindrical coordinates where "s" is the same as “p”)
(1) Consider a very long uniformly charged cylinder with volume charge density p and radius R...
(1) Consider a very long uniformly charged cylinder with volume charge density p and radius R (we can consider the cylinder as infinitely long). Use Gauss's law to find the electric field produced inside and outside the cylinder. Check that the electric field that you calculate inside and outside the cylinder takes the same value at a distance R from the symmetry axis of the cylinder (on the surface of the cylinder) .
Suppose that you have a very long cylinder (treat it as infinitely long) with a uniform...
Suppose that you have a very long cylinder (treat it as infinitely long) with a uniform charge density p (coulombs per cubic metre). The cylinder has a radius a. Let the axis of the cylinder be the 2- axis. The cylinder is rotating about this axis with a constant angular speed w in a counterclockwise direction. @=w2 a. [5 points] What is the current density ✓ at a general point in the cylinder, at a distance r from the ĉ-axis,...
3) Didn't I just ask this? A long circular cylinder of radius R carries a magnetization...
3) Didn't I just ask this? A long circular cylinder of radius R carries a magnetization M ksp, where k is a constant, s is the distance from the axis, and ф is the azimuthal unit vector. a) Use ф H- dl = hemet to determine the auxiliary field (H field) both inside and outside of the cylinder b) use H = (110)2-M to determine the magnetic field (B-field) both inside and outside of the cylinder
Please help, I have tried the formula over and over and I just
don't know if I am typing it in wrong or what. I know the formula
and everything but cannot get the correct answer.
Your answer is partially correct. A very long, hollow cylinder (radius 3.5cm) is formed by rolling up a thin sheet of copper. Electric charges flow along the copper sheet parallel to the axis of the cylinder. The arrangement is, in effect, a hollow tube...
Constants Part A You are given a hollow copper cylinder with inner radius a and outer radius 3a. The cylinder's length is 200a and its electrical resistance to current flowing down its length is R. To test its suitability for use in a circuit, you connect the ends of the cylinder to a voltage source, causing a current I to flow down the length of the cylinder. The current is spread uniformly over the cylinder's cross section You are interested...
5. An infinitely long cylinder of radius R carries a frozen-in" magietization parallel to z-axis and is given by M = ksi, where k is a constant and s is the distance from the axis. There is no free current anywhere. Find the magnetic field inside and outside the cylinder.
#6) (25 pts total) An infinitely long cylinder of radius R carries a “frozen-in” magnetization parallel to the axis M = kpa, where k is a constant and pis the distance from the axis. (a) (12 pts) Calculate all the bound currents. (b) (13 pts) Find the magnetic field, B, inside and outside of the cylinder. (This is for cylindrical coordinates where "s" is the same as “p”)
Suppose that you have a very long cylinder (treat it as infinitely long) with a uniform charge density p (coulombs per cubic metre). The cylinder has a radius a. Let the axis of the cylinder be the 2- axis. The cylinder is rotating about this axis with a constant angular speed w in a counterclockwise direction. @=w2 a. [5 points] What is the current density ✓ at a general point in the cylinder, at a distance r from the ĉ-axis,...
3) Didn't I just ask this? A long circular cylinder of radius R carries a magnetization M ksp, where k is a constant, s is the distance from the axis, and ф is the azimuthal unit vector. a) Use ф H- dl = hemet to determine the auxiliary field (H field) both inside and outside of the cylinder b) use H = (110)2-M to determine the magnetic field (B-field) both inside and outside of the cylinder
