A 2.5 g wire has a density of 15.4 g/cm3 and a resistivity of 1.22 ×...
A 2.5 g wire has a density of 15.4 g/cm3 and a resistivity of 1.22 × 10−7 Ω · m . The wire has a resistance of 106 Ω . How long is the wire? Answer in units of m.

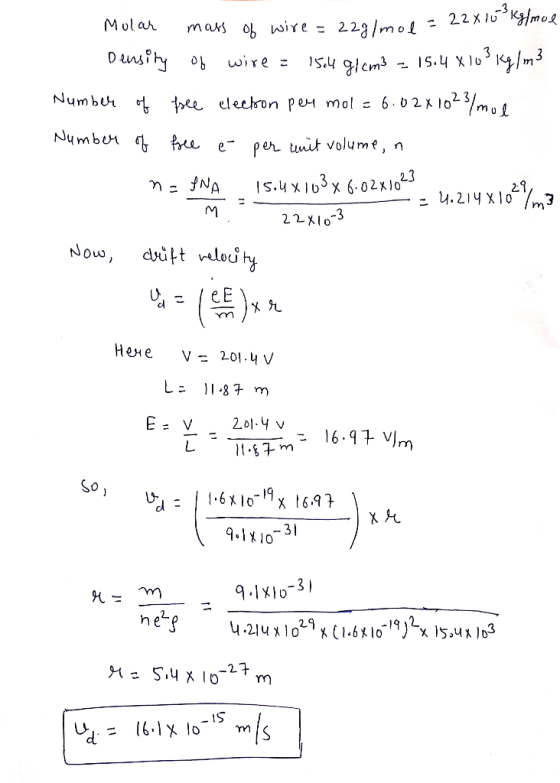

The wire is made up of atoms with molecular mass 22 g/mol. What is the drift speed of the electrons when there is a voltage drop of 201.4 V across the wire? Assume there is one conduction electron per atom. The fundamental charge is 1.602 × 10−19 C. Answer in units of m/s.
I correctly solved for the length (L=11.87m). Need help with finding drift speed.
Homework Answers
Add Answer to:
A 2.5 g wire has a density of 15.4 g/cm3 and a resistivity of
1.22 ×...
Please answer this question: An aluminum wire having a cross-sectional area of 2.10 ✕ 10−6 m2...
Please answer this question:
An aluminum wire having a cross-sectional area of 2.10 ✕
10−6 m2 carries a current of 6.00 A. The
density of aluminum is 2.70 g/cm3. Assume each aluminum
atom supplies one conduction electron per atom. Find the drift
speed of the electrons in the wire.
Please answer correctly!!!! Thank you so much in advance!
Safari File Edit View History Bookmarks Window Help 恸 令49%DEE1 Mon 3:12:37 PM 6.585*10*-5 X Your response is off by a multiple...
13. The resistivity of aluminum at 25 'C has been measured to be 2.72 x 10-8 0 m. The thermal coefficient of resistivity of aluminum at 0 C is 4.29 x 10-3 K-1. Aluminum has a valency of 3, a d...
13. The resistivity of aluminum at 25 'C has been measured to be 2.72 x 10-8 0 m. The thermal coefficient of resistivity of aluminum at 0 C is 4.29 x 10-3 K-1. Aluminum has a valency of 3, a density of 2.70 g cm3, and an atomic mass of 27 a. Calculate the resistivity of aluminum at-40°С. (Ans: 2.03 x 103 Ω m) b. What is the thermal coefficient of resistivity at-40'C? (Ans: 5.23x 103K c. Estimate the mean...
all of 8 please. 8. An aluminum wire carrying a current of 5 A has a...
all of 8 please.
8. An aluminum wire carrying a current of 5 A has a cross sectional area of 4 x 10'6 m2. Find the drift speed of the electrons in the wire. The density of aluminum is 2.7 g/cm3. (Assume three electrons are supplied by each atom). a) Recall the mass flow rate equation from semester 1. Rms Ro v b) Write the equivalent current relation for charges in a wire, I- c) What is the electrical analogy...
aluminu wire having a cross-sectional area equal to5.50xm2 carries a current of 5.50 A. The density...
aluminu wire having a cross-sectional area equal to5.50xm2 carries a current of 5.50 A. The density of alurninurn is 2.70 g/cm3. Assurme each alurminurm etorn supplies one conduction electron per atom. Find the drift speed of the electrons in the wire. Need Help? Read
1. An aluminum wire having a cross-sectional area equal to 3.50 10-6 m2 carries a current...
1. An aluminum wire having a cross-sectional area equal to 3.50 10-6 m2 carries a current of 6.50 A. The density of aluminum is 2.70 g/cm3. Assume each aluminum atom supplies one conduction electron per atom. Find the drift speed of the electrons in the wire. 0.000193452 Incorrect: Your answer is incorrect. The equation for the drift velocity includes the number of charge carriers per volume, which in this case is equal to the number of atoms per volume. How...
7. Two light bulbs with ratings of 40 W and 100 W are plugged into sockets...
7. Two light bulbs with ratings of 40 W and 100 W are plugged into sockets supplying 110 V. A) Calculate the resistance of each. Which has more resistance? The more resistance. (Notice that voltage is fixed) W bulb has B) If the 100 W bulb is operated continuously for 2 full days and electric energy costs $0.12 per kWh, how much does it cost? Convert W to kW multiply by the number of hours to get kW.h multiply by...
An iron wire has a cross-sectional area of 7.50 ✕ 10−6 m2. Carry out steps (a)...
An iron wire has a cross-sectional area of 7.50 ✕ 10−6 m2. Carry out steps (a) through (e) to compute the drift speed of the conduction electrons in the wire. (a) How many kilograms are there in 1 mole of iron? kg/mol (b) Starting with the density of iron and the result of part (a), compute the molar density of iron (the number of moles of iron per cubic meter). mol/m3 (c) Calculate the number density of iron atoms using...
ke=8.99XIU' N.1 Problem 4 A copper wire has a circular cross section with a diameter of...
ke=8.99XIU' N.1 Problem 4 A copper wire has a circular cross section with a diameter of 1.25 mm. (i) If the wire carries a current of 2A, find the drift speed of electrons in this wire. (ii) All other things being equal, what happens to the drift speed if the wire is made of a different metal, having a larger number of conduction electrons than copper? M=0.063 kg/mol; p=8.9 g/cm3. Problem 5 A proton moves perpendicular to a uniform magnetic...
An aluminum wire with a diameter of 0.115 mm has a uniform electric field of 0.235...
An aluminum wire with a diameter of 0.115 mm has a uniform electric field of 0.235 V/m imposed along its entire length. The temperature of the wire is 45.0°C. Assume one free electron per atom. (a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity (in Ω · m) of aluminum at this temperature. ρ = Ω · m (b) What is the current density (in MA/m2) in the wire? J = MA/m2 (c) What is...
An iron wire has a cross-sectional area of 5.80 ✕ 10−6 m2. Carry out steps (a) through (e) to compute the drift speed of...
An iron wire has a cross-sectional area of 5.80 ✕ 10−6 m2. Carry out steps (a) through (e) to compute the drift speed of the conduction electrons in the wire. (a) How many kilograms are there in 1 mole of iron? kg/mol (b) Starting with the density of iron and the result of part (a), compute the molar density of iron (the number of moles of iron per cubic meter). mol/m3 (c) Calculate the number density of iron atoms using...
Please answer this question:
An aluminum wire having a cross-sectional area of 2.10 ✕
10−6 m2 carries a current of 6.00 A. The
density of aluminum is 2.70 g/cm3. Assume each aluminum
atom supplies one conduction electron per atom. Find the drift
speed of the electrons in the wire.
Please answer correctly!!!! Thank you so much in advance!
Safari File Edit View History Bookmarks Window Help 恸 令49%DEE1 Mon 3:12:37 PM 6.585*10*-5 X Your response is off by a multiple...
13. The resistivity of aluminum at 25 'C has been measured to be 2.72 x 10-8 0 m. The thermal coefficient of resistivity of aluminum at 0 C is 4.29 x 10-3 K-1. Aluminum has a valency of 3, a density of 2.70 g cm3, and an atomic mass of 27 a. Calculate the resistivity of aluminum at-40°С. (Ans: 2.03 x 103 Ω m) b. What is the thermal coefficient of resistivity at-40'C? (Ans: 5.23x 103K c. Estimate the mean...
all of 8 please.
8. An aluminum wire carrying a current of 5 A has a cross sectional area of 4 x 10'6 m2. Find the drift speed of the electrons in the wire. The density of aluminum is 2.7 g/cm3. (Assume three electrons are supplied by each atom). a) Recall the mass flow rate equation from semester 1. Rms Ro v b) Write the equivalent current relation for charges in a wire, I- c) What is the electrical analogy...
aluminu wire having a cross-sectional area equal to5.50xm2 carries a current of 5.50 A. The density of alurninurn is 2.70 g/cm3. Assurme each alurminurm etorn supplies one conduction electron per atom. Find the drift speed of the electrons in the wire. Need Help? Read
7. Two light bulbs with ratings of 40 W and 100 W are plugged into sockets supplying 110 V. A) Calculate the resistance of each. Which has more resistance? The more resistance. (Notice that voltage is fixed) W bulb has B) If the 100 W bulb is operated continuously for 2 full days and electric energy costs $0.12 per kWh, how much does it cost? Convert W to kW multiply by the number of hours to get kW.h multiply by...
ke=8.99XIU' N.1 Problem 4 A copper wire has a circular cross section with a diameter of 1.25 mm. (i) If the wire carries a current of 2A, find the drift speed of electrons in this wire. (ii) All other things being equal, what happens to the drift speed if the wire is made of a different metal, having a larger number of conduction electrons than copper? M=0.063 kg/mol; p=8.9 g/cm3. Problem 5 A proton moves perpendicular to a uniform magnetic...
