we did Mirror lab in class and i have the following Questions. 1-explain how virtual images...
we did Mirror lab in class and i have the following Questions.

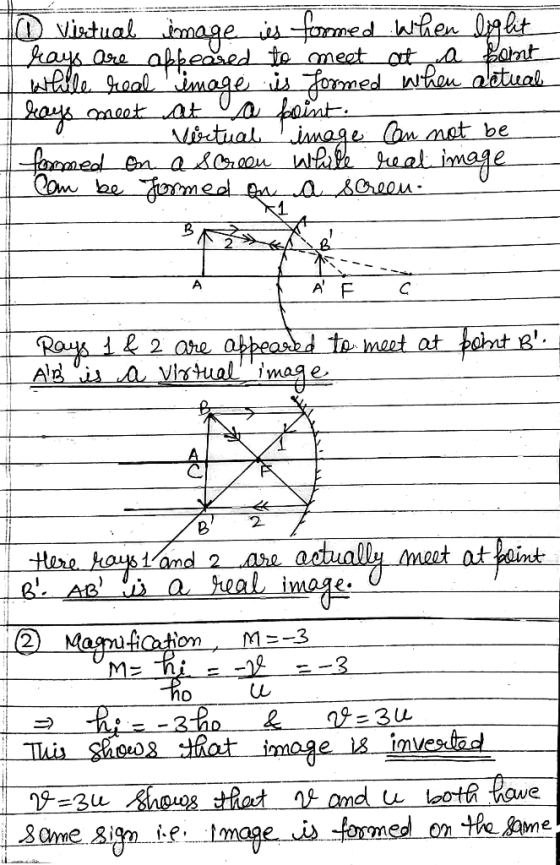

1-explain how virtual images differ from real images. Draw a scenario showing the difference.
2- A spherical mirror produces an image with a magnification of -3. Is this image real or virtual ? Is this image inverted or upright? Is this mirror concave or convex? Explain all your answers.

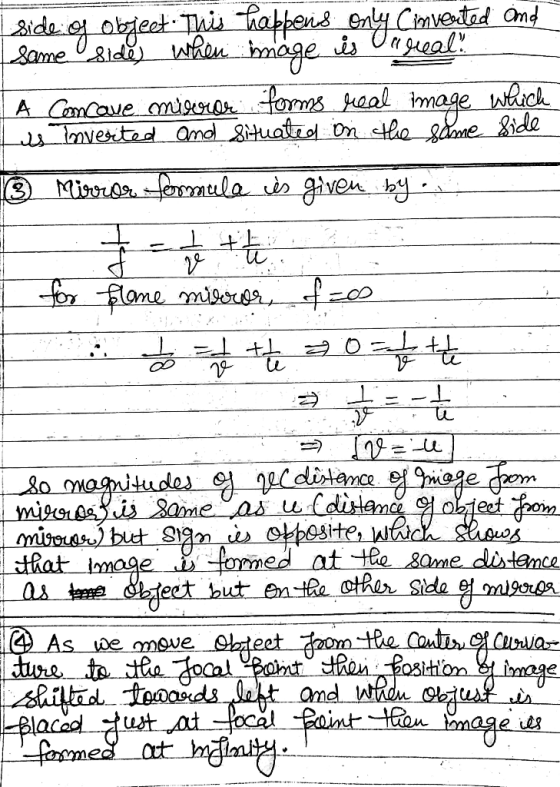

3- use mirror equations to show that for a plane mirror the image distance is equal to the object distance, and the image height is equal to the object height. Also show the image is virtual and upright.
4- explain what happens to the image of an object if we move the object from the center of curvature of the mirror to the focal point.Explain what the image does and how it changes as the object passes through this region.
Homework Answers
Add Answer to:
we did Mirror lab in class and i have the following
Questions.
1-explain how virtual images...
Show your works and units for full credits 1. (a) A concave mirror has a radius...
Show your works and units for full credits 1. (a) A concave mirror has a radius of curvature of magnitude 40. cm. The object is 80. cm in front of the mirror. Find the image distance and the magnification. Is the image real or virtual? Is the image upright or inverted? M 1. (b) A concave mirror has a radius of curvature of magnitude 40. cm. The object is 25 cm in front of the mirror. Find the image distance...
Physics concept maps concave mirror: make a concept map linking the following phrases:
physics concept maps concave mirror: make a concept map linking
the following phrases:
spherical concave mirror image reduced the point of intersection of the extended reflected rays distance between image and mirror in size real image radius of curvature of the mirror m-h_i/h_o virtual image image f-r/2 magnified height of object the point of intersection of the reflected rays focal length of the mirror in front of the mirror (reflecting side) behind the mirror (non-reflecting side) image distance between d...
The magnitude of the radius of curvature of a concave spherical mirror is 34.0 cm. a....
The magnitude of the radius of curvature of a concave spherical mirror is 34.0 cm. a. What are the location and magnification of the image of an object placed 60.0 cm in front of the mirror? Is this image real or virtual? Is it upright or inverted? b. What are the location and magnification of the image of an object placed 34.0 cm in front of the mirror? Is this image real or virtual? Is it upright or inverted?
A concave spherical mirror has a radius of curvature of 22 cm. Locate the images for...
A concave spherical mirror has a radius of curvature of 22 cm. Locate the images for object distances as given below. In each case, state whether the image is real or virtual and upright or inverted, and find the magnification. (If an answer does not exist, enter DNE. If an answer is infinity, enter INFINITY.) (a) p=11 cm image distance image orientation -Select- magnification 7 x cm DNE (b) p- 22 cm image distance image orientation magnification 22 cm real...
A concave spherical mirror has a radius of curvature of magnitude 19.6 cm. (a) Find the...
A concave spherical mirror has a radius of curvature of magnitude 19.6 cm. (a) Find the location of the image for the following object distances. (If there is no image formed enter "NONE".) object distance (cm) image distance (cm) location 40.2 ---Select--- in front of the mirror or behind the mirror or There is no image formed. 19.6 ---Select--- in front of the mirror or behind the mirror or There is no image formed. 9.8 ---Select--- in front of the...
An object is placed 56.0 cm from a concave spherical mirror with focal length of magnitude...
An object is placed 56.0 cm from a concave spherical mirror with focal length of magnitude 16.5 cm. (a) Find the location of the image. cm in front of the mirror (b) What is the magnification of the image? (c) Is the image real or virtual? real virtual (d) Is the image upright or inverted? upright inverted
Assume a certain convex, spherical mirror has a focal length of 10.0 cm. Locate the image...
Assume a certain convex, spherical mirror has a focal length of 10.0 cm. Locate the image and find the magnification for an object distance of 30.0 cm? Is the image real or virtual, inverted or upright, and larger or smaller?
The radius of curvature of a spherical convex mirror is 20 cm. Describe the image formed...
The radius of curvature of a spherical convex mirror is 20 cm. Describe the image formed when a 25-cm-tall object is positioned at the the following distances. For each case, provide the image distance, the image height, the type of image (real or virtual), and the orientation of the image (upright or inverted) (a) 5 cm from the mirror dI = ______ cm hI = ______ cm The image is virtual and inverted? The image is virtual and upright? The...
An object is placed 59.5 cm from a concave spherical mirror with focal length of magnitude...
An object is placed 59.5 cm from a concave spherical mirror with focal length of magnitude 21.5 cm. (a) Find the location of the image. -33.66 x cm in front of the mirror (b) What is the magnification of the image? 5657 X (C) Is the image real or virtual? real virtual (d) Is the image upright or inverted? upright inverted
An object is placed 48.0 cm from a concave spherical mirror with focal length of magnitude...
An object is placed 48.0 cm from a concave spherical mirror with focal length of magnitude 18.5 cm. (a) Find the location of the image. cm in front of the mirror (b) What is the magnification of the image? (c) Is the image real or virtual? Oreal virtual (d) Is the image upright or inverted? upright O inverted
Show your works and units for full credits 1. (a) A concave mirror has a radius of curvature of magnitude 40. cm. The object is 80. cm in front of the mirror. Find the image distance and the magnification. Is the image real or virtual? Is the image upright or inverted? M 1. (b) A concave mirror has a radius of curvature of magnitude 40. cm. The object is 25 cm in front of the mirror. Find the image distance...
physics concept maps concave mirror: make a concept map linking
the following phrases:
spherical concave mirror image reduced the point of intersection of the extended reflected rays distance between image and mirror in size real image radius of curvature of the mirror m-h_i/h_o virtual image image f-r/2 magnified height of object the point of intersection of the reflected rays focal length of the mirror in front of the mirror (reflecting side) behind the mirror (non-reflecting side) image distance between d...
A concave spherical mirror has a radius of curvature of 22 cm. Locate the images for object distances as given below. In each case, state whether the image is real or virtual and upright or inverted, and find the magnification. (If an answer does not exist, enter DNE. If an answer is infinity, enter INFINITY.) (a) p=11 cm image distance image orientation -Select- magnification 7 x cm DNE (b) p- 22 cm image distance image orientation magnification 22 cm real...
An object is placed 59.5 cm from a concave spherical mirror with focal length of magnitude 21.5 cm. (a) Find the location of the image. -33.66 x cm in front of the mirror (b) What is the magnification of the image? 5657 X (C) Is the image real or virtual? real virtual (d) Is the image upright or inverted? upright inverted
An object is placed 48.0 cm from a concave spherical mirror with focal length of magnitude 18.5 cm. (a) Find the location of the image. cm in front of the mirror (b) What is the magnification of the image? (c) Is the image real or virtual? Oreal virtual (d) Is the image upright or inverted? upright O inverted
