The two most prominent wavelengths in the light emitted by a helium discharge lamp are 686.7...

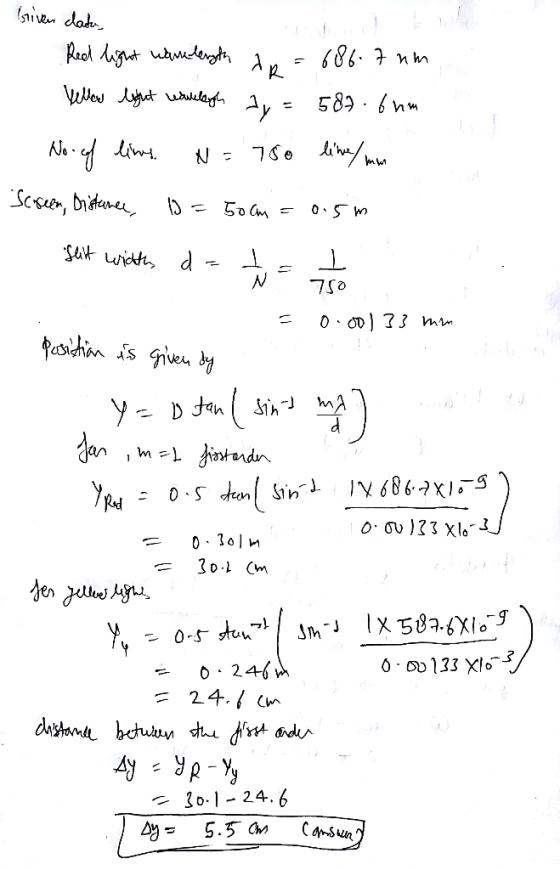

The two most prominent wavelengths in the light emitted by a helium discharge lamp are 686.7 nm (red) and 587.6 nm (yellow). Light from a helium lamp illuminates a diffraction grating with 750 lines/mm, and the light is observed on a screen 50 cm behind the grating. What is the distance between the first-order red and yellow fringes? Express your answer in cm.
Homework Answers
Add Answer to:
The two most prominent wavelengths in the light emitted by a
helium discharge lamp are 686.7...
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656...
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656 nm(red) and 486 nm (blue). Light from a hydrogen lamp illuminates a diffraction grating with 500 lines per mm, and the light is observed on a screen 1.50 m behind the grating. What is the order between the first-ordered red and blue fringes? (Express your answer in centimeters).
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656...
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656 nmnm (red) and 486 nmnm (blue). Light from a hydrogen lamp illuminates a diffraction grating with 520 lines/mmlines/mm , and the light is observed on a screen 1.7 mm behind the grating. What is the distance between the first-order red and blue fringes?
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656...
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656 nm (red) and 486 nm (blue). Light from a hydrogen lamp illuminates a diffraction grating with 540 lines/mm , and the light is observed on a screen 1.7 m behind the grating.
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656 nm (red) and 486 nm (blue)
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656 nm (red) and 486 nm (blue). Light from a hydrogen lamp illuminates a diffraction grating with 550 lines / mm, and the light is observed on a screen 1.2 m behind the grating.You may want to review (Page 940).For general problem-solving tips and strategies for this topic, you may want to view a Video Tutor Solution of Diffraction grating.Part AWhat is the distance between...
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656...
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656 nm (red) and 486 nm (blue) Light from a hydrogen lamp illuminates a diffraction grating with 550 lines/mm, and the light is observed on a screen 1.4 m behind the grating Part A You may want to review (Page 940) For general problem-solving tips and strategies for this topic, you may want to view a Video Tutor Solution of Diffraction grating. What is the...
The to most prominent wavelength in the light emitted by a hydrogen discharge lamp are 656...
The to most prominent wavelength in the light emitted by a hydrogen discharge lamp are 656 run (red) and 406 (blue). Light from a hydrogen lamp illuminates a diffraction grating with 500 lines/mm, and the light it observed on a screen 1.5 m behind the grading. What is the distance between the first - order read and blue fringes?
Constants I Periodic Table Helium atoms emit light at several wavelengths. Light from a helium lamp...
Constants I Periodic Table Helium atoms emit light at several wavelengths. Light from a helium lamp illuminates a diffraction grating and is observed on a screen 50.00 cm behind the grating. The emission at wavelength 501.5 nm creates a first-order bright fringe 21.90 cm from the central maximum. We were unable to transcribe this image
ADDITIONAL PROBLEMS Question 24.3a: Light from a sodium lamp at wavelengths 589.0 nm and 589.6 nm...
ADDITIONAL PROBLEMS Question 24.3a: Light from a sodium lamp at wavelengths 589.0 nm and 589.6 nm illuminates a diffraction grating with 3.500 x 102 lines/mm. The diffraction pattern is observed on a wall 3.600 m beyond the grating. Determine the separation between the two bright fringes, one bright fringe for each wavelength, corresponding to m = +4. 0.3024 x cm
1. A Helium discharge lamp gives off two wavelengths 651 nm and 484 nm. The diffraction...
1. A Helium discharge lamp gives off two wavelengths 651 nm and 484 nm. The diffraction grating has 406 lines/mm that is observered on a screen that is 1.20 m away. What is the distance between the first order fringes of the two different wavelengths? 1.88 m 0.0884 m 1.18 m 4.94×10-10 m 2. An object is 17.0 cm from a converging lens and the object is 0.600 cm tall. What is the position and height of the image if...
Light from a sodium lamp (lambda = 589 nm) illuminates a narrow slit and is observed...
Light from a sodium lamp (lambda = 589 nm) illuminates a narrow slit and is observed on a screen 77.0 cm behind the slit. The distance between the first and third dark fringes is 2.50 mm What is the width (in mm) of the slit?
The two most prominent wavelengths in the light emitted by a hydrogen discharge lamp are 656 nm (red) and 486 nm (blue) Light from a hydrogen lamp illuminates a diffraction grating with 550 lines/mm, and the light is observed on a screen 1.4 m behind the grating Part A You may want to review (Page 940) For general problem-solving tips and strategies for this topic, you may want to view a Video Tutor Solution of Diffraction grating. What is the...
The to most prominent wavelength in the light emitted by a hydrogen discharge lamp are 656 run (red) and 406 (blue). Light from a hydrogen lamp illuminates a diffraction grating with 500 lines/mm, and the light it observed on a screen 1.5 m behind the grading. What is the distance between the first - order read and blue fringes?
Constants I Periodic Table Helium atoms emit light at several wavelengths. Light from a helium lamp illuminates a diffraction grating and is observed on a screen 50.00 cm behind the grating. The emission at wavelength 501.5 nm creates a first-order bright fringe 21.90 cm from the central maximum. We were unable to transcribe this image
ADDITIONAL PROBLEMS Question 24.3a: Light from a sodium lamp at wavelengths 589.0 nm and 589.6 nm illuminates a diffraction grating with 3.500 x 102 lines/mm. The diffraction pattern is observed on a wall 3.600 m beyond the grating. Determine the separation between the two bright fringes, one bright fringe for each wavelength, corresponding to m = +4. 0.3024 x cm
Light from a sodium lamp (lambda = 589 nm) illuminates a narrow slit and is observed on a screen 77.0 cm behind the slit. The distance between the first and third dark fringes is 2.50 mm What is the width (in mm) of the slit?
