Below are hydraulic elements used in water systems (plants and pipes). Define them and know the function of each and where and why are they used.

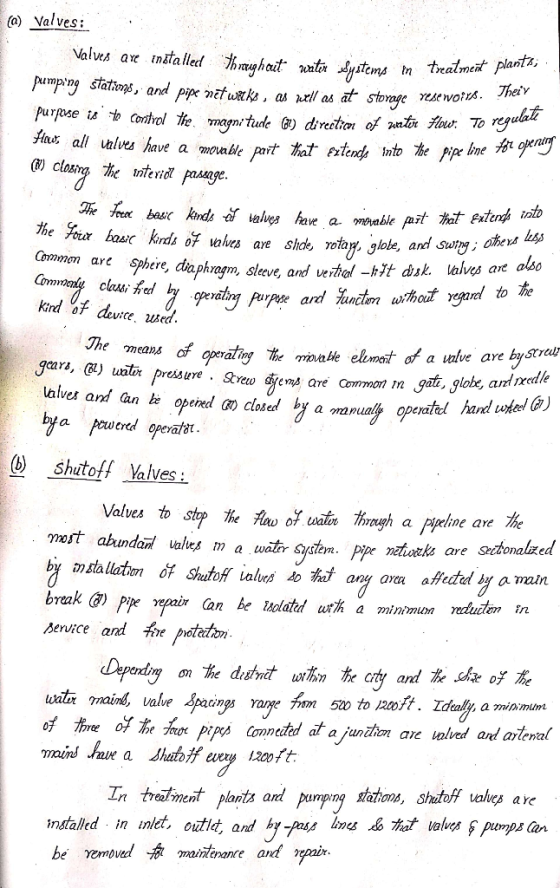

a. Values

b. Shutoff valves

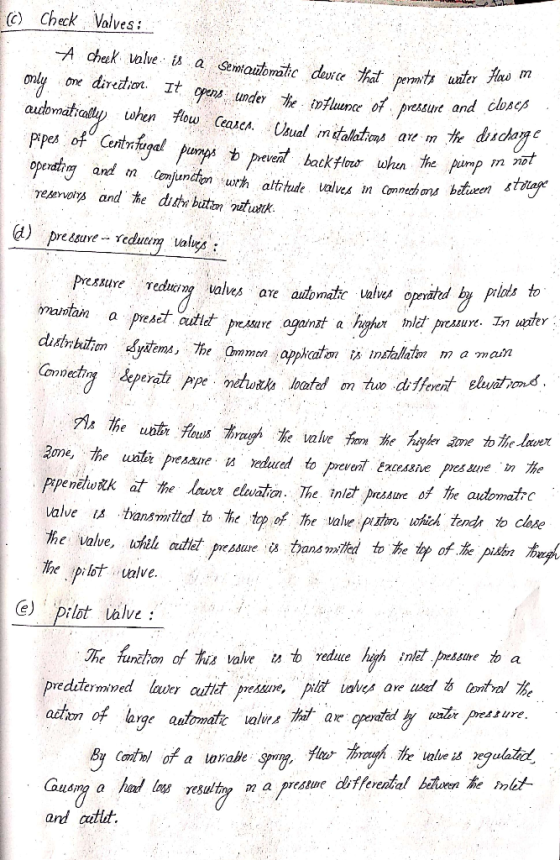

c. Check valves

d. Pressure reducing valves

e. Pilot valves

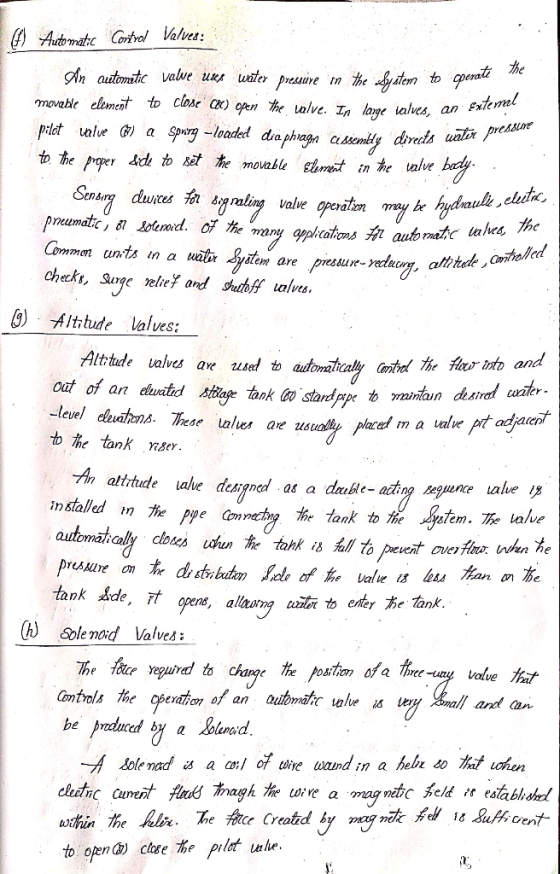

f. Automatic Control valves

g. Altitude valves

h. Solenoid valves

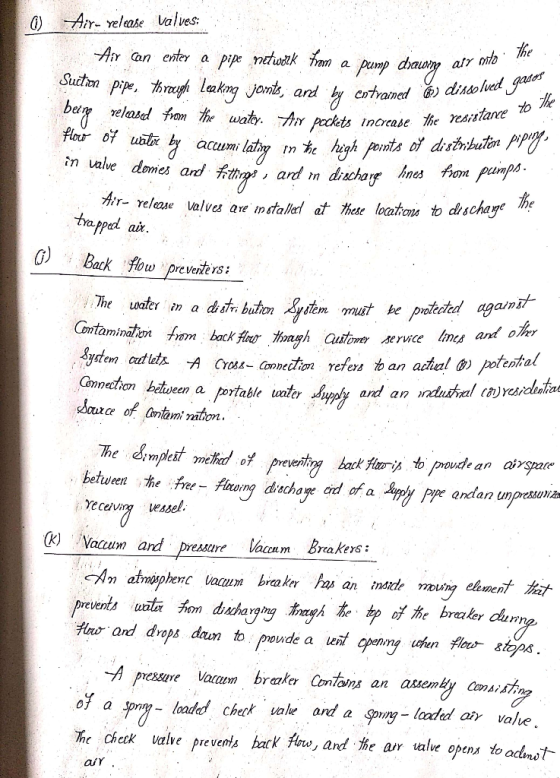

i. Air Release Valves

j. Backflow preventer

k. Vacuum and pressure vacuum breaker

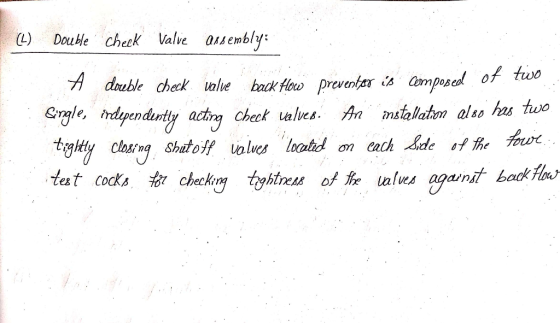

l. Double check valves assembly

engineering Civil-Engineering

Answer 1

Answer #1
