A 9.00-Ω resistor and a 3.00-Ω resistor are connected in parallel across a 9.00-V battery. Find...

A 9.00-Ω resistor and a 3.00-Ω resistor are connected in parallel across a 9.00-V battery. Find (a) the current through, and (b) the voltage drop across, each resistor.

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

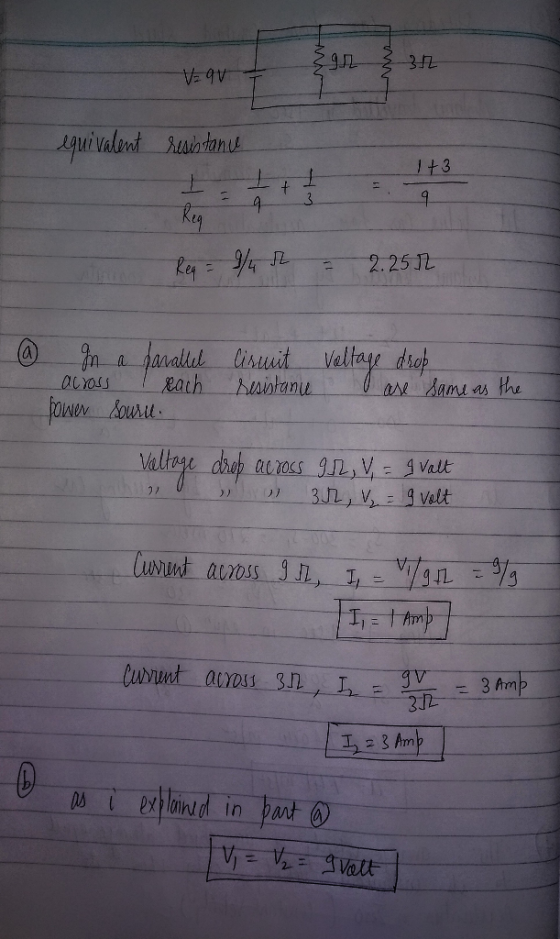

A) current across 9ohm and 3ohm resistor is 1amp and 3 amp respectively.

B) Voltage drop across each resistor is 9 volt.

Add a comment
