The crane lifts the 250 kg bin with an initial acceleration of 2.5 m/s2. Determine the...

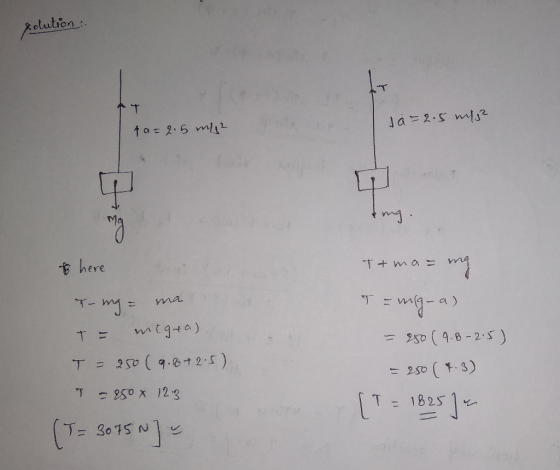

The crane lifts the 250 kg bin with an initial acceleration of 2.5 m/s2. Determine the force in its cable due to this motion. Also find what would the force be if instead of lifting, the bin descends with the same acceleration.
Homework Answers
Add Answer to:
The crane lifts the 250 kg bin with an initial acceleration of
2.5 m/s2. Determine the...
A crane is lifting a 123 kg beam with an acceleration of 1.26 m/s2 downwards. Calculate...
A crane is lifting a 123 kg beam with an acceleration of 1.26 m/s2 downwards. Calculate the magnitude of the tension in the cable, to 2 sf.
A 1200-kg car is being raised with a constant acceleration of 2.53 m/s2 by a crane,...
A 1200-kg car is being raised with a constant acceleration of 2.53 m/s2 by a crane, using a 20-m long steel cable that is 1.5 cm in diameter. Young's modulus for steel is 2.0 × 1011 N/m2. What is the change in length of the cable caused by lifting the car?
A 19600 kg helicopter lifts a 5600 kg truck with an upward acceleration of 1.1 m/s2....
A 19600 kg helicopter lifts a 5600 kg truck with an upward acceleration of 1.1 m/s2. Calculate (a) the net upward force on the helicopter blades from the air and (b) the tension in the cable between the helicopter and truck. (a) Number Units (b) Number Units
The crane shown in the figure is lifting a 463-kg crate upward with an acceleration of...
The crane shown in the figure is lifting a 463-kg crate upward with an acceleration of 2.60 m/s2. The cable from the crate passes over a solid cylindrical pulley at the top of the boom. The pulley has a mass of 111 kg. The cable is then wound onto a hollow cylindrical drum that is mounted on the deck of the crane. The mass of the drum is 124 kg, and its radius (the same as that of the pulley)...
A crane lifts a block of mass 260 kg vertically at an acceleration of 8.5 m/s^2...
A crane lifts a block of mass 260 kg vertically at an acceleration of 8.5 m/s^2 through a height of 1.6 m. What is the net force on the block?
1.)What force is necessary to give a 1900 kg car an acceleration of 2.5 m/s2? 2.)...
1.)What force is necessary to give a 1900 kg car an acceleration of 2.5 m/s2? 2.) Find the acceleration produced by a force of 78 N acting on a 6.5 kg object. 3.) What force must be applied to a 1100 kg tractor to give it an acceleration of 2.8 m/s2?
An 84.0 kg sprinter starts a race with an acceleration of 1.44 m/s2
1. An 84.0 kg sprinter starts a race with an acceleration of 1.44 m/s2. If the sprinter accelerates at that rate for 41 m, and then maintains that velocity for the remainder of the 100 m dash, what will be his time (in s) for the race? 2. (a) If the rocket sled shown in the figure below starts with only one rocket burning, what is the magnitude of its acceleration (in m/s2)? Assume that the mass of the system is 2090...
A man lifts a 3.90-kg stone vertically with his hand at a constant upward acceleration of...
A man lifts a 3.90-kg stone vertically with his hand at a constant upward acceleration of 1.50 m/s2. What is the magnitude of the force of the man’s hand on the stone?
A 13.5 m boom, AB, of a crane lifting a 3,000 kg load is shown below....
A 13.5 m boom, AB, of a crane lifting a 3,000 kg load is shown
below. The center of mass of the boom is at its geometric center,
and the mass of the boom is 2,800 kg.
For the position shown, calculate the following.
tension T in the cable (in N)
N
the force at the axle A (Give the magnitude in newtons and the
direction in degrees counterclockwise from the +x-axis. Assume that
the +x-axis is to the right.)...
7. A force causes a mass of 4 kg to have an acceleration of 8 m/s2....
7. A force causes a mass of 4 kg to have an acceleration of 8 m/s2. Suppose something causes the (1 point) mass to be one-quarter of its original amount. What will happen to the acceleration if the amount of force used remains the same? It will decrease to 2 m/s2 It will remain the same. It will increase to 32 m/s2. It will increase to 16 m/s2 8. What is the force required to propel a 2.00 kg object...
A 19600 kg helicopter lifts a 5600 kg truck with an upward acceleration of 1.1 m/s2. Calculate (a) the net upward force on the helicopter blades from the air and (b) the tension in the cable between the helicopter and truck. (a) Number Units (b) Number Units
The crane shown in the figure is lifting a 463-kg crate upward with an acceleration of 2.60 m/s2. The cable from the crate passes over a solid cylindrical pulley at the top of the boom. The pulley has a mass of 111 kg. The cable is then wound onto a hollow cylindrical drum that is mounted on the deck of the crane. The mass of the drum is 124 kg, and its radius (the same as that of the pulley)...
A 13.5 m boom, AB, of a crane lifting a 3,000 kg load is shown
below. The center of mass of the boom is at its geometric center,
and the mass of the boom is 2,800 kg.
For the position shown, calculate the following.
tension T in the cable (in N)
N
the force at the axle A (Give the magnitude in newtons and the
direction in degrees counterclockwise from the +x-axis. Assume that
the +x-axis is to the right.)...
7. A force causes a mass of 4 kg to have an acceleration of 8 m/s2. Suppose something causes the (1 point) mass to be one-quarter of its original amount. What will happen to the acceleration if the amount of force used remains the same? It will decrease to 2 m/s2 It will remain the same. It will increase to 32 m/s2. It will increase to 16 m/s2 8. What is the force required to propel a 2.00 kg object...
