Beginning with a differential control volume in the form of a cylindrical shell, derive the heat...

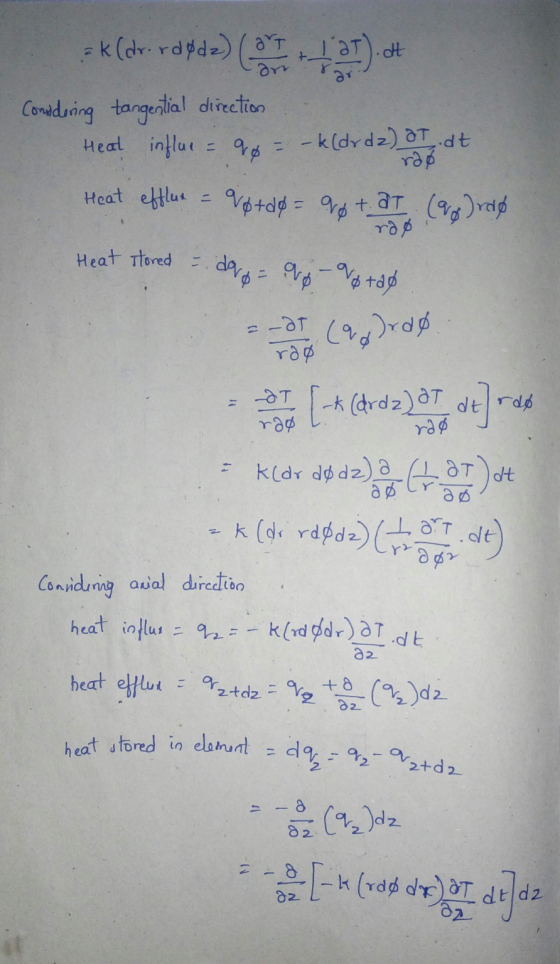

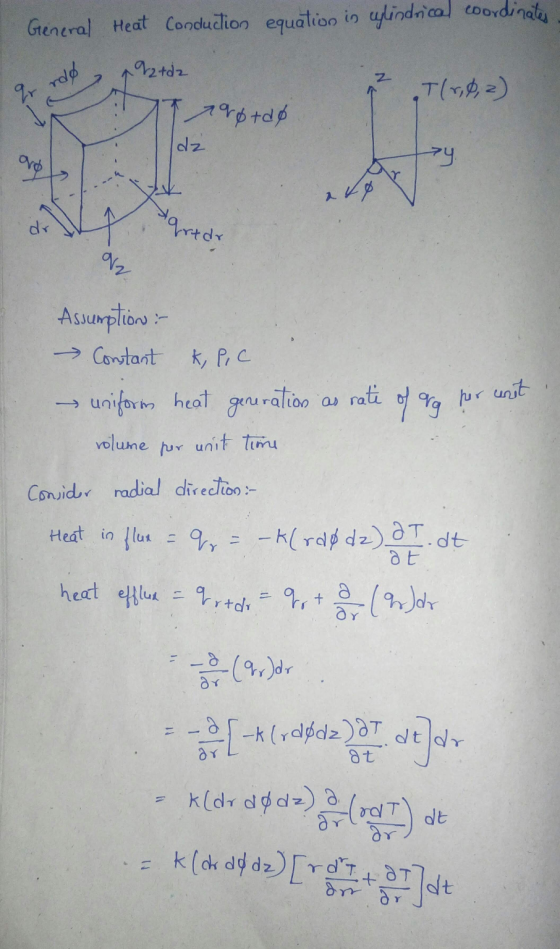

Beginning with a differential control volume in the form of a cylindrical shell, derive the heat diffusion equation for a cylindrical coordinate system with internal heat generation.
Homework Answers
Add Answer to:
Beginning with a differential control volume in the form of a
cylindrical shell, derive the heat...
A very long solid cylindrical rod contains an internal source of uniform heat, per unit volume...
A very long solid cylindrical rod contains an internal source of
uniform heat, per unit volume f; and is
connected to a wall that is at the temperature T1, the
rod is exposed to a fluid with a convention coefficient h and
temperature T.
It is requested:
a) Obtain the differential equation, which determines the
temperature distribution in stable state T(x) in the cylindrical
rod.
b) Solve the previous differential equation for the temperature
distribution.
c) Obtain an expression for...
finite element method The equation for the heat diffusion of a one-dimensional system widh heat generation in a Car...
finite element method
The equation for the heat diffusion of a one-dimensional system widh heat generation in a Cartesian coordinate system is 4. d'T dx2 The rate of thermal energy generation q represents the convessice of enery os electrical, chemical, nuclear, or electromagnetic forms to thermal energy witin the volume of a given system. Derive the contribution of á to the load matrix. Consider a strip of heating elements embedded within the rear glass of a car peoducing a uniform...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fi...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fission in the liquid results in a uniform internal heat generation of à W/m3. The pipe wall also has a heater on it that can provide a uniform surface heating rate of q" W/m2. The radioactive liquid has a specific heat capacity of Cp J/kg-K, a mass flowrate of m kg/s, and an inlet temperature of Tm, Conduction in the fluid in...
PROBLEM 5 Starting with the integral equation of motion, Ot derive the differential form of the e...
PROBLEM 5 Starting with the integral equation of motion, Ot derive the differential form of the equation. Hint: To do this, look at how we derived the differential form of the mass continuity equation. There are parallels, although thisis more complicated. Note that youil ave to apply the gradien identt. fHp di -
Problem # 1 For each system Derive the differential equation which describes the system. Use Laplace Trans form to...
Problem # 1 For each system Derive the differential equation which describes the system. Use Laplace Trans form to find the Transfer Function. Specify the number of the Poles and Zeros and the value of the Gain. Determine the system's order both based on the Transfer Function and the number of the energy storage elements. Draw the Block Diagram with Input and Output C. Liquid Level System; assume q is the input and h3 is the output ! Ay Ry...
3) Starting at the heat diffusion equation, derive the final expression to identify the temperature profile...
3) Starting at the heat diffusion equation, derive the final expression to identify the temperature profile through a 1-D, steady state, plane wall with uniform generation with one adiabatic surface (equation C.22). Using Table 3.3 & C.1, C.2, and C.3 in the appendix as well as appendix A of your textbook, answer the following questions:
3. A cylindrical shell centered along the z-axis extends between r = 2 cm tor=4 cm,...
3. A cylindrical shell centered along the z-axis extends between r = 2 cm tor=4 cm, and z=0 to z = 5 cm. If the volume charge density is given by pv = 4r x 104 (C/m²). a. Make a 3D sketch showing the shell geometry. Identity the relevant coordinate system used. b. Find the total charge (Q) contained in the shell. C. What is the value of the electric field for r<2cm.
12. The temperature at the inner and outer surfaces of a hollow cylindrical pipe with wall...
12. The temperature at the inner and outer surfaces of a hollow cylindrical pipe with wall thickness L are held at constant values of T and T, respectively, where T, <To. The wall material has thermal conductivity that varies linearly according to k = k,(1 +BT), where k, and ß are constants. Draw a schematic of the system. Define and label a coordinate system. State assumptions and boundary conditions. b. Derive the governing differential equation for the heat transport and...
A control volume steady flow system has multiple inputs and outputs with heat and work transfer...
A control volume steady flow system has multiple inputs and outputs with heat and work transfer across boundary. Write out the equation for the first-law relation of the system and identify each term.
5. Starting with the differential form of the First Law for a closed system, derive the...
5. Starting with the differential form of the First Law for a closed system, derive the expression to calculate the reversible work required to isothermally compress an Ideal Gas from Ti, Pi to P2. Make sure your answer is in terms of Pi and P2. Show all of the steps in your derivation.
A very long solid cylindrical rod contains an internal source of
uniform heat, per unit volume f; and is
connected to a wall that is at the temperature T1, the
rod is exposed to a fluid with a convention coefficient h and
temperature T.
It is requested:
a) Obtain the differential equation, which determines the
temperature distribution in stable state T(x) in the cylindrical
rod.
b) Solve the previous differential equation for the temperature
distribution.
c) Obtain an expression for...
finite element method
The equation for the heat diffusion of a one-dimensional system widh heat generation in a Cartesian coordinate system is 4. d'T dx2 The rate of thermal energy generation q represents the convessice of enery os electrical, chemical, nuclear, or electromagnetic forms to thermal energy witin the volume of a given system. Derive the contribution of á to the load matrix. Consider a strip of heating elements embedded within the rear glass of a car peoducing a uniform...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fission in the liquid results in a uniform internal heat generation of à W/m3. The pipe wall also has a heater on it that can provide a uniform surface heating rate of q" W/m2. The radioactive liquid has a specific heat capacity of Cp J/kg-K, a mass flowrate of m kg/s, and an inlet temperature of Tm, Conduction in the fluid in...
PROBLEM 5 Starting with the integral equation of motion, Ot derive the differential form of the equation. Hint: To do this, look at how we derived the differential form of the mass continuity equation. There are parallels, although thisis more complicated. Note that youil ave to apply the gradien identt. fHp di -
Problem # 1 For each system Derive the differential equation which describes the system. Use Laplace Trans form to find the Transfer Function. Specify the number of the Poles and Zeros and the value of the Gain. Determine the system's order both based on the Transfer Function and the number of the energy storage elements. Draw the Block Diagram with Input and Output C. Liquid Level System; assume q is the input and h3 is the output ! Ay Ry...
3) Starting at the heat diffusion equation, derive the final expression to identify the temperature profile through a 1-D, steady state, plane wall with uniform generation with one adiabatic surface (equation C.22). Using Table 3.3 & C.1, C.2, and C.3 in the appendix as well as appendix A of your textbook, answer the following questions:
3. A cylindrical shell centered along the z-axis extends between r = 2 cm tor=4 cm, and z=0 to z = 5 cm. If the volume charge density is given by pv = 4r x 104 (C/m²). a. Make a 3D sketch showing the shell geometry. Identity the relevant coordinate system used. b. Find the total charge (Q) contained in the shell. C. What is the value of the electric field for r<2cm.
12. The temperature at the inner and outer surfaces of a hollow cylindrical pipe with wall thickness L are held at constant values of T and T, respectively, where T, <To. The wall material has thermal conductivity that varies linearly according to k = k,(1 +BT), where k, and ß are constants. Draw a schematic of the system. Define and label a coordinate system. State assumptions and boundary conditions. b. Derive the governing differential equation for the heat transport and...
5. Starting with the differential form of the First Law for a closed system, derive the expression to calculate the reversible work required to isothermally compress an Ideal Gas from Ti, Pi to P2. Make sure your answer is in terms of Pi and P2. Show all of the steps in your derivation.
