Assume a rather old disk drive is configured as follows. The total storage is divided among...

Assume a rather old disk drive is configured as follows.

The total storage is divided among 32 surfaces.

There are 2048 tracks per sector.

There are 512 sectors per track.

There are 512 Bytes per sector.

The interleaving factor is 4.

The disk turns at 7200 rpm.

The average startup time for the read/write arm is 15 ms and the average time to move the arm is 0.2 ms per track. Now assume that there is 8 MB file on the disk, arranged for best access it could be. On the average how long will it take to read all the data in the file?

Assume that the first track of the file is randomly placed on the disk, that the entire file lies on minimal number of adjacent tracks ant that the file completely fills on each track on which it is found. A seek must be performed each time the I/O head moves top a new track. Show all the details for your calculations.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

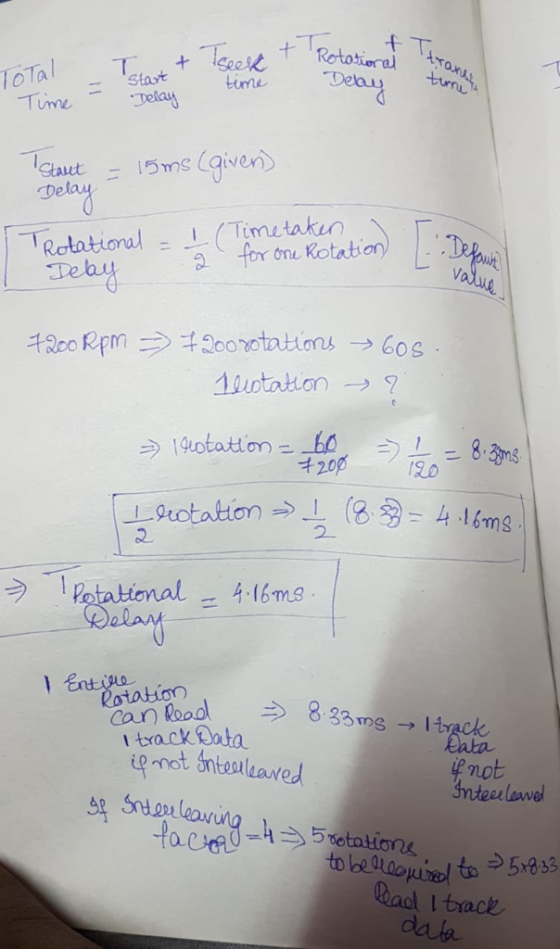

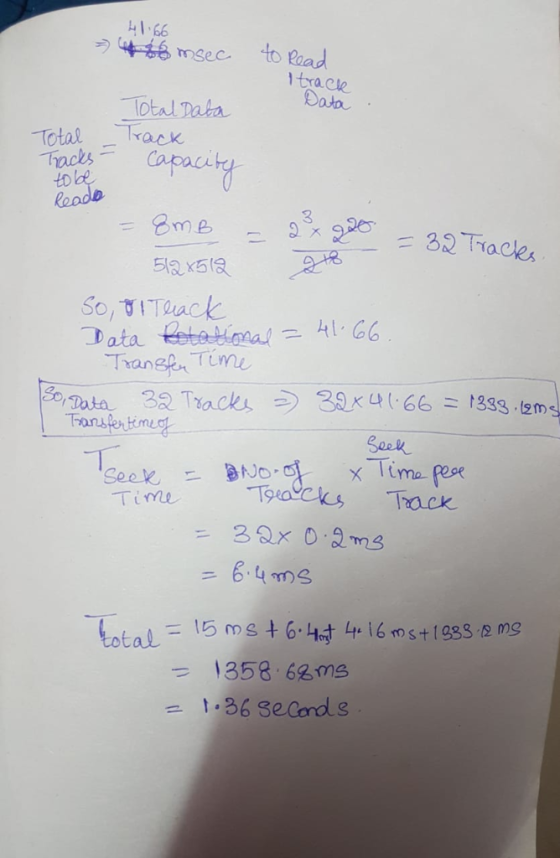

Answer #1

0 0
Add a comment
