Which of the following concerning electron pair space requirements and bond angles is/are incorrect? 1. Lone...

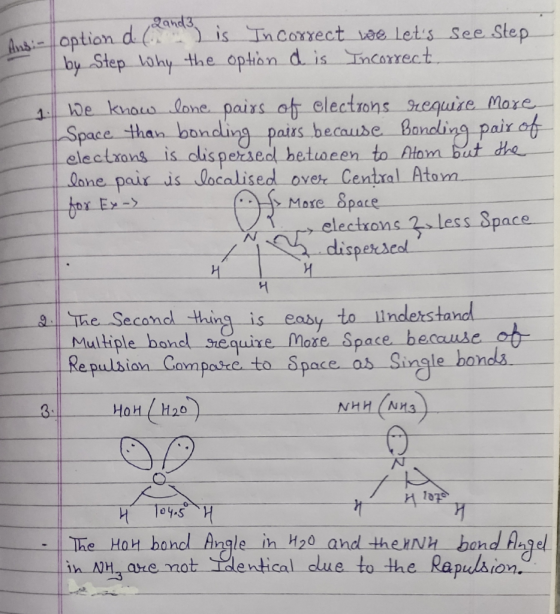

Which of the following concerning electron pair space requirements and bond angles is/are incorrect? 1. Lone pairs of electrons require more space than bonding pairs. 2. Multiple bonds require the same amount of space as single bonds. 3. The HOH bond angle in H2O and the HNH bond angle in NH3 are identical because the electron arrangements (tetrahedral) are identical.
Select one: a. 1 only
b. 2 only
c. 3 only
d. 2 and 3
e. 1, 2, and 3
Homework Answers
Add Answer to:
Which of the following concerning electron pair space
requirements and bond angles is/are incorrect? 1. Lone...
