a. Transmission line reactive power balance. Describe the substitution of the cable, the reactive power calculation...

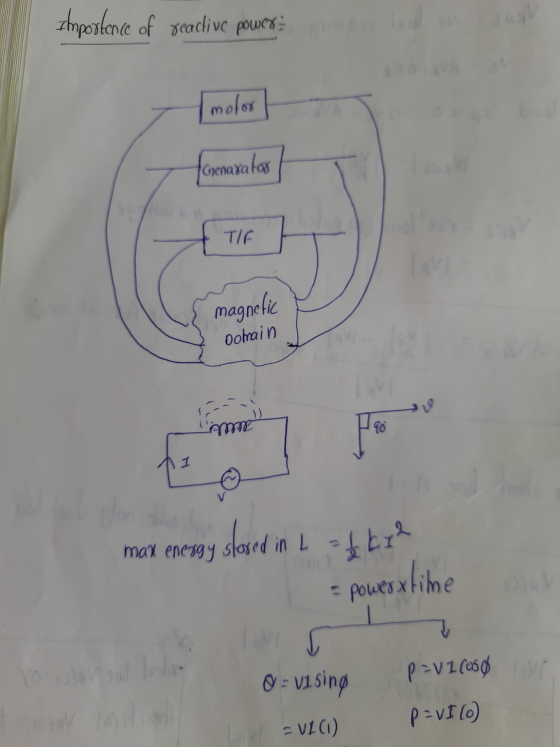

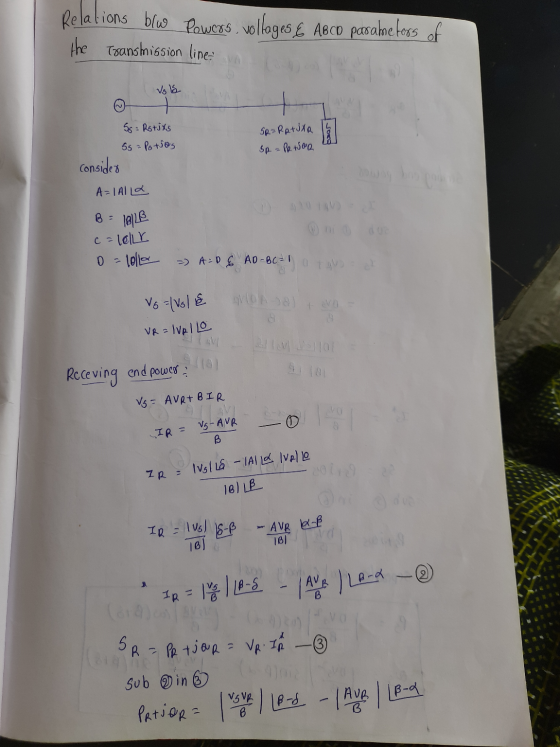

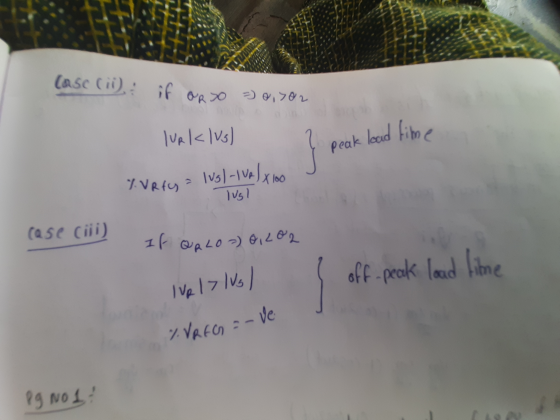

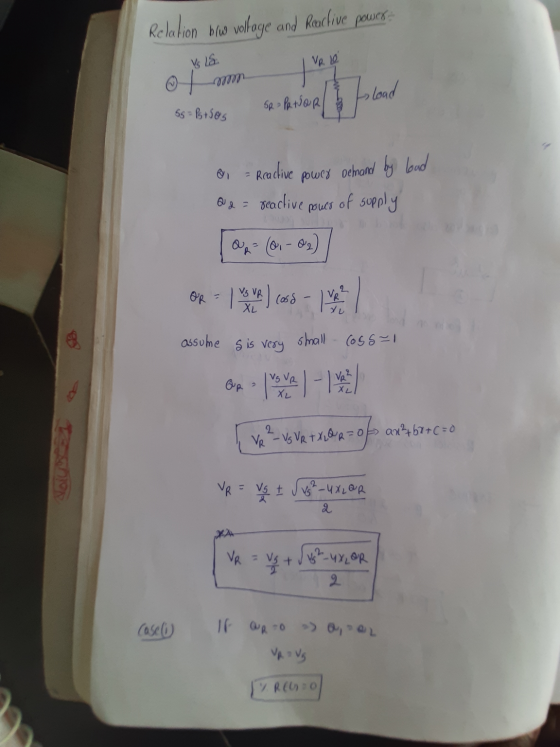

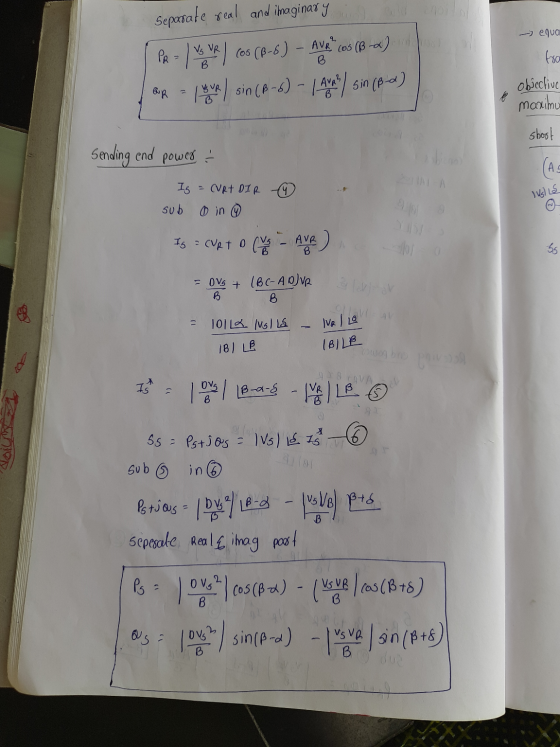

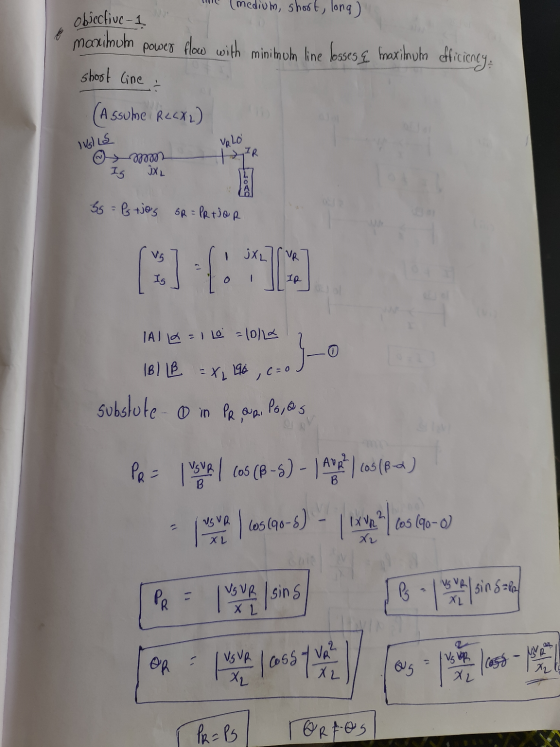

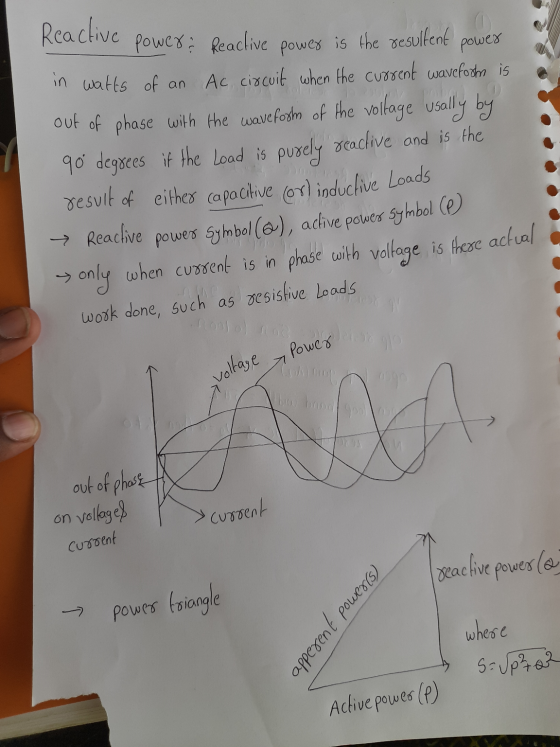

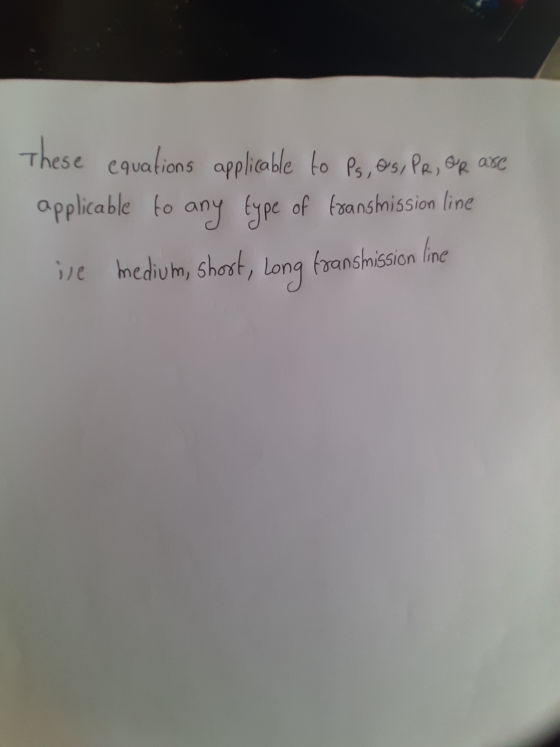

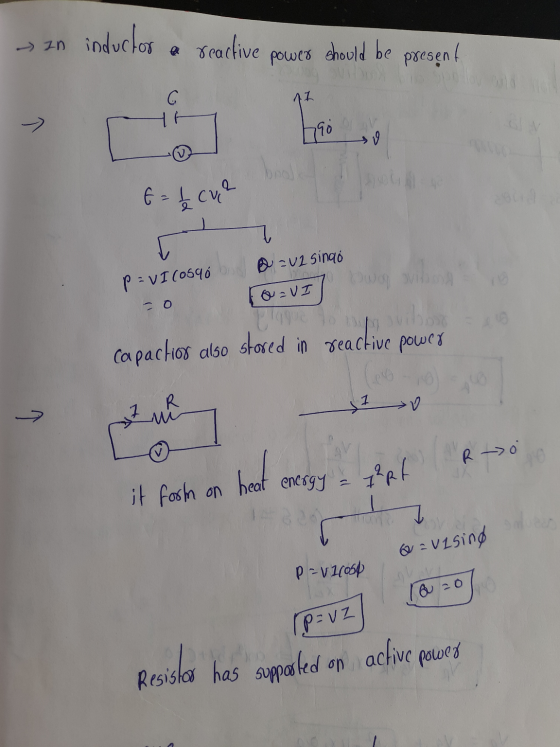

a. Transmission line reactive power balance. Describe the substitution of the cable, the reactive power calculation equations, the reactive power behavior in different transmission situations and the effects on the transmission system.
Homework Answers
Add Answer to:
a. Transmission line reactive power balance. Describe the
substitution of the cable, the reactive power calculation...
The impedance of a three-phase, 50 km long power transmission line per unit length is 0.05...
The impedance of a three-phase, 50 km long power transmission line per unit length is 0.05 + j0.1 / km. A load with a power coefficient of 0.8 forward is fed from the end of the line. Line and end of line of energy transmission line According to the intention to keep the voltage between phases constant at 154 kV; a) Active and reactive power values drawn from the beginning and end of the line, b) Calculate the lost...
Autumn 2010 Describe the main methods of controlling real and reactive power flow in a power...
Autumn 2010 Describe the main methods of controlling real and reactive power flow in a power system. Winter 2010 Derive the method of constructing the admittance matrix of a system, using basic circuit theory and a three-bus example.
A 1 GW synchronous generator is connected to an infinite bus through a transmission line. The...
A 1 GW synchronous generator is connected to an infinite bus through a transmission line. The infinite bus voltage (per phase) is 100kV (reference voltage), the inductive reactance of the transmission line is 5 ?, the synchronous reactance of the generator is ?? = 8 ?. If the generator delivers its rated power at unity power factor to the infinite bus, compute the following: a) Terminal voltage of the generator (5 Points) b) Equivalent field voltage (5 Points) c) The...
A balanced A-connected load of Z,=12+39.0 12 is connected to a power supply via a transmission...
A balanced A-connected load of Z,=12+39.0 12 is connected to a power supply via a transmission line with impedance of Zrl=0.6+j2.5 12, find Transmission Lines o 20820 V AC 2084(0–240°) v umaza 10 AC 2084(0-120°) v mm | za | Three-Phase 208 V, 60 HZ Power Supply Three-Phase A-Connected Balanced Load @@OGO E the load line and phase voltages (magnitude and angle), the load line and phase currents (magnitude and angle), the total load's real, reactive, and apparent powers, the...
3. (30) A simple power system, shown below, is made up of a synchronous generatcr connected to a synchronous motor through a couple of transformers and a transmission line. The reactances of the...
3. (30) A simple power system, shown below, is made up of a synchronous generatcr connected to a synchronous motor through a couple of transformers and a transmission line. The reactances of the different elements of the system are all given in pu as: Xsg-0.5 X of each transformer-10 % Xsm-0.5 X transmission line 0.3 The synchronous motor is connected to an infinite bus Hint: The great advantage of an infinite bus is that it always remains constant and our...
5. The active power transmitted by the heavy load line is very large, and in practice,...
5. The active power transmitted by the heavy load line is very large, and in practice, the voltage amplitude of each point of the line is generally required to be within £ 5%, and the difficulty of transmitting the reactive power at this time is analyzed. (Hint: start with the characteristics of the phase angles on both sides of the heavy load line) Combine the other angles (such as, but not limited to, line losses) to analyze the balance of...
A. Consider a simplified model of a transmission line with resistance and capacitance neglected. a. Show...
A. Consider a simplified model of a transmission line with resistance and capacitance neglected. a. Show that the sending end real and reactive power are given by the equations respectively. Vs is the voltage magnitude at the sending end, Vr is the voltagemagnitude at the receiving end, is phase angle between the sending and receiving end voltages, and is the series reactance. When we use this or the more general formulas we say the voltage magnitudes are close to normal...
b. Power Transmission System Power Balance Management Objectives, Policies and Techniques (Nordic and Finland).
b. Power Transmission System Power Balance Management Objectives, Policies and Techniques (Nordic and Finland).
6.1 Consider the power system shown in Figure P6.1. Assuming that the only lim- itations imposed by the network are imposed by the thermal capacity of the transmission lines and that the reactive pow...
6.1 Consider the power system shown in Figure P6.1. Assuming that the only lim- itations imposed by the network are imposed by the thermal capacity of the transmission lines and that the reactive power flows are negligible, check that the following sets of transactions are simultaneously feasible. Seller Amount Set 1 Set 2 Set 3 1000 100 -0.2 pu. AX 250 MW X3-0.4 p.u PMAX-250 MW X23-04 р.u. PMAX 250 MW Figure P6.1 Three-bus power system for Problem 6.1
6.1...
VO) L1 L2 Line VO LI Power Calculations Learning Goal: In this tutorial, you will practice...
VO) L1 L2 Line VO LI Power Calculations Learning Goal: In this tutorial, you will practice the calculation of power in circuits containing loads, including the effects of non-ideal transmission lines, and practice how to improve the power factor for an entire system. Many appliances (eg., hair dryers, coffee makers, and refrigerators) and industrial loads are powered by AC sources. The ability to be able to calculate their power needs is important in a number of situations. Before completing this...
Autumn 2010 Describe the main methods of controlling real and reactive power flow in a power system. Winter 2010 Derive the method of constructing the admittance matrix of a system, using basic circuit theory and a three-bus example.
A balanced A-connected load of Z,=12+39.0 12 is connected to a power supply via a transmission line with impedance of Zrl=0.6+j2.5 12, find Transmission Lines o 20820 V AC 2084(0–240°) v umaza 10 AC 2084(0-120°) v mm | za | Three-Phase 208 V, 60 HZ Power Supply Three-Phase A-Connected Balanced Load @@OGO E the load line and phase voltages (magnitude and angle), the load line and phase currents (magnitude and angle), the total load's real, reactive, and apparent powers, the...
3. (30) A simple power system, shown below, is made up of a synchronous generatcr connected to a synchronous motor through a couple of transformers and a transmission line. The reactances of the different elements of the system are all given in pu as: Xsg-0.5 X of each transformer-10 % Xsm-0.5 X transmission line 0.3 The synchronous motor is connected to an infinite bus Hint: The great advantage of an infinite bus is that it always remains constant and our...
5. The active power transmitted by the heavy load line is very large, and in practice, the voltage amplitude of each point of the line is generally required to be within £ 5%, and the difficulty of transmitting the reactive power at this time is analyzed. (Hint: start with the characteristics of the phase angles on both sides of the heavy load line) Combine the other angles (such as, but not limited to, line losses) to analyze the balance of...
A. Consider a simplified model of a transmission line with resistance and capacitance neglected. a. Show that the sending end real and reactive power are given by the equations respectively. Vs is the voltage magnitude at the sending end, Vr is the voltagemagnitude at the receiving end, is phase angle between the sending and receiving end voltages, and is the series reactance. When we use this or the more general formulas we say the voltage magnitudes are close to normal...
6.1 Consider the power system shown in Figure P6.1. Assuming that the only lim- itations imposed by the network are imposed by the thermal capacity of the transmission lines and that the reactive power flows are negligible, check that the following sets of transactions are simultaneously feasible. Seller Amount Set 1 Set 2 Set 3 1000 100 -0.2 pu. AX 250 MW X3-0.4 p.u PMAX-250 MW X23-04 р.u. PMAX 250 MW Figure P6.1 Three-bus power system for Problem 6.1
6.1...
VO) L1 L2 Line VO LI Power Calculations Learning Goal: In this tutorial, you will practice the calculation of power in circuits containing loads, including the effects of non-ideal transmission lines, and practice how to improve the power factor for an entire system. Many appliances (eg., hair dryers, coffee makers, and refrigerators) and industrial loads are powered by AC sources. The ability to be able to calculate their power needs is important in a number of situations. Before completing this...
