The local FM radio station broadcasts at 97.1 MHz. Suppose they use a 75-Ω transmission line...

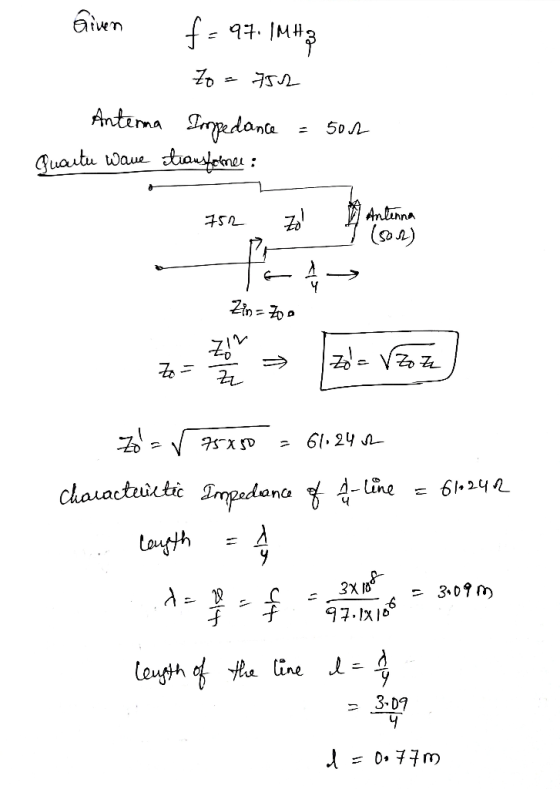

The local FM radio station broadcasts at 97.1 MHz. Suppose they use a 75-Ω transmission line to feed the broadcast antenna. If the antenna impedance is 50 Ω, (a) find the length and characteristic impedance for a quarter-wave transformer to match the antenna to the line. Assume the phase velocity is the speed of light. (b) What fraction of the power is delivered to the antenna with the original line relative to the power delivered to it with the matched line?
Homework Answers
