An external AC voltage source provides a 100 V peak voltage to each of the circuits...

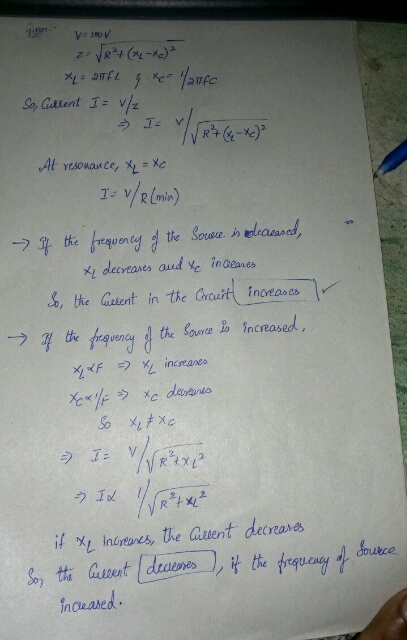

An external AC voltage source provides a 100 V peak voltage to each of the circuits described below. Assume the peak voltage of the source remains 100 V when the frequency is changed. Select Decrease, Increase or Remain Unchanged to each of the following statements. A resistor, capacitor and an inductor are connected to the voltage supply and the circuit is at resonance. If the frequency of the source is decreased, the current in the circuit will __________. A: Increase B: Decrease C: Remain Unchanged The AC voltage source is connected to an inductor and a resistor in series. If the frequency of the source is increased the current in the circuit will _________. A: Increase B: Decrease C: Remain Unchanged
Homework Answers
Add Answer to:
An external AC voltage source provides a 100 V peak voltage to
each of the circuits...
An external AC voltage source provides a 100 V peak voltage to each of the circuits...
An external AC voltage source provides a 100 V peak voltage to each of the circuits described below. Assume the peak voltage of the source remains 100 V when the frequency is changed. Select Decrease, Increase or Remain unchanged to each of the following statements. Decrease: The AC voltage source is connected to an inductor and a resistor in series. If the frequency of the source is increased the current n the circuit will A: Increase OB: Decrease C: Remain...
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 5.4 uF capacitor and a 351 ohm resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the capacitor?...
Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is...
Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is connected in series with a 0.700 H inductor, a 5.20 μF capacitor and a 401 Ω resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the...
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.400 H inductor, a 5.30 ?F capacitor and a 251 ohm resistor. A.) What is the impedance of the circuit? B.) What is the rms current through the resistor? C.) What is the average power dissipated in the circuit? D.) What is the peak current through the resistor? E.) What is the peak voltage across the inductor F.) What is...
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.350 H inductor, a 5.10 μF capacitor and a 306 Ω resistor. a. What is the impedance of the circuit? b. What is the rms current through the resistor? c. What is the average power dissipated in the circuit? d. What is the peak current through the resistor? e. What is the peak voltage across the inductor? f. What is...
An AC generator supplies an rms voltage of 240 V at 50.0 Hz. It is connected...
An AC generator supplies an rms voltage of 240 V at 50.0 Hz. It is connected in series with a 0.650 H inductor, a 4.70 μF capacitor and a 246 Ω resistor. a) What is the impedance of the circuit? b) What is the rms current through the resistor? c) What is the average power dissipated in the circuit? d) What is the peak current through the resistor? e) What is the peak voltage across the inductor? f) What is...
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected...
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected with a resistor (R-220 Ω), a capacitor with C-0.1 μΕ and an an inductor with L=680 nH. What is the capacitive reactance? What is the inductive reactance? What is the impedance when all three components are connected in SERIES? What is the current when all three components are connected in SERIES? What is the impedance of the circuit when all three components are connected...
An AC generator supplies an rms voltage of 115 V at 50.0 Hz. It is connected...
An AC generator supplies an rms voltage of 115 V at 50.0 Hz. It is connected in series with a 0.600 H inductor, a 5.60 μF capacitor and a 271 Ω resistor. a. What is the impedance of the circuit? Tries 0/20 b. What is the rms current through the resistor? Tries 0/20 c. What is the average power dissipated in the circuit? Tries 0/20 d. What is the peak current through the resistor? Tries 0/20 e. What is the...
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 3.20 μF capacitor and a 396 Ω resistor. What is the impedance of the circuit? 7.69×102 ohm You are correct. Previous Tries What is the rms current through the resistor? You can use a similar equation fo Ohm's law for an RLC circuit. Incorrect. Tries 1/20 Previous Tries What is the average power dissipated in the...
An AC generator supplies an rms voltage of 110 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 110 V at 60.0 Hz. It is connected in series with a 0.300 H inductor, a 5.60 uF capacitor and a 256 2 resistor. What is the impedance of the circuit? Submit Answer Tries 0/20 What is the rms current through the resistor? Submit Answer Tries 0/20 What is the average power dissipated in the circuit? Submit Answer Tries 0/20 What is the peak current through the resistor? Submit Answer Tries 0/20...
An external AC voltage source provides a 100 V peak voltage to each of the circuits described below. Assume the peak voltage of the source remains 100 V when the frequency is changed. Select Decrease, Increase or Remain unchanged to each of the following statements. Decrease: The AC voltage source is connected to an inductor and a resistor in series. If the frequency of the source is increased the current n the circuit will A: Increase OB: Decrease C: Remain...
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected with a resistor (R-220 Ω), a capacitor with C-0.1 μΕ and an an inductor with L=680 nH. What is the capacitive reactance? What is the inductive reactance? What is the impedance when all three components are connected in SERIES? What is the current when all three components are connected in SERIES? What is the impedance of the circuit when all three components are connected...
An AC generator supplies an rms voltage of 110 V at 60.0 Hz. It is connected in series with a 0.300 H inductor, a 5.60 uF capacitor and a 256 2 resistor. What is the impedance of the circuit? Submit Answer Tries 0/20 What is the rms current through the resistor? Submit Answer Tries 0/20 What is the average power dissipated in the circuit? Submit Answer Tries 0/20 What is the peak current through the resistor? Submit Answer Tries 0/20...
