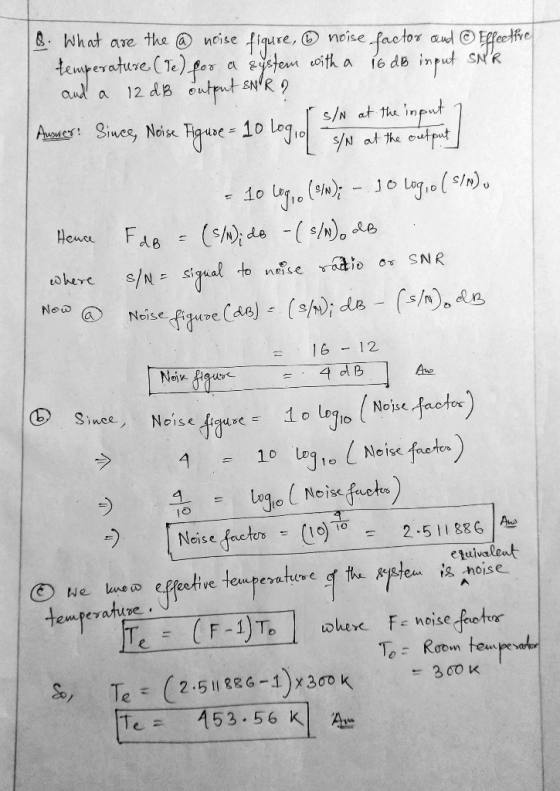

What are the (a) noise figure, (b) noise factor, and (c) effective temperature (Te) for a...
What are the (a) noise figure, (b) noise factor, and (c) effective temperature (Te) for a system with a 16 dB input SNR and a 12 dB output SNR?
Homework Answers
Add Answer to:
What are the (a) noise figure, (b) noise factor, and (c)
effective temperature (Te) for a...
The effective noise temperature of a radio receiving system before the demodulator is 800K. If the...
The effective noise temperature of a radio receiving system before the demodulator is 800K. If the modulation employed is DSB-SC, what is the required received power level if an 85 dB SNR at the demodulator output is required. Assume the bandwidth of m(t) is 7 kHz. 4.
Problem 3 A receiver has a bandwidth of 1 MHz and a noise figure of 10...
Problem 3 A receiver has a bandwidth of 1 MHz and a noise figure of 10 dB. The receiver sensitivity is -90 dBm. The Boltzmann constant is k=1.38x10-23 Joule/deg K, and the room temperature is 300 deg Kelvin. a) What is the ratio of the SNR at the input to the receiver (computed over the bandwidth of interest) to the SNR at the output of the receiver? b) What is the noise power at output of the receiver? c) Find...
What is the effective Temperature (T. (K) for a system with a 28 dB input SNR...
What is the effective Temperature (T. (K) for a system with a 28 dB input SNR and a 24 dB output SNR? BIVAAI EIX X. - V G T 12pt - Paragraph -
Noise-related problems Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a...
Noise-related problems Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a front-end preamplifier of gain (A) equal to 20 dB and a noise-figure (NF) of 4 dB. The preamplifier is followed by a mixer stage with a NF 18 dB. Suppose the signal-to-noise ratio (SNR) at the mixer output is 30 dB, find the SNR at the preamplifier input. Hint: Use Friis formula: Answer hints: NF (Total) 4.96 dB)
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. ...
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. The message is a periodic square wave given in the figure below pulse width -0.2m 2 0 0 t (ms) a) What is the output SNR.? b) What is the proper value of the message bandwidth? [Justify your answer. c) What is the corresponding FM transmission bandwidth? d) If the modulation index is kept at β 6, what should be the increase...
8 8.6-4 For a DSB-SC system with a channel noise PSD of Sn() 10-12 and a baseband signal of bandw...
8 8.6-4 For a DSB-SC system with a channel noise PSD of Sn() 10-12 and a baseband signal of bandwidth 5 kHz, the receiver output SNR is required to be at least 47 dB. The receiver is as shown in Fig. 8.30. (a) What must be the signal power Si received at the receiver input? (b) What is the receiver output noise power No? (c) What is the minimum transmitted power Sr if the channel transfer function is He)10-3 over...

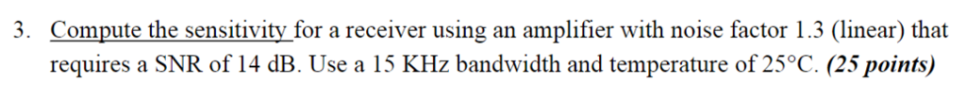

Compute the sensitivity for a receiver using an amplifier with noise factor 1.3 (linear) that requires...
Compute the sensitivity for a receiver using an amplifier with noise factor 1.3 (linear) that requires a SNR of 14 dB. Use a 15 KHz bandwidth and temperature of 25°C. (25 points) 3.
Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a front-end preamplifier of gain ...
WRITE LEGIBLY OR TYPE THE ANSWERS WITH EXPLANATIONS
THANKS!!!
Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a front-end preamplifier of gain (A) equal to 20 dB and a noise-figure (NF) of 4 dB. The preamplifier is followed by a mixer stage with a NF 18 dB. Suppose the signal-to-noise ratio (SNR) at the mixer output is 30 dB, find the SNR at the preamplifier input. Hint: Use Friis formula F21F (Answer hints: NF (Total)...
Problem #2: (40 points) Consider the following communication link. Both the transmitter and receivers are properly...
Problem #2: (40 points) Consider the following communication link. Both the transmitter and receivers are properly matched to their respective antennas. Assume that the system nominal temperature is 290 K. A detailed block diagram of the receiver is shown in the figure Determine 1. The effective isotropic radiated power in dBm. 2. The space loss in dB 3. The communication link total losses in dB 4. What would be the received power at the receiver input in dBm? 5. What's...
3. The quality of a received signal is often characterized by the signal-to-noise-ratio (SNR), which is...
3. The quality of a received signal is often characterized by the signal-to-noise-ratio (SNR), which is defined as SNR 10 log As you might expect from this Signal power in watts KTB definition, the unit of SNR is decibels (dB). The term in the denominator is the noise power, and it is generally specified as an effective noise temperature T multiplied by the product of Boltzmann's constant (K) and the bandwidth (B) of the signal in Hz. Generally we like...
The effective noise temperature of a radio receiving system before the demodulator is 800K. If the modulation employed is DSB-SC, what is the required received power level if an 85 dB SNR at the demodulator output is required. Assume the bandwidth of m(t) is 7 kHz. 4.
Problem 3 A receiver has a bandwidth of 1 MHz and a noise figure of 10 dB. The receiver sensitivity is -90 dBm. The Boltzmann constant is k=1.38x10-23 Joule/deg K, and the room temperature is 300 deg Kelvin. a) What is the ratio of the SNR at the input to the receiver (computed over the bandwidth of interest) to the SNR at the output of the receiver? b) What is the noise power at output of the receiver? c) Find...
What is the effective Temperature (T. (K) for a system with a 28 dB input SNR and a 24 dB output SNR? BIVAAI EIX X. - V G T 12pt - Paragraph -
Noise-related problems Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a front-end preamplifier of gain (A) equal to 20 dB and a noise-figure (NF) of 4 dB. The preamplifier is followed by a mixer stage with a NF 18 dB. Suppose the signal-to-noise ratio (SNR) at the mixer output is 30 dB, find the SNR at the preamplifier input. Hint: Use Friis formula: Answer hints: NF (Total) 4.96 dB)
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. The message is a periodic square wave given in the figure below pulse width -0.2m 2 0 0 t (ms) a) What is the output SNR.? b) What is the proper value of the message bandwidth? [Justify your answer. c) What is the corresponding FM transmission bandwidth? d) If the modulation index is kept at β 6, what should be the increase...
8 8.6-4 For a DSB-SC system with a channel noise PSD of Sn() 10-12 and a baseband signal of bandwidth 5 kHz, the receiver output SNR is required to be at least 47 dB. The receiver is as shown in Fig. 8.30. (a) What must be the signal power Si received at the receiver input? (b) What is the receiver output noise power No? (c) What is the minimum transmitted power Sr if the channel transfer function is He)10-3 over...
Compute the sensitivity for a receiver using an amplifier with noise factor 1.3 (linear) that requires a SNR of 14 dB. Use a 15 KHz bandwidth and temperature of 25°C. (25 points) 3.
WRITE LEGIBLY OR TYPE THE ANSWERS WITH EXPLANATIONS
THANKS!!!
Question # B.4 An RF system having a RF-bandwidth of 1 MHz, has a front-end preamplifier of gain (A) equal to 20 dB and a noise-figure (NF) of 4 dB. The preamplifier is followed by a mixer stage with a NF 18 dB. Suppose the signal-to-noise ratio (SNR) at the mixer output is 30 dB, find the SNR at the preamplifier input. Hint: Use Friis formula F21F (Answer hints: NF (Total)...
Problem #2: (40 points) Consider the following communication link. Both the transmitter and receivers are properly matched to their respective antennas. Assume that the system nominal temperature is 290 K. A detailed block diagram of the receiver is shown in the figure Determine 1. The effective isotropic radiated power in dBm. 2. The space loss in dB 3. The communication link total losses in dB 4. What would be the received power at the receiver input in dBm? 5. What's...
3. The quality of a received signal is often characterized by the signal-to-noise-ratio (SNR), which is defined as SNR 10 log As you might expect from this Signal power in watts KTB definition, the unit of SNR is decibels (dB). The term in the denominator is the noise power, and it is generally specified as an effective noise temperature T multiplied by the product of Boltzmann's constant (K) and the bandwidth (B) of the signal in Hz. Generally we like...
