5) You are creating a robotic arm that you want to have travel 180 degrees in...

5) You are creating a robotic arm that you want to have travel 180 degrees in 30 seconds. What is the gear ratio required if the motor runs at 100rpm? (2 marks)

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

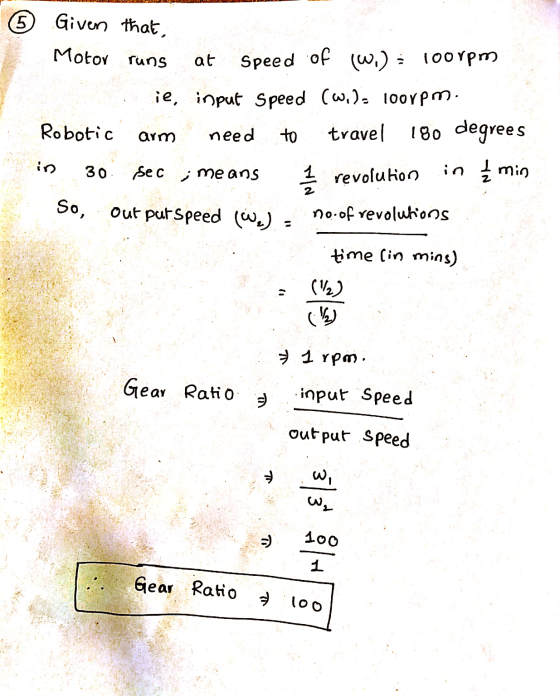

Answer #1

0 0
Add a comment
