Monochromatic light of wavelength 560 nm strikes a thin layer of soap, which has an index...

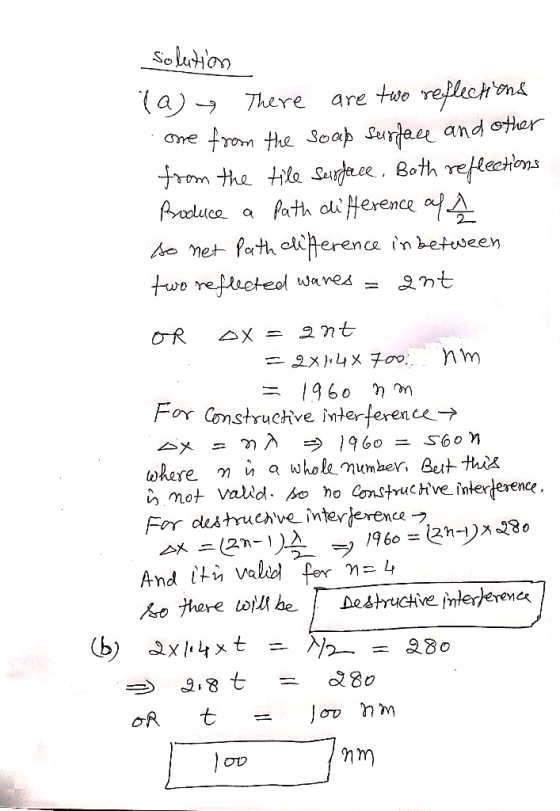

Monochromatic light of wavelength 560 nm strikes a thin layer of soap, which has an index of refraction of 1.4 and rests on a bathroom tile. (a) If the layer of soap is 700 nm thick, does constructive interference, destructive interference, or partial interference occur when the light strikes the surface close to the normal? (b) What is the minimum thickness of soap that would result in no (or minimal) reflection from the surface? (100 nm)
Homework Answers
Add Answer to:
Monochromatic light of wavelength 560 nm strikes a thin layer of
soap, which has an index...
Light with a wavelength of 520 nm in air shines on a soap bubble (n =...
Light with a wavelength of 520 nm in air shines on a soap bubble (n = 1.3), resulting in thin film interference. The current thickness of the bubble is such that the interference is constructive – light reflecting from the outer surface of the bubble and light reflecting from the inner surface interfere constructively. How much would the thickness of the bubble need to be increased in order to observe destructive interference?
#14 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film with an index...
#14 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film with an index of refraction of 1.50, with air on either side of the film. What is the minimum thickness of the film such that red light with a wavelength of 700 nm is reflected with the greatest intensity? O A. 117 nm B. 233 nm O C. 350 nm O D. 700 nm #15 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film...
Monochromatic light of wavelength X-89.1um is shone at normal incidence through a thin film of thickness...
Monochromatic light of wavelength X-89.1um is shone at normal incidence through a thin film of thickness t resting atop a fully reflective surface. The film has an index of refraction of n film 1.5 What is the smallest thickness t (in ?m) the film could have to get constructive interference?
Monochromatic light of wavelength, λ is traveling in air. The light then strikes a thin film...
Monochromatic light of wavelength, λ is traveling in air. The light then strikes a thin film having an index of refraction n1 that is coating a material having an index of refraction n2. If n2 is larger than n1, what minimum film thickness will result in maximum reflection of this light? A B C D E F G H I J A λ/n1 B λ/4 C λ D λ/(4n2) E λ/n2 F λ/(2n1) G λ/(4n1) H λ/2 I λ/(2n2) J...
Monochromatic light of wavelength, λ is traveling in air. The light then strikes a thin film...
Monochromatic light of wavelength, λ is traveling in air. The light then strikes a thin film having an index of refraction n1 that is coating a material having an index of refraction n2. If n1 is larger than n2, what minimum film thickness will result in minimum reflection of this light? A B C D E F G H I J A λ/(4n2) B λ/n2 C λ/(4n1) D λ/(2n1) E λ/4 F λ G λ/2 H λ/(2n2) I λ/n1 J...
A thin layer of oil with index of refraction no = 1.47 is floating above the...
A thin layer of oil with index of refraction no = 1.47 is floating above the water. The index of refraction of water is nw = 1.3. The index of refraction of air is na = 1. A light with wavelength 1 = 750 nm goes in from the air to oil and water. n n (a) Express the wavelength of the light in the oil. 1o, in terms of 1 and no- (b) Express the minimum thickness of the...
(17 %) Problem 3: A thin layer of oil with index of refraction no-l .47 is floating above the water. The index of refraction of water is nw 13. The index of refraction of air is na-1. A light wit...
(17 %) Problem 3: A thin layer of oil with index of refraction no-l .47 is floating above the water. The index of refraction of water is nw 13. The index of refraction of air is na-1. A light with wavelength λ = 625 nm goes in from the air to oil and water. 25% Part (a) Express the wavelength of the light in the oil, λο, in terms of λ and no. 쇼 25% Part (b) Express the minimum...
N-1.00 n-1.33 n=1 50 3. A thin film of thickness t and index of refraction 1.33 coats a glass wit...
I dont understand thin film interference. Thanks in
advance
n-1.00 n-1.33 n=1 50 3. A thin film of thickness t and index of refraction 1.33 coats a glass with index of refraction 1.50 as shown above. Which of the following thicknesses t will not reflect light with wavelength 640 nm in air? (A) 160 nm (8) 240 nm (C) 360 nm (D) 480 nm 4. Lenses in fine quality cameras are coated to reduce the reflection from the lenses. If...
23 A piece of glass of index of refraction 1.50 is coated with a thin layer...
23 A piece of glass of index of refraction 1.50 is coated with a thin layer of magnesium fluoride of index of refraction 1.38. It is illuminated with light of wavelength 680 nm. Determine the minimum thickness of the coating that will result in no reflection
A thin film, with a thickness of 277.1 nm and with air on both sides, is...
A thin film, with a thickness of 277.1 nm and with air on both sides, is illuminated with a beam of white light. The beam is perpendicular to the film and consists of the full range of wavelengths for the visible spectrum. In the light reflected by the film, light with a wavelength of 632.3 nm undergoes fully constructive interference. At what wavelength does the reflected light undergo fully destructive interference? (Hint: You must make a reasonable assumption about the...
#14 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film with an index of refraction of 1.50, with air on either side of the film. What is the minimum thickness of the film such that red light with a wavelength of 700 nm is reflected with the greatest intensity? O A. 117 nm B. 233 nm O C. 350 nm O D. 700 nm #15 Thin Soap Films: Maximizing Reflection A soap bubble consists of a film...
Monochromatic light of wavelength X-89.1um is shone at normal incidence through a thin film of thickness t resting atop a fully reflective surface. The film has an index of refraction of n film 1.5 What is the smallest thickness t (in ?m) the film could have to get constructive interference?
A thin layer of oil with index of refraction no = 1.47 is floating above the water. The index of refraction of water is nw = 1.3. The index of refraction of air is na = 1. A light with wavelength 1 = 750 nm goes in from the air to oil and water. n n (a) Express the wavelength of the light in the oil. 1o, in terms of 1 and no- (b) Express the minimum thickness of the...
(17 %) Problem 3: A thin layer of oil with index of refraction no-l .47 is floating above the water. The index of refraction of water is nw 13. The index of refraction of air is na-1. A light with wavelength λ = 625 nm goes in from the air to oil and water. 25% Part (a) Express the wavelength of the light in the oil, λο, in terms of λ and no. 쇼 25% Part (b) Express the minimum...
I dont understand thin film interference. Thanks in
advance
n-1.00 n-1.33 n=1 50 3. A thin film of thickness t and index of refraction 1.33 coats a glass with index of refraction 1.50 as shown above. Which of the following thicknesses t will not reflect light with wavelength 640 nm in air? (A) 160 nm (8) 240 nm (C) 360 nm (D) 480 nm 4. Lenses in fine quality cameras are coated to reduce the reflection from the lenses. If...
23 A piece of glass of index of refraction 1.50 is coated with a thin layer of magnesium fluoride of index of refraction 1.38. It is illuminated with light of wavelength 680 nm. Determine the minimum thickness of the coating that will result in no reflection
