consider a square parallel plate capacitor with side 20 cm and a separation d = 8...

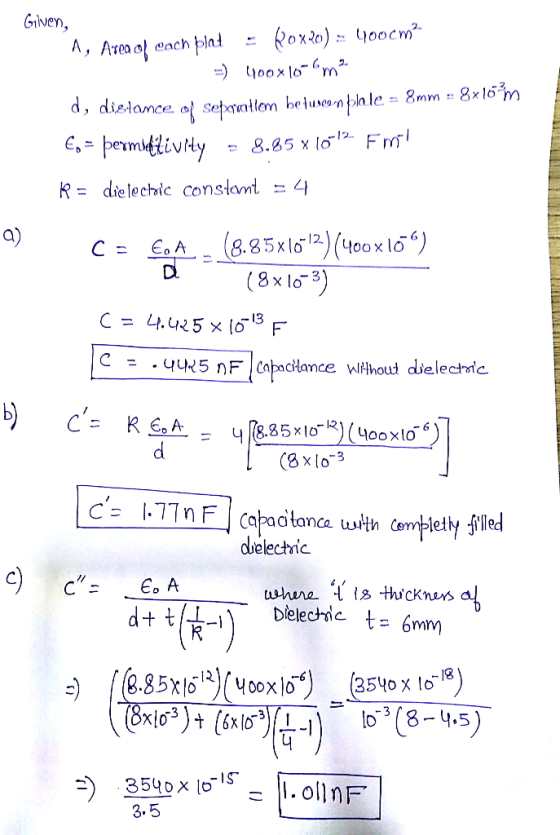

consider a square parallel plate capacitor with side 20 cm and a separation d = 8 mm. a dielectric ... Your question has been answered Let us know if you got a helpful answer. Rate this answer Question: Consider a square parallel plate capacitor with side 20 cm and a separation d = 8 mm. A dielectri... Consider a square parallel plate capacitor with side 20 cm and a separation d = 8 mm. A dielectric block of constant k = 4 has dimensions 20cm x 20cm x 8mm. (a) What is the capacity without dielectric? (b) What is the capacity if the dielectric block fills the space between the plates? (c) What is the capacity if a dielectric block of dimensions 20cm x 20cm x 6mm is inserted into the capacitor whose plates are 8mm apart? please solve each question and explain it step by step
Homework Answers
Add Answer to:
consider a square parallel plate capacitor with side 20 cm and a
separation d = 8...
A parallel-plate air capacitor of area A = 21.3 cm2 and plate separation of d =...
A parallel-plate air capacitor of area A = 21.3 cm2 and plate separation of d = 2.70 mm is charged by a battery to a voltage of 63.0 V. What is the charge on the capacitor? If a dielectric material with κ = 3.60 is inserted so that it fills the volume between the plates (with the capacitor still connected to the battery), how much additional charge will flow from the battery onto the positive plate?
8. A parallel-plate capacitor with plate separation of 1.0 cm has square plates, each with an...
8. A parallel-plate capacitor with plate separation of 1.0 cm has square plates, each with an area of 6.0 x 10-2 m2. What is the capacitance of this capacitor if a dielectric material with a dielectric constant of 2.4 is placed between the plates, completely filling them? (€0 = 8.85 x 10-12 c2Nm2) A) 15 x 10-12 F B) 15 x 10-14 F C) 64 x 10-14 F D) 1.3 x 10-12 F E) 1.3 x 10-10 F
A parallel-plate air capacitor of area A = 12.1 cm2 and plate separation of d = 3.90...
A parallel-plate air capacitor of area A = 12.1 cm2 and plate separation of d = 3.90 mm is charged by a battery to a voltage of 53.0 V. a)What is the charge on the capacitor? b)If a dielectric material with κ = 5.00 is inserted so that it fills the volume between the plates (with the capacitor still connected to the battery), how much additional charge will flow from the battery onto the positive plate?
A parallel plate capacitor has square plates of dimensions 5 times 5 cm and separation 2...
A parallel plate capacitor has square plates of dimensions 5 times 5 cm and separation 2 mm. The space between the plates is filled with a material of dielectric constant K= 4. The charges on the plates are plusminus 5 times 10^-8 C. Find: the capacitance; the potential difference between the plates; the magnitude of the electric field between the plates; the electric energy density between the plates; and the total electric energy.
8) A parallel-plate capacitor consists of two parallel, square plates that have dimensions 1.0 cm, by...
8) A parallel-plate capacitor consists of two parallel, square plates that have dimensions 1.0 cm, by 0 cm. If the plates are separated by 1.0 mm, and the space between them is filled with teflon, what is the capacitance? (The dielectric constant for teflon is 2.1.) A) 2.1 pF B) 0.89 pF C) 1.9 pF D) 0.44 p
A certain parallel plate capacitor has plate area A = 400 cm^2 and separation between the...
A certain parallel plate capacitor has plate area A = 400 cm^2
and separation between the plates is d=0.1 mm. The space between
the plates is filled with a material that has dielectric constant k
=3.0, for this material resistivity = 2 x 10^8 ohm m. A 12 volt
battery is connected across the capacitor. Draw circuit diagram.
Determine
(a) charge on the capacitor;
(b) resistance between the plates
( c ) current that leaks through the capacitor. (the leakage...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged by a battery to potential difference of 120 V, then disconnected. A dielectric slab, thickness 4.0 mm and dielectric constant 4.8, is placed symmetrically between the plates.(a) Calculate the capacitance before and after the slab is inserted.(b) Calculate the free charge q before and after the slab is inserted.(c) Calculate the magnitude of the electric field in the space between the plates and the...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the initial capacitance of the air-filled capacitor. Determine the charge on the...
A certain parallel plate capacitor has plate area A = 400 cm^2 and separation between the...
A certain parallel plate capacitor has plate area A = 400 cm^2 and separation between the plates is d=0,1 mm. The space between the plates is filled with a material that has dielectric constant k =3.0, for this material resistivity = 2 x 10^8 ohm m. A 12 volt battery is connected across the capacitor. Draw circuit diagram. Determine (a) charge on the capacitor; (b) resistance between the plates (c) current that leaks through the capacitor. (the leakage current)
A certain parallel plate capacitor has plate area A = 400 cm^2 and separation between the...
A certain parallel plate capacitor has plate area A = 400 cm^2 and separation between the plates is d=0.1 mm. The space between the plates is filled with a material that has dielectric constant k =3.0, for this material resistivity = 2 x 10^8 ohm m. A 12 volt battery is connected across the capacitor. Draw circuit diagram. Determine (a) charge on the capacitor; (b) resistance between the plates (c) current that leaks through the capacitor. (the leakage current)
8. A parallel-plate capacitor with plate separation of 1.0 cm has square plates, each with an area of 6.0 x 10-2 m2. What is the capacitance of this capacitor if a dielectric material with a dielectric constant of 2.4 is placed between the plates, completely filling them? (€0 = 8.85 x 10-12 c2Nm2) A) 15 x 10-12 F B) 15 x 10-14 F C) 64 x 10-14 F D) 1.3 x 10-12 F E) 1.3 x 10-10 F
A parallel plate capacitor has square plates of dimensions 5 times 5 cm and separation 2 mm. The space between the plates is filled with a material of dielectric constant K= 4. The charges on the plates are plusminus 5 times 10^-8 C. Find: the capacitance; the potential difference between the plates; the magnitude of the electric field between the plates; the electric energy density between the plates; and the total electric energy.
8) A parallel-plate capacitor consists of two parallel, square plates that have dimensions 1.0 cm, by 0 cm. If the plates are separated by 1.0 mm, and the space between them is filled with teflon, what is the capacitance? (The dielectric constant for teflon is 2.1.) A) 2.1 pF B) 0.89 pF C) 1.9 pF D) 0.44 p
A certain parallel plate capacitor has plate area A = 400 cm^2
and separation between the plates is d=0.1 mm. The space between
the plates is filled with a material that has dielectric constant k
=3.0, for this material resistivity = 2 x 10^8 ohm m. A 12 volt
battery is connected across the capacitor. Draw circuit diagram.
Determine
(a) charge on the capacitor;
(b) resistance between the plates
( c ) current that leaks through the capacitor. (the leakage...
A certain parallel plate capacitor has plate area A = 400 cm^2 and separation between the plates is d=0,1 mm. The space between the plates is filled with a material that has dielectric constant k =3.0, for this material resistivity = 2 x 10^8 ohm m. A 12 volt battery is connected across the capacitor. Draw circuit diagram. Determine (a) charge on the capacitor; (b) resistance between the plates (c) current that leaks through the capacitor. (the leakage current)
A certain parallel plate capacitor has plate area A = 400 cm^2 and separation between the plates is d=0.1 mm. The space between the plates is filled with a material that has dielectric constant k =3.0, for this material resistivity = 2 x 10^8 ohm m. A 12 volt battery is connected across the capacitor. Draw circuit diagram. Determine (a) charge on the capacitor; (b) resistance between the plates (c) current that leaks through the capacitor. (the leakage current)
