Needing assistance creating a PLC ladder logic diagram with timers

With the use of a normally open toggle and a normally closed push button

When the 1st button is pressed, light #1 comes on. After 10 seconds, light #2 comes on. Lastly, after an additional 10 seconds after the 2nd light, light #3 comes on. Needing to put a push-button switch that kills all 3 of the lights and the cycle should restart with the toggle being closed.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

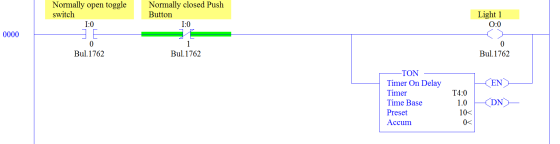

Rung 0000:- In this rung when toggle button ON, then light 1 will get ON and simultaneously timer 0 will get start

Rung 0001:- In this rung when DONE bit came from timer zero means timer accumulator values gets equal to the preset value, then light 2 will get ON and simultaneously timer 1 will get started

Rung 0002:- In this rung when DONE bit came from timer 1, then light 3 will get ON and simultaneously timer 1 will get started

In this process, if anyone pressed closed Push-button all-timer and outputs get turned OFF.
