What is the theoretical magnetic field around a current-carrying conductor which is an infinitely long cylinder?...

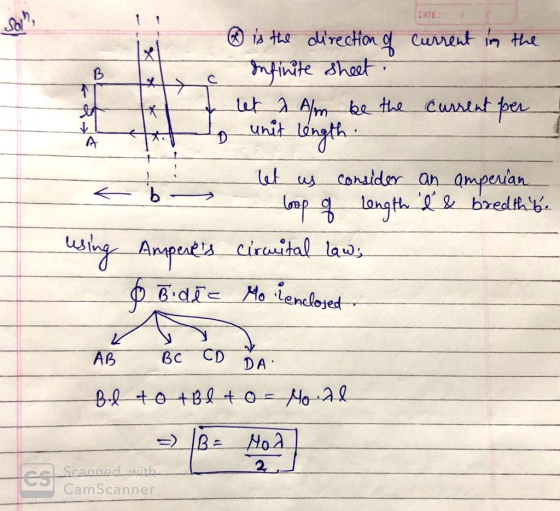

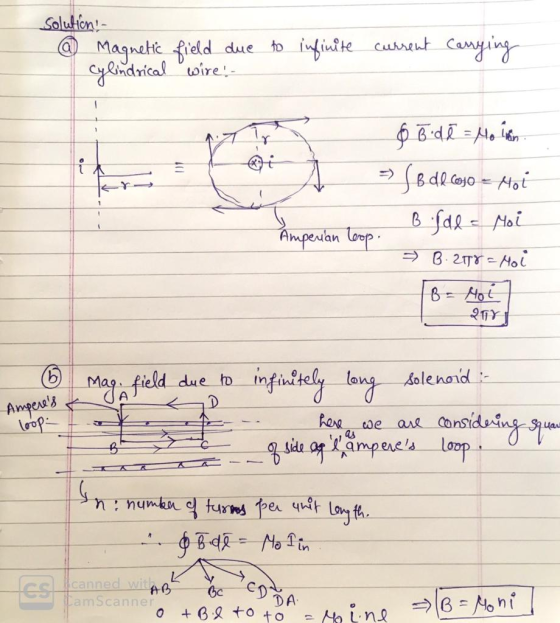

What is the theoretical magnetic field around a current-carrying conductor which is an infinitely long cylinder? What is the theoretical magnetic field around an infinitely long solenoid or planar sheet? (Use Ampere’s law to obtain these expressions). Note in particular the different dependence of the magnetic field on position for the two current geometries you have chosen.
please clear answer explaining the theory
Homework Answers
Add Answer to:
What is the theoretical magnetic field around a current-carrying
conductor which is an infinitely long cylinder?...
2) Consider an infinitely long circular hollow cylinder of radius a, carrying a surface current density/.-Id....
2) Consider an infinitely long circular hollow cylinder of radius a, carrying a surface current density/.-Id. Using Ampere's law, find the magnetic field intensity ll inside the cylinder. Assume the magnetic field ii - 0 outside the cylinder.
Consider a straight non-magnetic conductor with circular cross-section and a radius a carrying a current I...
Consider a straight non-magnetic conductor with circular cross-section and a radius a carrying a current I in the vertical direction. Using Ampere’s law find the magnetic field inside and outside the conductor.
An infinitely long conductor carrying current is bent at a right angle as shown in Figure...
An infinitely long conductor carrying current is bent at a right angle as shown in Figure 1. Point Pis located a distance b from the corner of the wire. Only one section of this current contributes to the magnetic field at pt. P. Why? The general formula (derived from the Biot-Savart Law) for the magnitude of the magnetic field a distance a away from a thin, straight conductor is: B = f (sin 8, - sin 02) For this problem,...
2. A long solenoid carrying a time-dependent current I(t) is wound on a hollow cylinder whose axis of symmetry is the z...
2. A long solenoid carrying a time-dependent current I(t) is wound on a hollow cylinder whose axis of symmetry is the z-axis. The solenoid's radius is a, and it has n turns per metre. (a) * Write down the magnetic intensity H(ที่ t) and magnetic field B(r,t) everywhere. What is the energy density in the magnetic field inside the solenoid? (b Find the electric field E(F,t) everywhere using Faraday's law in integral form. (c) * Find the magnetic vector potential...
compute the magnetic field intensity in an infinite long solid conductor of radius "a" that is...
compute the magnetic field intensity in an infinite long solid conductor of radius "a" that is placed along the z axis and carrying a current I in +z direction using ampere's circuital law
4. A long wire carrying a current in the az direction produces a magnetic field of Hol -a nl Find...
Very lost, and have no clue where to start.
4. A long wire carrying a current in the az direction produces a magnetic field of Hol -a nl Find the circulation of the region located around a point a distance b from the wire (see the sketch below) 2Tt 0 ok In the sketch, the area around the point is shown a circle with radius a. Note that the circle is one of many contour geometries that can be used...
Complete the following statement: The magnetic field around a circular "loop" carrying a current is the...
Complete the following statement: The magnetic field around a circular "loop" carrying a current is the closest thing to: a. Magnetic field of the Earth b. Magnetic field of a magnetic short bar c. Rectangular loop with current d. A long stretched cable that carries current and. Two long stretched cables that both carry currents in opposite directions
How does the magnitude of magnetic field around a long straught current carrying wire of radius...
How does the magnitude of magnetic field around a long straught current carrying wire of radius R depend on radial distance r R from the long anis OF wire ? Assuming that the current is steady and uniformly distrbule within v the wire, How does, the field magnitude depera on the radial distance rar from the wire axis
How does the magnitude of the magnetic field around a long straight current-carrying wire of radius...
How does the magnitude of the magnetic field around a long straight current-carrying wire of radius R depend on radial distance r > R from the long axis of the wire? Assuming that the current is steady and uniformly distributed within the wires, how does the field magnitude depend on the radial distance r < R from the wire axis?
Magnetic Field inside a Very Long Solenoid Learning Goal: To apply Ampère's law to find the magnetic field inside an i...
Magnetic Field inside a Very
Long Solenoid Learning Goal: To apply Ampère's law to find the
magnetic field inside an infinite solenoid. In this problem we will
apply Ampère's law, written ?B? (r? )?dl? =?0Iencl, to calculate
the magnetic field inside a very long solenoid (only a relatively
short segment of the solenoid is shown in the pictures). The
segment of the solenoid shown in (Figure 1) has length L, diameter
D, and n turns per unit length with each...
2) Consider an infinitely long circular hollow cylinder of radius a, carrying a surface current density/.-Id. Using Ampere's law, find the magnetic field intensity ll inside the cylinder. Assume the magnetic field ii - 0 outside the cylinder.
An infinitely long conductor carrying current is bent at a right angle as shown in Figure 1. Point Pis located a distance b from the corner of the wire. Only one section of this current contributes to the magnetic field at pt. P. Why? The general formula (derived from the Biot-Savart Law) for the magnitude of the magnetic field a distance a away from a thin, straight conductor is: B = f (sin 8, - sin 02) For this problem,...
2. A long solenoid carrying a time-dependent current I(t) is wound on a hollow cylinder whose axis of symmetry is the z-axis. The solenoid's radius is a, and it has n turns per metre. (a) * Write down the magnetic intensity H(ที่ t) and magnetic field B(r,t) everywhere. What is the energy density in the magnetic field inside the solenoid? (b Find the electric field E(F,t) everywhere using Faraday's law in integral form. (c) * Find the magnetic vector potential...
Very lost, and have no clue where to start.
4. A long wire carrying a current in the az direction produces a magnetic field of Hol -a nl Find the circulation of the region located around a point a distance b from the wire (see the sketch below) 2Tt 0 ok In the sketch, the area around the point is shown a circle with radius a. Note that the circle is one of many contour geometries that can be used...
How does the magnitude of magnetic field around a long straught current carrying wire of radius R depend on radial distance r R from the long anis OF wire ? Assuming that the current is steady and uniformly distrbule within v the wire, How does, the field magnitude depera on the radial distance rar from the wire axis
Magnetic Field inside a Very
Long Solenoid Learning Goal: To apply Ampère's law to find the
magnetic field inside an infinite solenoid. In this problem we will
apply Ampère's law, written ?B? (r? )?dl? =?0Iencl, to calculate
the magnetic field inside a very long solenoid (only a relatively
short segment of the solenoid is shown in the pictures). The
segment of the solenoid shown in (Figure 1) has length L, diameter
D, and n turns per unit length with each...
