How do I construct a flow chart/separation scheme to separate and purify 40% methyl 4-aminobenzoate, 50%...

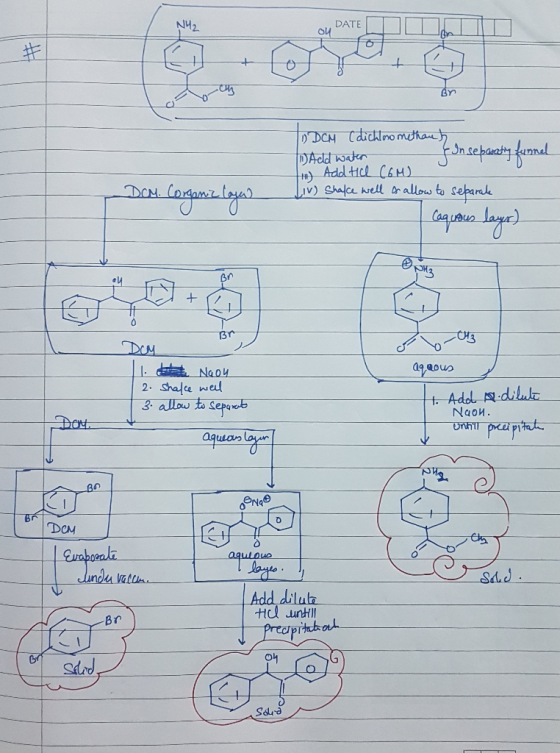

How do I construct a flow chart/separation scheme to separate and purify 40% methyl 4-aminobenzoate, 50% benzoin, and 10% 1,4-bromobenzene?

science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
How do I construct a flow chart/separation scheme to separate and purify 40% methyl 4-aminobenzoate, 50%...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Separation and Purification Scheme

    I'm to develop a separation or purification scheme for the following mixtures:50% benzoic acid, 40% benzoin, 10% 1,4-dibromobenzene50% fluorene, 40% o-toluic acid, 10% 1,4-dibromobenzene50% ethyl 4-aminobenzoate, 40% benzoin, 10% 1,4-dibromobenzene50% ethyl 4-aminobenzoate, 40% benzil, 10% 1,4-dibromobenzene50% o-toluic acid, 40% fluorene, 10% 1,4-dibromobenzeneThe mixture is first dissolved in either diethyl ether or methylene chloride. And the available reagents are 1M NaOH, 6M NaOH, 1M HCl, 6M HCl, 1M NaHCO3, saturatedsodium chloride, diethyl ether, 95% ethanol, methanol, isopropyl alcohol, acetone, hexane, toluene,...

  • Organic Chemistry: Separation and Purification Scheme How do I isolate a mixture of 1,4-dibromobenzene from methyl...

    Organic Chemistry: Separation and Purification Scheme How do I isolate a mixture of 1,4-dibromobenzene from methyl chloride? Can I use the following reagents or is there a technique I should consider to separate these two? The reagents available are: 1M NaOH, 6M NaOH, 1M HCl, 6M HCl, 1M NaHCO3, saturated sodium chloride, diethyl ether, 95% ethanol, methanol, isopropyl aochol, acetone, hexane, toluene, methylene chloride, and granular anhydrous sulfate.

  • Separation scheme for 4-aminoacetophenone- 50% 1,2,3,4- tetrachlorobenzene- 40% 1,4 dibromobenzene & experiment 4-aminoacetophenone-50% 1,2,3,4- tetrachlorobenzene-40% 1,4...

    Separation scheme for 4-aminoacetophenone- 50% 1,2,3,4- tetrachlorobenzene- 40% 1,4 dibromobenzene & experiment 4-aminoacetophenone-50% 1,2,3,4- tetrachlorobenzene-40% 1,4 dibromobenzene

  • I have a mixture of three compounds and I want to separate them. The compounds are...

    I have a mixture of three compounds and I want to separate them. The compounds are ethyl aminobenzoate (50%), benzoin (40%), and 1,4-dibromobenzene(10%). I started the experiment by dissolving the mixture in the methylene chloride, then I added HCl, so I got two layers, first one is aqueous layer that contain ethyl aminobenzoate, and the second one is organic layer that contain benzoin and 1,4-dibromobenzene. After that I add NaOH to aqueous layer and I got a solid, then I...

  • I need a flow chart showing the SEPARATION SCHEME from benzophenone to triphenylmethanol. I really, really need your hel...

    I need a flow chart showing the SEPARATION SCHEME from benzophenone to triphenylmethanol. I really, really need your help on this one. This is a speration scheme not reaction mechanism.

  • Create a separation scheme flow chart/diagram to isolate methyl salicylate from a product mixture containing the...

    Create a separation scheme flow chart/diagram to isolate methyl salicylate from a product mixture containing the following: Methyl salicylate, methanol, concentrated sulfuric acid. Lab procedure for separation: Extract with 25mL dichloromethane. Drain the bottom organic layer into a beaker. Repeat the extraction with another 25mL portion of dichloromethane, isolate the bottom layer, and then combine it with the first dichloromethane extract. Pour the combined extracts back into the funnel and wash the solution with 25mL of water. Drain the lower...

  • Draw a flow chart to explain how you might separate a mixture of benzoic acid, aniline,...

    Draw a flow chart to explain how you might separate a mixture of benzoic acid, aniline, and 1,4-dimethoxybenzene with the general details of how the separation should be accomplished, including the curved arrow mechanisms of all the reactions.

  • For this separation and purification scheme, I have (50% Fluorene , 40% o-Toluic Acid, 10% 1,4-dibromobenzene) and had t...

    For this separation and purification scheme, I have (50% Fluorene , 40% o-Toluic Acid, 10% 1,4-dibromobenzene) and had to create my own lab. I already did the experiment (it went rough), and now have to write a formal report on the experiment. Can someone help me out with making the digital versions of the compounds and the reactions I would've needed, I used Ether to dissolve the sample initially, with NaOH and HCl for the respective layers, and Anhydrous Sodium...

  • Using aqueous HCl, NaHCO3, or NaOH, devise a flowchart separation scheme to separate the following two-component...

    Using aqueous HCl, NaHCO3, or NaOH, devise a flowchart separation scheme to separate the following two-component mixtures. All the substances are soluble in ether. Be sure to indicate how you would recover each of the compounds from its respective salts. 4. Using aqueous hydrochloric acid, sodium bicarbonate, or sodium hydroxide solutions, devise a flow-chart separation scheme to separate the following two-component mixtures. All the substances are soluble in ether. Be sure to indicate how you would recover each of the...

  • I need to come up with a separation and purification scheme procedure of a mixture containing...

    I need to come up with a separation and purification scheme procedure of a mixture containing 45% 4-aminoacetophenone, 45% 1,2,4,5-tetrachlorobenzene, and 10% 1,4-dibromobenzene. How would I go about this? Please explain step by step Addition Information ( The mixture will contain 45% of the neutral compound, 45% of acidic/basic compound, and 10% of neutral impurity (1,4-dibromobenzene). The goal is to isolate the neutral compound (which is present in your mixture up to 45%) and the acidic/basic compound (which is present...
