Question

Hello,

I am supposed to make Logisim circuit.

Can you please make 4 circuits 1,2,3,4 and all 4 in one circuit? if you don't want to make every circuit in one circuit that is fine but please,

make sure you make each circuit 1,2,3,4

I have been trying to make the circuit but it is so confusing.

A,B,C,D are inputs and W,X,Y,Z are outputs.

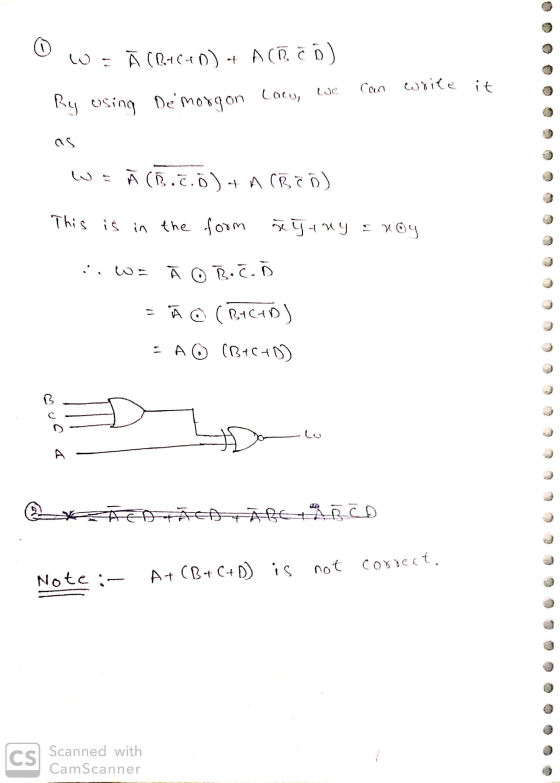

1. W = A'(B+C+D) + A(B'C'D') = A + (B+C+D) /// (I am guessing, not sure if it is A + (B+C+D))

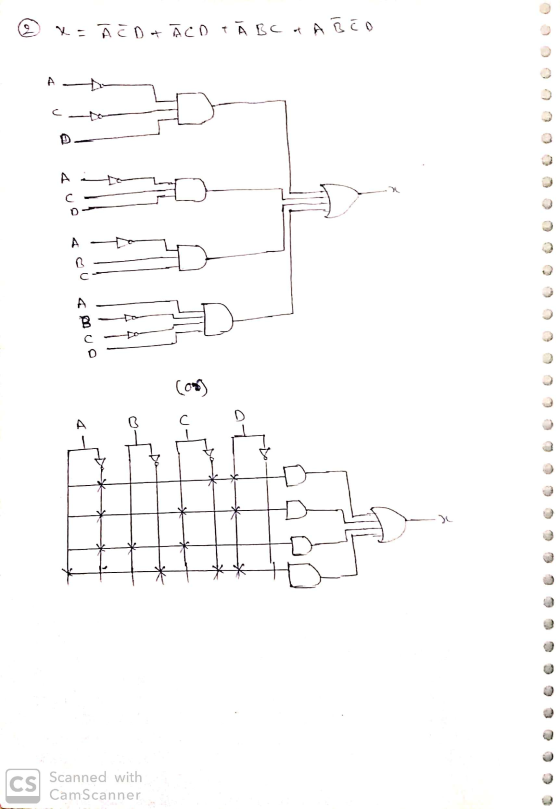

2. X = A'C'D' + A'CD + A'BC + AB'C'D

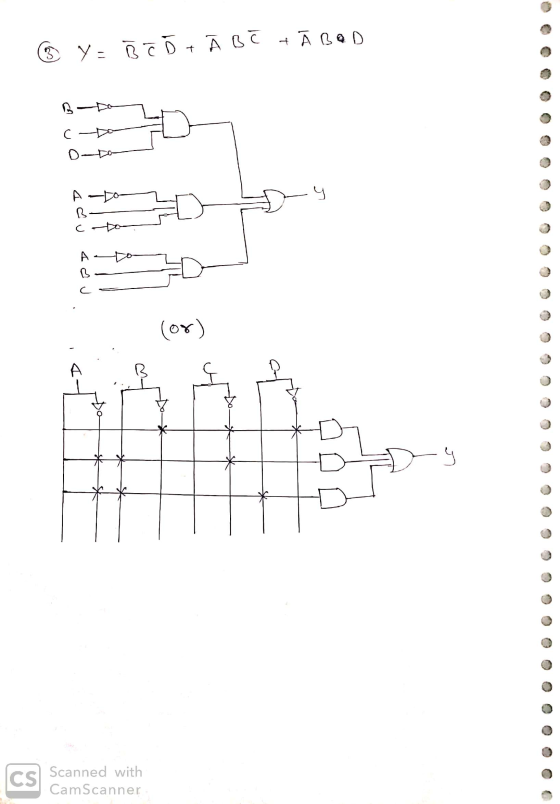

3. Y = B'C'D' + A'BC' + A'BD

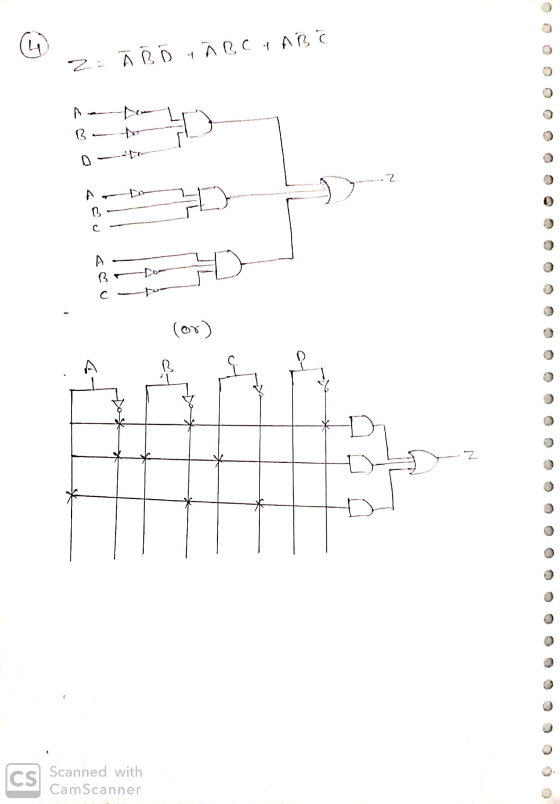

4. Z = A'B'D' + A'BC + AB'C'

Answer 1
