A converging lens with a focal length of 40 cm and a diverging lens with a...

A converging lens with a focal length of 40 cm and a diverging lens with a focal length of -40 cm are 160 cm apart. A 2 cm tall object is 60 cm in front of the converging lens.

a. Use ray tracing to find the position and height of the image. To do this, accurately use a ruler or paper with a grid. Determine the image distance and image height by making measurements on your diagram.

b. Calculate the image height and and image position relative to the second lens. Compare your answer with part a.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

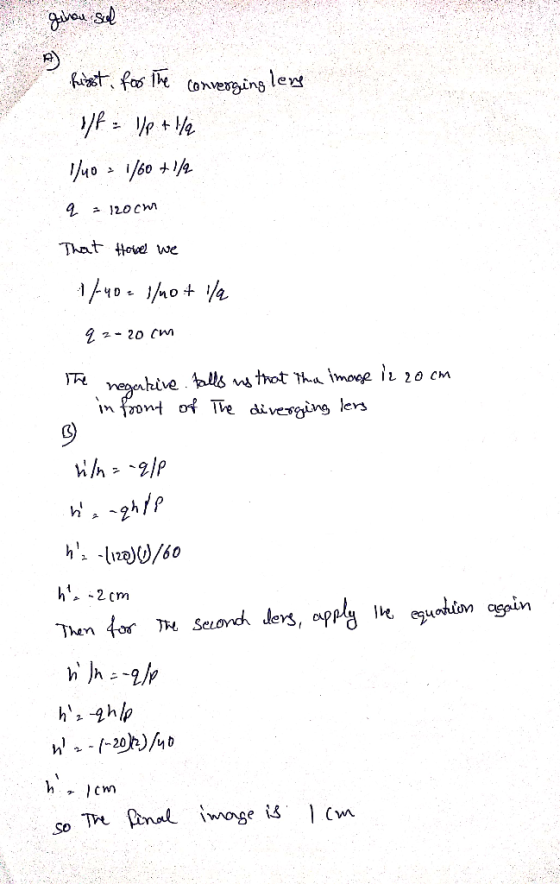

Answer #1

0 0
