THE QUESTION I AM SHARING WITH YOU IS THE QUESTION FROM THE SUBJECT ELECTROMAGNETICS IN THIS QUESTION WE HAVE TO USE MATLAB PLEASE COMMENT EACH STEP AND DO YOUR BEST TO SLOVE IT

Question2: [5 marks]

Use MATLAB to write a generic program to find “E” at point P (x1, y1, z1) in free space due to the following charge distributions: point charge, A nC, at point P (x2, y2, z2) in free space; uniform line charge density, B nC/m, at x = t, y = t1; uniform surface charge density, C nC/m2 at x = t2.
Where A, B, C, x1, y1, z1 x2, y2, z2, t, t1& t2 can take any arbitrary value from real numbers

Answer 1

If you have any doubts , ask me in comment section.

Let's take this example :

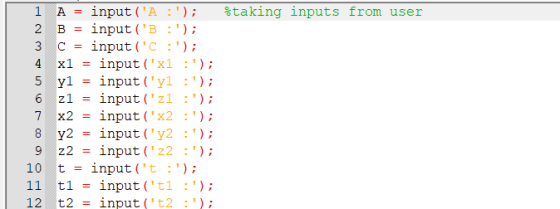

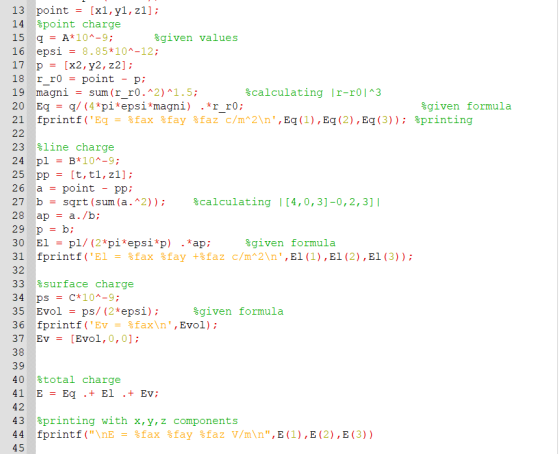

Code :

OUTPUT :

RAW_CODE :

A = input('A :'); %taking inputs from user
B = input('B :');
C = input('C :');
x1 = input('x1 :');
y1 = input('y1 :');
z1 = input('z1 :');
x2 = input('x2 :');
y2 = input('y2 :');
z2 = input('z2 :');
t = input('t :');
t1 = input('t1 :');
t2 = input('t2 :');
point = [x1,y1,z1];
%point charge
q = A*10^-9; %given values
epsi = 8.85*10^-12;
p = [x2,y2,z2];
r_r0 = point - p;
magni = sum(r_r0.^2)^1.5; %calculating |r-r0|^3
Eq = q/(4*pi*epsi*magni) .*r_r0; %given formula
fprintf('Eq = %fax %fay %faz c/m^2\n',Eq(1),Eq(2),Eq(3)); %printing

%line charge
pl = B*10^-9;
pp = [t,t1,z1];
a = point - pp;
b = sqrt(sum(a.^2)); %calculating |[4,0,3]-0,2,3]|
ap = a./b;
p = b;
El = pl/(2*pi*epsi*p) .*ap; %given formula
fprintf('El = %fax %fay +%faz c/m^2\n',El(1),El(2),El(3));

%surface charge
ps = C*10^-9;
Evol = ps/(2*epsi); %given formula
fprintf('Ev = %fax\n',Evol);
Ev = [Evol,0,0];

%total charge
E = Eq .+ El .+ Ev;

%printing with x,y,z components
fprintf("\nE = %fax %fay %faz V/m\n",E(1),E(2),E(3))

Practical_calculations :
