X-ray diffraction was carried out on a sample of platinum (Pt, a silverish-white metal with an...

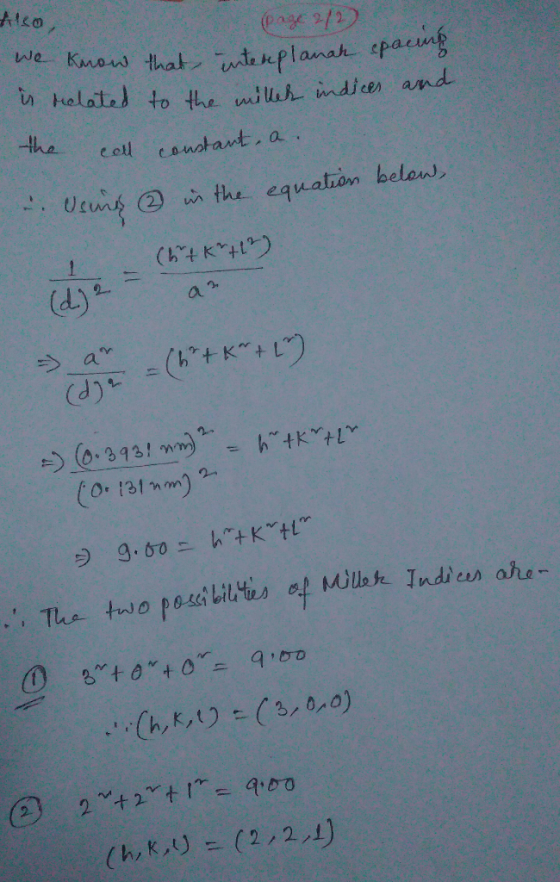

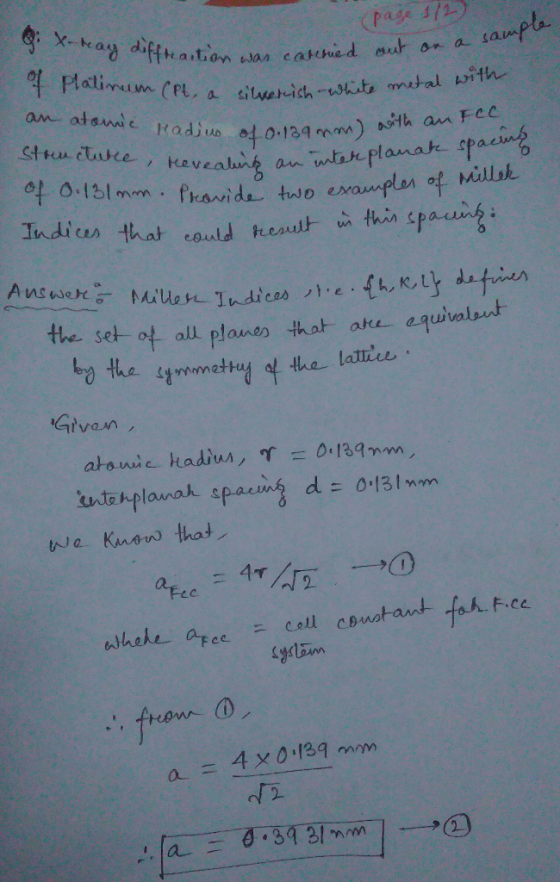

X-ray diffraction was carried out on a sample of platinum (Pt, a silverish-white metal with an atomic radius of 0.139 nm) with an FCC structure, revealing an interplanar spacing of 0.131 nm. Provide two examples of Miller Indicies that could result in this spacing.
Homework Answers
