Implement the following in Classless IP Addressing in C programming using decimal number system (a) Compute...

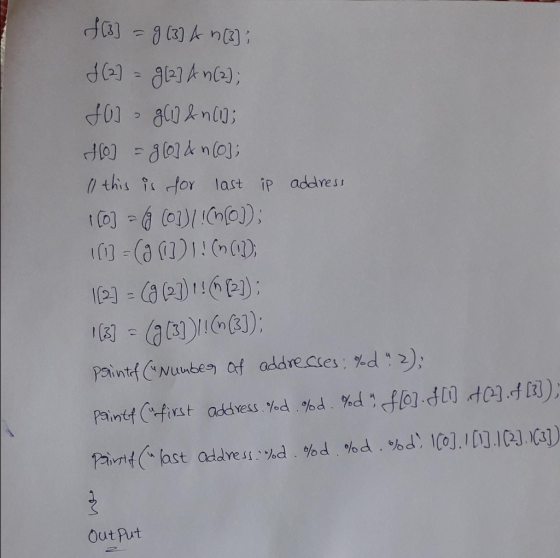

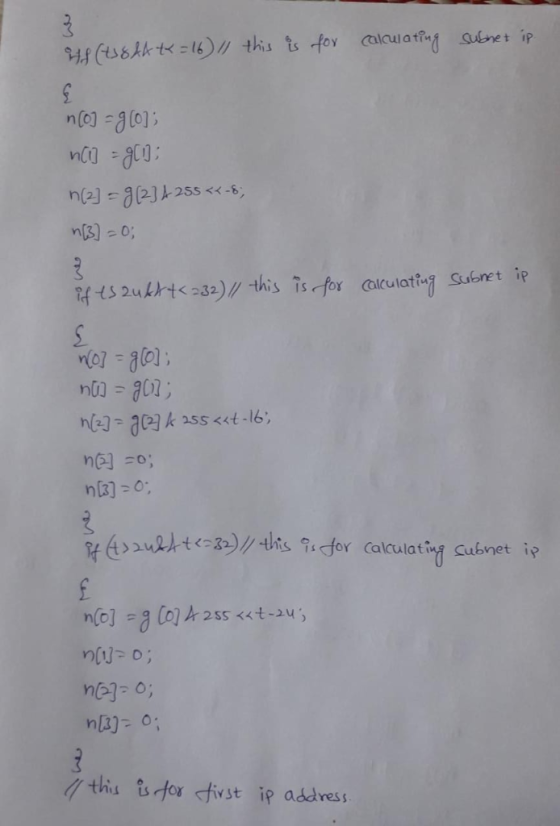

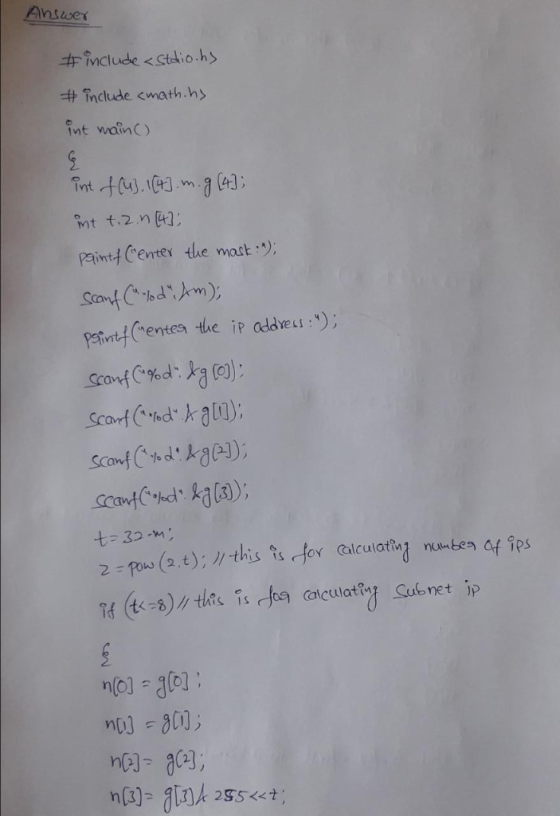

Implement the following in Classless IP Addressing in C programming using decimal number system

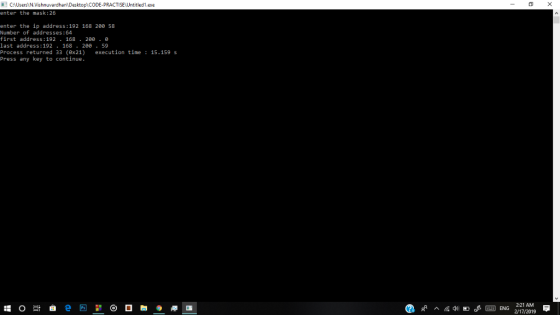

(a) Compute First Address, Last address and Number of address from given IP address and mask
Homework Answers
Add Answer to:
Implement the following in Classless IP Addressing in C
programming using decimal number system
(a) Compute...
Implement the following in Classless IP Addressing in C programming (b) Implement Subnetting Concepts
Implement the following in Classless IP Addressing in C programming (b) Implement Subnetting Concepts
Network IP Addressing Network Layout of 2 networks Given an IP address and mask of 172.23.29.0/24,...
Network IP Addressing Network Layout of 2 networks Given an IP address and mask of 172.23.29.0/24, design an IP addressing scheme that satisfies the following requirements. Subnet B Specification This network requires space for 62 machines plus the router Number of bits in the subnet Blank 1 IP mask (binary) Blank 2 New IP mask (decimal) Blank 3 Maximum number of usable subnets of this size when using this mask (including the 0th subnet) Blank 4 Number of usable hosts...
Given an IP address and mask of 192.168.0.0 /24 (address / mask), design an IP addressing...
Given an IP address and mask of 192.168.0.0 /24 (address / mask), design an IP addressing scheme that satisfies the following requirements. Network address/mask and the number of hosts for Subnets A and B will be provided by your instructor. Subnet Number of Hosts Subnet A 25 Subnet B 75 The 0th subnet is used. No subnet calculators may be used. All work must be shown on the other side of this page. Subnet A Specification Student Input Points Number...
Task 1: Design a Logical LAN Topology Step 1: Design an IP addressing scheme Given the IP address block of 192.168.7.0...
Task 1: Design a Logical LAN Topology Step 1: Design an IP addressing scheme Given the IP address block of 192.168.7.0 /24, design an IP addressing scheme that satisfies the following requirements Subnet Subnet A Subnet B Number of Hosts 110 54 The 0 subnet is used. No subnet calculators may be used. Create the smallest possible subnets that satisfy the requirements for hosts. Assign the first usable subnet to Subnet A. Subnet A Specification Student Input Number of bits...
Part 1: Develop the IPV4 Addressing Scheme Given an IP address and mask of 192.168.1.0 /24...
Part 1: Develop the IPV4 Addressing Scheme Given an IP address and mask of 192.168.1.0 /24 (address / mask), design an IP addressing scheme that satisfies the following requirements Subnet Number of Hosts Subnet A 20 Subnet B 60 Use subnet zero for the first subnet. No subnet calculators are allowed Host computers will use the last IP address in the subnet. The network router will use the first usable host address. The switch will use the second usable host...
Classless Inter-Domain Routing (CIDR) is a method for allocating IP addresses and routing Internet Protocol packets....
Classless Inter-Domain Routing (CIDR) is a method for allocating IP addresses and routing Internet Protocol packets. Classless Inter-Domain Routing allocates address space to Internet service providers and end users on any address bit boundary, instead of on 8-bit segments. CIDR notation is a syntax of specifying IP addresses and their associated routing prefix. It appends a slash character to the address and the decimal number of leading bits of the routing prefix. 192.168.100.0/24 represents the given IPv4 address and its...
In a class B subnet, we know the IP address of one of the hosts and...
In a class B subnet, we know the IP address of one of the hosts and the subnet mask as given below: IP Address: 188.48.82.176 Subnet mask: 255.255.255.248 1) What is the first valid host address in the subnet? (in dotted decimal) 2) What is the last valid address in the subnet? (in dotted decimal) 3) What is the subnet network address? (in dotted decimal) 4) What is the subnet broadcast address? (in dotted decimal) 5) What is the number...
Step 2. Basic IP addressing. Task: Use the IP address chart and your knowledge of IP...
Step 2. Basic IP addressing. Task: Use the IP address chart and your knowledge of IP address classes to answer the following questions l. What is the decimal and binary range of the first octet of all possible Class B IP addresses? Decimal: From: To: Binary: 2. Which octet(s) represent the network portion of a Class C IP address? 3. Which octet(s) represent the host portion of a Class A IP address? Io: Step 3. Determine the host and network...
using the information given below . what is the ip address , subnet mask , default...
using the information given below
. what is the ip address , subnet mask , default gateway?
** corrections
# of bits in subnet for A
:6
# of bits in submet for B:
3
PC-A
R1 G0/0
R GO/1
S1
PC-B ?
assign the IP ADDRESS information with given information
Given, IP address: 202.44.66.0/24 For Subnet A: It needs 2 valid hosts 2 valid hosts + 2 (network and broadcast) = 22 i.e., It needs 2 bit as host...
Subnet A Subnet B FO/6 PC-A Golo>< 601 R1 Fo/S PC-B $1 Develop the IPv4 Addressing...
Subnet A Subnet B FO/6 PC-A Golo>< 601 R1 Fo/S PC-B $1 Develop the IPv4 Addressing Scheme Given an IP address and mask of 209.165.201.0/24 (address / mask), design an IP addressing scheme that satisfies the following requirements. Work out the subnetting details and: 1. Fill in the Subnetting table with subnets details (20 points) 2. Fill in the Devices Addressing table (5.5 points) Subnet Number of Hosts Subnel A 40 Subnet B 120 Subnet C 5 Subnet D 12...
Task 1: Design a Logical LAN Topology Step 1: Design an IP addressing scheme Given the IP address block of 192.168.7.0 /24, design an IP addressing scheme that satisfies the following requirements Subnet Subnet A Subnet B Number of Hosts 110 54 The 0 subnet is used. No subnet calculators may be used. Create the smallest possible subnets that satisfy the requirements for hosts. Assign the first usable subnet to Subnet A. Subnet A Specification Student Input Number of bits...
Part 1: Develop the IPV4 Addressing Scheme Given an IP address and mask of 192.168.1.0 /24 (address / mask), design an IP addressing scheme that satisfies the following requirements Subnet Number of Hosts Subnet A 20 Subnet B 60 Use subnet zero for the first subnet. No subnet calculators are allowed Host computers will use the last IP address in the subnet. The network router will use the first usable host address. The switch will use the second usable host...
In a class B subnet, we know the IP address of one of the hosts and the subnet mask as given below: IP Address: 188.48.82.176 Subnet mask: 255.255.255.248 1) What is the first valid host address in the subnet? (in dotted decimal) 2) What is the last valid address in the subnet? (in dotted decimal) 3) What is the subnet network address? (in dotted decimal) 4) What is the subnet broadcast address? (in dotted decimal) 5) What is the number...
Step 2. Basic IP addressing. Task: Use the IP address chart and your knowledge of IP address classes to answer the following questions l. What is the decimal and binary range of the first octet of all possible Class B IP addresses? Decimal: From: To: Binary: 2. Which octet(s) represent the network portion of a Class C IP address? 3. Which octet(s) represent the host portion of a Class A IP address? Io: Step 3. Determine the host and network...
using the information given below
. what is the ip address , subnet mask , default gateway?
** corrections
# of bits in subnet for A
:6
# of bits in submet for B:
3
PC-A
R1 G0/0
R GO/1
S1
PC-B ?
assign the IP ADDRESS information with given information
Given, IP address: 202.44.66.0/24 For Subnet A: It needs 2 valid hosts 2 valid hosts + 2 (network and broadcast) = 22 i.e., It needs 2 bit as host...
Subnet A Subnet B FO/6 PC-A Golo>< 601 R1 Fo/S PC-B $1 Develop the IPv4 Addressing Scheme Given an IP address and mask of 209.165.201.0/24 (address / mask), design an IP addressing scheme that satisfies the following requirements. Work out the subnetting details and: 1. Fill in the Subnetting table with subnets details (20 points) 2. Fill in the Devices Addressing table (5.5 points) Subnet Number of Hosts Subnel A 40 Subnet B 120 Subnet C 5 Subnet D 12...
