A given fuel cell has continuous 150 A DC, an operating voltage of 0.55 V, and...

A given fuel cell has continuous 150 A DC, an operating voltage of 0.55 V, and an overall internal resistance of 3 mΩ at 1.4 A/cm^2 current density.

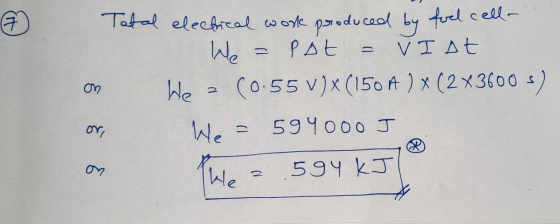

What is the total electrical work produced in 2 hours?

(a) 569 kj

(b) 396 kj

(c) 359 kj

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
