A point charge q1q1 = -4.00 nCnC is at the point xx = 0.60 mm, yy...

A point charge q1q1 = -4.00 nCnC is at the point xx = 0.60 mm, yy = 0.80 mm , and a second point charge q2q2 = +6.00 nCnC is at the point xx = 0.60 mm , yy = 0.

A) Calculate the magnitude of the net electric field at the origin due to these two point charges

B) Calculate the direction of the net electric field at the origin due to these two point charges

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

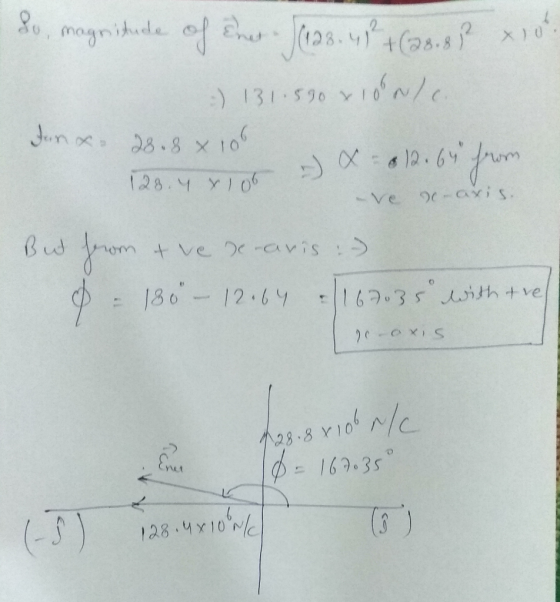

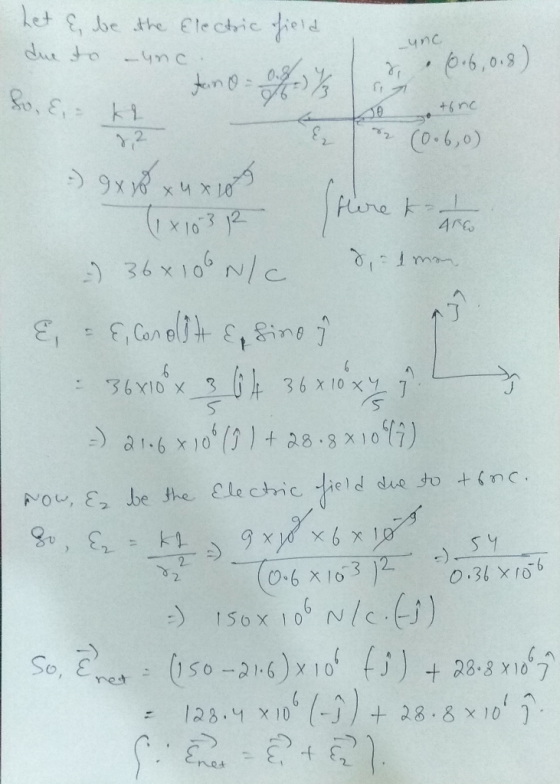

Answer #1

0 0
Add a comment
