Capacitors of 4 micro-farads, 8 micro-farads, and 11 micro-farads are connected purely in series to a...

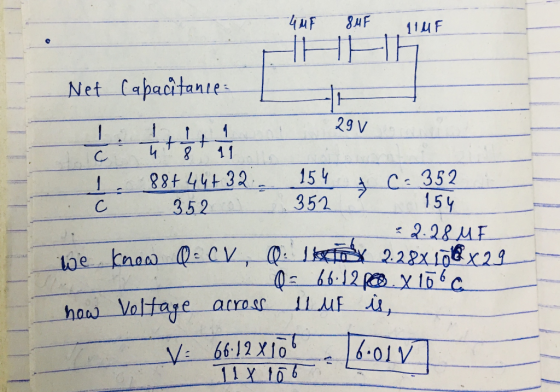

Capacitors of 4 micro-farads, 8 micro-farads, and 11 micro-farads are connected purely in series to a 29 volt battery. What is the voltage across the 11 micro-farad capacitor in Volts?
Homework Answers
Add Answer to:
Capacitors of 4 micro-farads, 8 micro-farads, and 11
micro-farads are connected purely in series to a...
Capacitors of 5 micro-farads, 8 micro-farads, and 16 micro-farads are connected purely in parallel to a...
Capacitors of 5 micro-farads, 8 micro-farads, and 16 micro-farads are connected purely in parallel to a 6 volt battery. What is the total stored energy in all three capacitors in micro-joules?
Capacitors of C1 = 9 micro-farads, C2 = 8 micro-farads, and C3 = 8 micro-farads are...
Capacitors of C1 = 9 micro-farads, C2 = 8 micro-farads, and C3 = 8 micro-farads are connected purely in parallel to a 9 volt battery. What is the stored energy in C2 in micro-joules?
2) Capacitors of C1 = 3 micro-farads, C2 = 6 micro-farads, and C3 = 3 micro-farads...
2) Capacitors of C1 = 3 micro-farads, C2 = 6 micro-farads, and C3 = 3 micro-farads are connected purely in parallel to a 26 volt battery. What is the charge in C2 in micro-coulombs?
A capacitor has a capacitance of 27 micro-farads without a dielectric while connected to a 23...
A capacitor has a capacitance of 27 micro-farads without a dielectric while connected to a 23 volt battery. Then the distance between the plates is decreased by a factor of 4 and a dielectric with a dielectric constant of 2.58 is inserted between the plates of the capacitor while still connected to the same battery. What is voltage, in volts, across the capacitor after the dielectric and the distance between the plates have been changed?
A capacitor has a capacitance of 49 micro-farads without a dielectric while connected to a 20...
A capacitor has a capacitance of 49 micro-farads without a dielectric while connected to a 20 volt battery. Then the distance between the plates is decreased by a factor of 5 and a dielectric with a dielectric constant of 2.29 is inserted between the plates of the capacitor while still connected to the same battery. What is voltage, in volts, across the capacitor after the dielectric and the distance between the plates have been changed?
7) A 11 volt battery is connected in series to a resistor of 8 kilo-ohms and...
7) A 11 volt battery is connected in series to a resistor of 8 kilo-ohms and a capacitor of 4 micro-farads. What is the time constant in milli-second?
5) Three capacitors, all initially without any dielectrics inserted, of C1 = 2 micro-farads, C2 =...
5) Three capacitors, all initially without any dielectrics inserted, of C1 = 2 micro-farads, C2 = 7 micro-farads, and C3 = 11 micro-farads, are connected purely in series to a battery and the total stored energy of all three capacitors is 208 micro-joules. Then, the plates of C1 are brought closer by a factor of 2 and a dielectric with a dielectric constant of 1.8 is inserted into C2 while still connected in series to the same battery. (C3 does...
A capacitor of 16 micro-farads is connected to a 23 volt battery. The distance between the...
A capacitor of 16 micro-farads is connected to a 23 volt battery. The distance between the plates of the capacitor is reduced by a factor of 3.5 while the capacitor is still connected to the battery. What is the capacitance of the capacitor after the distance between the plates is changed, in micro-farads?
Question 10 10.5 pts A capacitor of 8 micro-farads is connected to a 20 volt battery....
Question 10 10.5 pts A capacitor of 8 micro-farads is connected to a 20 volt battery. The distance between the plates of the capacitor is increased by a factor of 3.0 while the capacitor is still connected to the battery. The battery is then disconnected from the plates, and then the plates are moved closer by a factor of 4.7. In their final configuration, what is the charge on each sheet in micro-coulombs?
A 93 volt battery is connected in series to a 10 Ohm and a 2 micro-farad...
A 93 volt battery is connected in series to a 10 Ohm and a 2 micro-farad capacitor. What is the current in the circuit, in amps, 35 micro-seconds after the battery is connected?
Question 10 10.5 pts A capacitor of 8 micro-farads is connected to a 20 volt battery. The distance between the plates of the capacitor is increased by a factor of 3.0 while the capacitor is still connected to the battery. The battery is then disconnected from the plates, and then the plates are moved closer by a factor of 4.7. In their final configuration, what is the charge on each sheet in micro-coulombs?
