Question

JAVA: (29.1) The text introduced Prim’s algorithm for finding a minimum spanning tree. Kruskal’s algorithm is another well-known algorithm for finding a minimum spanning tree. The algorithm repeatedly finds a minimum- weight edge and adds it to the tree if it does not cause a cycle. The process ends when all vertices are in the tree. Design and implement an algorithm for finding an MST using Kruskal’s algorithm.

Answer 1

STEPS

1. first we need to sort the edges in ascending order of weights
   • in code i used priority queue to sort the edges
   • here is snippet of code used:
     • for (int i = 0; i <allEdges.size() ; i++) {
       pq.add(allEdges.get(i));
       }
     • allEdges is the arrayList of Edge type which containing all nodes
     • Edge is another class implemented.
2. select the edge of least weight and check if it forms a cycle in the tree including selected edge: if yes=> ignore it, if NO=> add it to spanning tree.
   • for above step i used while loop going through vertices to find if this edge creates cycle.

   • here is snippet of code :

     • while(index<vertices-1){
       Edge edge = pq.remove();
       //check if adding this edge creates a cycle
       int x_set = find(parent, edge.source);
       int y_set = find(parent, edge.dest);

       if(x_set==y_set){
       //ignore, will create cycle
       }else {
       //add it to our final result
       mst.add(edge);

3. until spanning tree has vertices-1(v-1: v is vertices in graph), repeat the step 2.

java code:

import java.util.ArrayList; import java.util.Comparator; import java.util.PriorityQueue; class KrushkalMST { static class Edge { int source; int dest; int weight; public Edge(int source, int dest, int weight) { this.source = source; this.dest = dest; this.weight = weight; } } static class Graph { int vertices; ArrayList<Edge> allEdges = new ArrayList<>(); Graph(int vertices) { this.vertices = vertices; } public void addEgde(int source, int dest, int weight) { Edge edge = new Edge(source, dest, weight); allEdges.add(edge); //add to total edges }    public void kruskalMST(){ PriorityQueue<Edge> pq = new PriorityQueue<>(allEdges.size(), Comparator.comparingInt(o -> o.weight)); //add all the edges to priority queue, //sort the edges on weights for (int i = 0; i <allEdges.size() ; i++) { pq.add(allEdges.get(i)); } //create a parent [] int [] parent = new int[vertices]; //makeset makeSet(parent); ArrayList<Edge> mst = new ArrayList<>(); //process vertices - 1 edges int index = 0; while(index<vertices-1){ Edge edge = pq.remove(); //check if adding this edge creates a cycle int x_set = find(parent, edge.source); int y_set = find(parent, edge.dest); if(x_set==y_set){ //ignore, will create cycle }else { //add it to our final result mst.add(edge); index++; union(parent,x_set,y_set); } } //print MST System.out.println("Minimum Spanning Tree: "); printGraph(mst); } public void makeSet(int [] parent){ //Make set- creating a new element with a parent pointer to itself. for (int i = 0; i <vertices ; i++) { parent[i] = i; } } public int find(int [] parent, int vertex){ //chain of parent pointers from x upwards through the tree // until an element is reached whose parent is itself if(parent[vertex]!=vertex) return find(parent, parent[vertex]);; return vertex; } public void union(int [] parent, int x, int y){ int x_set_parent = find(parent, x); int y_set_parent = find(parent, y); //make x as parent of y parent[y_set_parent] = x_set_parent; } public void printGraph(ArrayList<Edge> edgeList){ for (int i = 0; i <edgeList.size() ; i++) { Edge edge = edgeList.get(i); System.out.println("Edge-" + i + " source: " + edge.source + " destination: " + edge.dest + " weight: " + edge.weight); } } } public static void main(String[] args) { int vertices = 6; Graph graph = new Graph(vertices); graph.addEgde(0, 1, 4); graph.addEgde(0, 2, 3); graph.addEgde(1, 2, 1); graph.addEgde(1, 3, 2); graph.addEgde(2, 3, 4); graph.addEgde(3, 4, 2); graph.addEgde(4, 5, 6); graph.kruskalMST(); } }

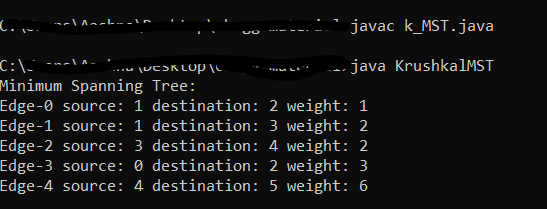

output:

take example:

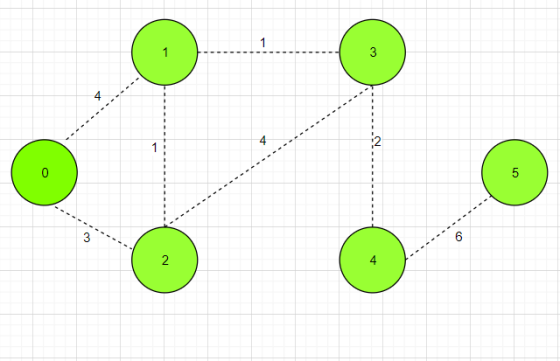

given graph:

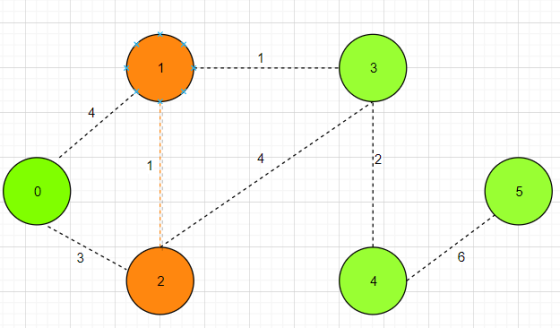

#1: there is no cycle formed by including edge 1-2, so we will include it:

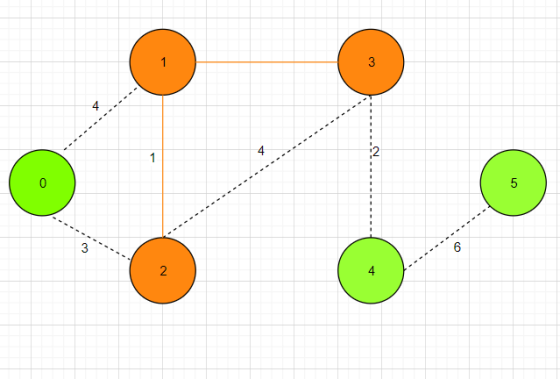

#2: similarly there is no cycle is formed by edge 1-3, we will include this edge also:

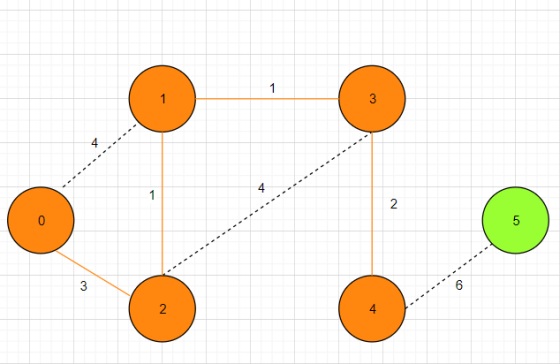

#3, #4: similarly we will include edge 3-4 and 0-2.

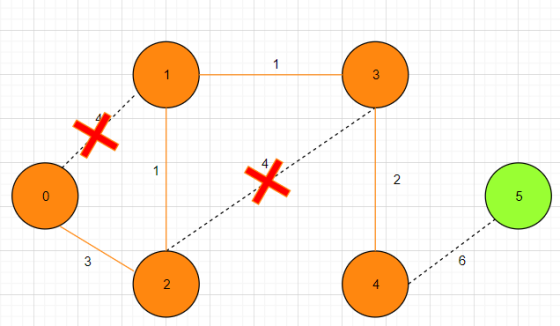

#5: edge 0-1 will form a cycle if we include it, so ignore it.

#6: similarly edge 2-3 will form cycle so ignore this edge as well.

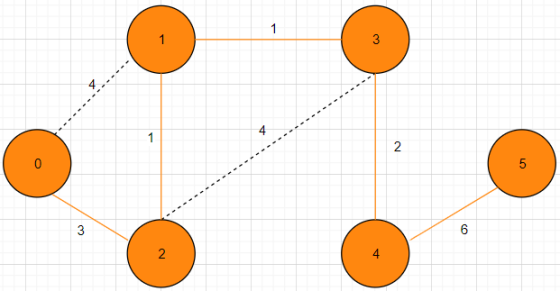

# 7: No cycle is formed when including edge 4-5, so we will include it.

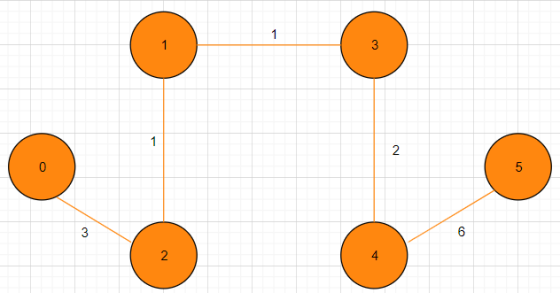

Finally we have:

Minimum Spanning Tree(MST) Total cost: 3+1+1+2+6= 13
