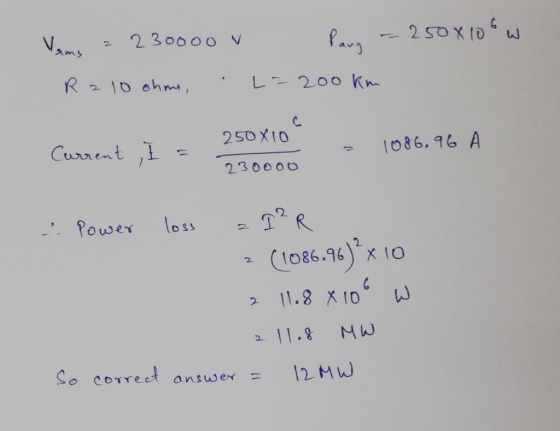

A 230000 V-rms powerline carries an average power Pavg = 250 MW a distance of 200...
A 230000 V-rms powerline carries an average power Pavg = 250 MW a distance of 200 km. If the total resistance of the cables is 10 ohms, what is the resistive power loss?
|
A. 1.0 MW |
|
|
B. 2.5 MW |
|
|
C. 5.4 MW |
|
|
D. 12 MW |
|
|
E. 10 kW |
Homework Answers
Add Answer to:
A 230000 V-rms powerline carries an average power
Pavg = 250 MW a distance of 200...
32. A transformer is to be designed to increase the 30 kV-rms output of a generator...
32. A transformer is to be designed to increase the 30 kV-rms output of a generator to the transmission-line voltage of 345 kV-om. If the primary winding has 80 turns, how many turns must the secondary have? b. 70 c. 920 d. 9200 e 12 33. The primary winding of an electric train transformer has 400 turns and the Secondary has 50. If the input voltage is 120V(rms) what is the output voltage? a. 15 V (rms) b. 30 Vrms)...
112 mann Is → I 2652 250 20° V(rms) -j100 12 j392 Quiz 12b The load...
112 mann Is → I 2652 250 20° V(rms) -j100 12 j392 Quiz 12b The load L is the series resistor and inductor in parallel with the capacitor. a) Calculate the rms phasors Vi and IL | Vel= Vrms. Phase angle Vų = ° (Degrees) (smallest negative angle) | IL 1 = Arms Phase angle IL = (Degrees) (smallest negative angle) b) Calculate the average power and magnetizing reactive power absorbed by the (26+j 39) 22 (Ohm) elements. Pavg =...
A typical overhead power line is bare wire at a high potential relative to ground. A...
A typical overhead power line is bare wire at a high potential relative to ground. A local line receives power at 3300 V with respect to the ground; the delivered voltage is slightly less, due to resistance loss in the wire. The wire is 10 km long, carries a current of 60 A, and has a resistance (made small to limit power loss) of 2.5 Ω. 1) Approximately how much power is lost due to the resistance of the wire?...
If a l V rms signal source with an internal resistance of 50 Ω is connected...
If a l V rms signal source with an internal resistance of 50 Ω is connected to the amplifier in Figure what is the actual rms signal applied to the amplifier input? Assume Bac 200 +15 V RI 1.0 kΩ 01 Di C3 02 75 Ω 1.0 kΩ Class C Power Amplifiers A certain class C amplifier transistor is on for 10 percent of the input cycle. If Veetsa) 0.18 V and Ie(sa)25 mA, what is the average power dissipation...
Q5: The circuit show below has two loads connected to 120 V (rms), 60Hz, house-hold supply....
Q5: The circuit show below has two loads connected to 120 V (rms), 60Hz, house-hold supply. The load-1 is a resistive load (lamp) with a total power of 5 kW. The load-2 is a motor drawing 10 kVA at 0.6 power factor, lagging. The capacitor is initially not connected a) Calculate the load currents (phasor) I and 12 14] b) Calculate the supply current I c) What is the power factor of the source when it supplies to both loads?...
QUESTION 1 A) (10 marks) A 10 kW, 250 V DC self-excited shunt generator, with an...
QUESTION 1 A) (10 marks) A 10 kW, 250 V DC self-excited shunt generator, with an armature resistance of 0.1 ohm, is delivering 80 % of rated power to the mains at rated voltage when being run at 1000 r.p.m. (revolutions per minute). The field circuit resistance is 220 ohms. The brush contact drop is 0.5 V and rotational (mechanical) losses are 750 W Calculate The induced voltage The electromagnetic torque developed The shaft torque The overall efficiency B) (15...
Write neat please. Show step by step please. Read instructions carefully. Box in answer please. Thank...
Write neat please. Show step by step please. Read
instructions carefully. Box in answer please. Thank you
20. A high-voltage transmission line carries 1000 A at 700 kV for a distance of A high-voltage transmission 100 miles. If the resistance per length in the wire is 0.5 l/mile, what is the power loss due to resistive losses? 21. The heating coil of a hot water heater has a resistance of 20 ohms and operates at 210 V. If electrical energy...
e and f only please 3. A 3.0-horsepower pump is connected to a 240-V-rms AC voltage. Assume that the pump can be mo...
e and f only please
3. A 3.0-horsepower pump is connected to a 240-V-rms AC voltage. Assume that the pump can be modeled as a simple resistive load. Note: 1 hp - 746.5 W. so 3.0 hp = 2.24 kW. P a. What is the rms current drawn by the pump? A. 7.1 A D. 18 A B. 93 A E. 21A C. 13 A P-IV 2240 2l0u b. What is the peak current drawn by the pump? A. 7.1...
Assuming 95.0% efficiency for the conversion of electrical power by the motor, what current must the...
Assuming 95.0% efficiency for the conversion of electrical power by the motor, what current must the 12.0-V batteries of a 678-kg electric car be able to supply to do the following? (a) accelerate from rest to 25.0 m/s in 1.00 min A (b) climb a 200-m high hill in 2.00 min at a constant 25.0 m/s speed while exerting 353 N of force to overcome air resistance and friction A 00 gauge copper wire has a diameter of 9.266 mm....
14. The following details are known about a 200 hp, 500 V, 435 rpm de shunt motor: full-load current is 330 A, insulation class is H, weight is 3400 kg, external diameter of the frame is 915 mm a...
14. The following details are known about a 200 hp, 500 V, 435 rpm de shunt motor: full-load current is 330 A, insulation class is H, weight is 3400 kg, external diameter of the frame is 915 mm and length of the frame is 1260 mm. If the motor is running at full-load, calculate: a. the total losses and efficiency. b, the approximate shunt field exciting current if the shunt field causes 15% of the total losses. the value of...
32. A transformer is to be designed to increase the 30 kV-rms output of a generator to the transmission-line voltage of 345 kV-om. If the primary winding has 80 turns, how many turns must the secondary have? b. 70 c. 920 d. 9200 e 12 33. The primary winding of an electric train transformer has 400 turns and the Secondary has 50. If the input voltage is 120V(rms) what is the output voltage? a. 15 V (rms) b. 30 Vrms)...
112 mann Is → I 2652 250 20° V(rms) -j100 12 j392 Quiz 12b The load L is the series resistor and inductor in parallel with the capacitor. a) Calculate the rms phasors Vi and IL | Vel= Vrms. Phase angle Vų = ° (Degrees) (smallest negative angle) | IL 1 = Arms Phase angle IL = (Degrees) (smallest negative angle) b) Calculate the average power and magnetizing reactive power absorbed by the (26+j 39) 22 (Ohm) elements. Pavg =...
If a l V rms signal source with an internal resistance of 50 Ω is connected to the amplifier in Figure what is the actual rms signal applied to the amplifier input? Assume Bac 200 +15 V RI 1.0 kΩ 01 Di C3 02 75 Ω 1.0 kΩ Class C Power Amplifiers A certain class C amplifier transistor is on for 10 percent of the input cycle. If Veetsa) 0.18 V and Ie(sa)25 mA, what is the average power dissipation...
Q5: The circuit show below has two loads connected to 120 V (rms), 60Hz, house-hold supply. The load-1 is a resistive load (lamp) with a total power of 5 kW. The load-2 is a motor drawing 10 kVA at 0.6 power factor, lagging. The capacitor is initially not connected a) Calculate the load currents (phasor) I and 12 14] b) Calculate the supply current I c) What is the power factor of the source when it supplies to both loads?...
QUESTION 1 A) (10 marks) A 10 kW, 250 V DC self-excited shunt generator, with an armature resistance of 0.1 ohm, is delivering 80 % of rated power to the mains at rated voltage when being run at 1000 r.p.m. (revolutions per minute). The field circuit resistance is 220 ohms. The brush contact drop is 0.5 V and rotational (mechanical) losses are 750 W Calculate The induced voltage The electromagnetic torque developed The shaft torque The overall efficiency B) (15...
Write neat please. Show step by step please. Read
instructions carefully. Box in answer please. Thank you
20. A high-voltage transmission line carries 1000 A at 700 kV for a distance of A high-voltage transmission 100 miles. If the resistance per length in the wire is 0.5 l/mile, what is the power loss due to resistive losses? 21. The heating coil of a hot water heater has a resistance of 20 ohms and operates at 210 V. If electrical energy...
e and f only please
3. A 3.0-horsepower pump is connected to a 240-V-rms AC voltage. Assume that the pump can be modeled as a simple resistive load. Note: 1 hp - 746.5 W. so 3.0 hp = 2.24 kW. P a. What is the rms current drawn by the pump? A. 7.1 A D. 18 A B. 93 A E. 21A C. 13 A P-IV 2240 2l0u b. What is the peak current drawn by the pump? A. 7.1...
Assuming 95.0% efficiency for the conversion of electrical power by the motor, what current must the 12.0-V batteries of a 678-kg electric car be able to supply to do the following? (a) accelerate from rest to 25.0 m/s in 1.00 min A (b) climb a 200-m high hill in 2.00 min at a constant 25.0 m/s speed while exerting 353 N of force to overcome air resistance and friction A 00 gauge copper wire has a diameter of 9.266 mm....
14. The following details are known about a 200 hp, 500 V, 435 rpm de shunt motor: full-load current is 330 A, insulation class is H, weight is 3400 kg, external diameter of the frame is 915 mm and length of the frame is 1260 mm. If the motor is running at full-load, calculate: a. the total losses and efficiency. b, the approximate shunt field exciting current if the shunt field causes 15% of the total losses. the value of...
