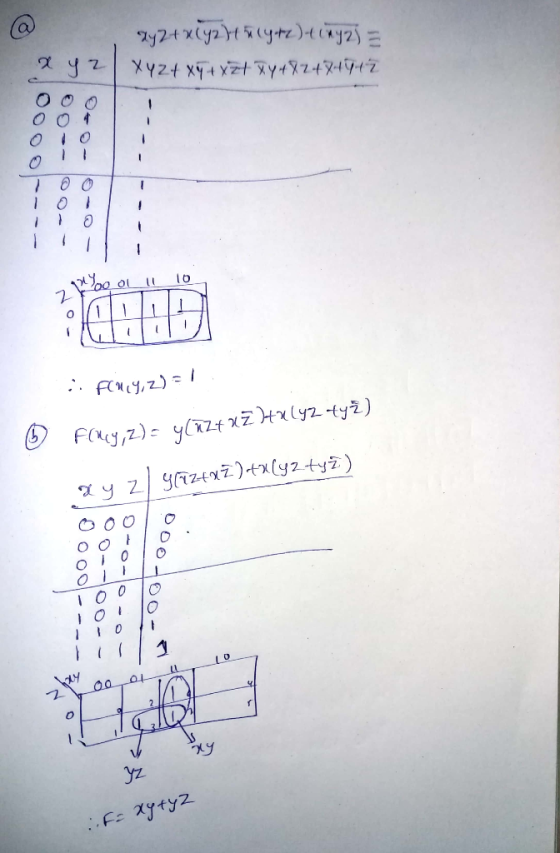

Construct a truth table then simplify the following functional expressions:

a) F(x,y,z) = xyz + x(yz)' + x'(y+z) + (xyz)'

b) F(x,y,z) = y(x'z + xz') + x(yz + yz')
