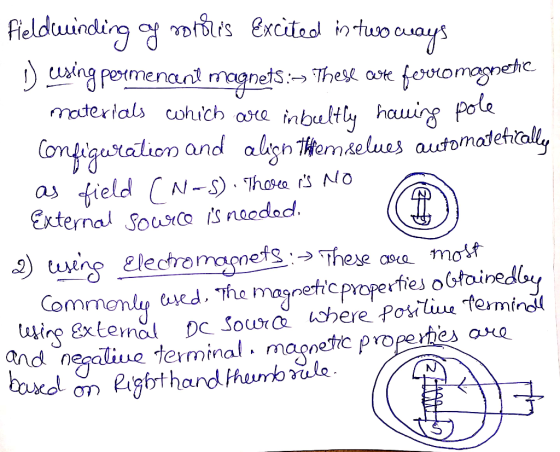

how is a field winding on the rotor excited? two ways
Homework Answers
Problem 1: A four pole, 60Hz, 3-d synchronous generator has a rotor radius of 15 cm, a rotor length of 2.7m, and an air gap length of 2 mm. The rotor field winding consists of 1000 turns with a wi...
Problem 1: A four pole, 60Hz, 3-d synchronous generator has a rotor radius of 15 cm, a rotor length of 2.7m, and an air gap length of 2 mm. The rotor field winding consists of 1000 turns with a winding factor of 0.962. The Δ connected armature winding has 25 series turns per phase with a winding factor of 0.935. The generator is designed to achieve rated open-circuit voltage at a peak air-gap flux density of 1.25 T (a) At...
Please explain the no-load characteristics for shunt and separately excited DC motors. How will rotor speed,...
Please explain the no-load characteristics for shunt and separately excited DC motors. How will rotor speed, armature current and field current be effected for both at no load?
Show all steps Chapter 4, Problem 28P (1 Bookmark) ON Figure 4.41 shows in cross section a machine having a rotor winding f and two identical stator windings a and b whose axes are in quadrature. The...
Show all steps Chapter 4, Problem 28P (1 Bookmark) ON Figure 4.41 shows in cross section a machine having a rotor winding f and two identical stator windings a and b whose axes are in quadrature. The self-inductance of each stator winding is Laa and of the rotor is Lff. The air gap is uniform. The mutual inductance between a stator winding depends on the angular position of the rotor and may be assumed to be of the form where...
Stator winding stator axis rotor axis ܕ݁ܐܶ RU in L rotor V.RO 0 0.= initial position...
Stator winding stator axis rotor axis ܕ݁ܐܶ RU in L rotor V.RO 0 0.= initial position of the rotor at standstill (rest position) a) Schematic view of SPPMSM b) Electrical equivalent circuit of SPPMSM Description of the motor: In Fig. a, cross-section of a Single Phase Permanent Magnet Synchronous Motor (SPPMSM) is seen. A U shaped stator is wound with a stator winding consisting of two coils connected in series (you can consider a single coil with N turns). A...
A four-pole synchronous AC generator with a smooth air gap has a distributed rotor winding with 260 series turns, a winding factor of 0.935, and an air gap of length 0.7 mm. Assuming the mmf drop in the electrical steel to be negligible, find the rotor-wi
A four-pole synchronous AC generator with a smooth air gap
has a distributed rotor winding with 260 series turns, a
winding factor of 0.935, and an air gap of length 0.7 mm.
Assuming the mmf drop in the electrical steel to be
negligible, find the rotor-winding current required to produce
a peak, space-fundamental magnetic flux density of 1.8 T in
the machine air gap.
Consider a 2-pole, 50 Hz, cylindrical rotor ac machine. The air-gap radius is 0.1 m, the...
Consider a 2-pole, 50 Hz, cylindrical rotor ac machine. The air-gap radius is 0.1 m, the air-gap distance is 0.002 m and the air-gap axial length is 0.3 m. The stator winding is excited by a 3-phase, 50 Hz, 5 A (peak), balanced ac current system without rotor excitation. Calculate the air-gap fundamental flux per-pole and the generated fundamental voltage between the terminals of the rotor winding when the rotor is stationary.
A 60-Hx, 2-pole, 208-V wound-rotor induction motor has a threc-phase stator winding of 42 serics turns/phase...
A 60-Hx, 2-pole, 208-V wound-rotor induction motor has a threc-phase stator winding of 42 serics turns/phase and a rotor winding of 38 series turns/phase. When operating at rated terminal voltage, the motor is observed to be operating at a speed of 3517 r/min. Caleulations indicate that under this opcrating condition, the air-gap fHlux wave induces a voltage of 193 V, line-lne in the stator winding. Calculate the corresponding voltage induced in the rotor winding
(ii) What are the two main rotor constructions of synchronous machines and how can you identify...
(ii) What are the two main rotor constructions of synchronous machines and how can you identify them? (iii) Identify the three slot construction of the stator, what are the advantages and disadvantages of each of them? (iv) What are the advantages of having the armature winding on the stator.
Rigid rotor question Hi, I understand how to do rigid rotor questions for diatomic molecules, but...
Rigid rotor question Hi, I understand how to do rigid rotor questions for diatomic molecules, but I was wondering what if the molecule is linear CO2? What is the rotational first excited state energy of linear molecule CO2? Not sure if I have to just solve the energy for C=O like as a diatomic molecule, and then multiply by two...
please solve the multiple choices [17-18-19-20] (a) What kind of rotor construction is used in this machine? Cylindrical or salient pole rotor? Why? (b) The field current and the mechanical in...
please solve the multiple choices [17-18-19-20]
(a) What kind of rotor construction is used in this machine? Cylindrical or salient pole rotor? Why? (b) The field current and the mechanical input power are adjusted so that the machine delivers 15 k W at 0.9 lagging power factor. Is it a generator or motor? Draw the per- phase equivalent circuit of machine. (c) Determine the excitation voltage and the power angle (degree) Problem 1. (10 Points) A 3-phase, 20 kVA, 460...
Problem 1: A four pole, 60Hz, 3-d synchronous generator has a rotor radius of 15 cm, a rotor length of 2.7m, and an air gap length of 2 mm. The rotor field winding consists of 1000 turns with a winding factor of 0.962. The Δ connected armature winding has 25 series turns per phase with a winding factor of 0.935. The generator is designed to achieve rated open-circuit voltage at a peak air-gap flux density of 1.25 T (a) At...
Show all steps Chapter 4, Problem 28P (1 Bookmark) ON Figure 4.41 shows in cross section a machine having a rotor winding f and two identical stator windings a and b whose axes are in quadrature. The self-inductance of each stator winding is Laa and of the rotor is Lff. The air gap is uniform. The mutual inductance between a stator winding depends on the angular position of the rotor and may be assumed to be of the form where...
Stator winding stator axis rotor axis ܕ݁ܐܶ RU in L rotor V.RO 0 0.= initial position of the rotor at standstill (rest position) a) Schematic view of SPPMSM b) Electrical equivalent circuit of SPPMSM Description of the motor: In Fig. a, cross-section of a Single Phase Permanent Magnet Synchronous Motor (SPPMSM) is seen. A U shaped stator is wound with a stator winding consisting of two coils connected in series (you can consider a single coil with N turns). A...
A 60-Hx, 2-pole, 208-V wound-rotor induction motor has a threc-phase stator winding of 42 serics turns/phase and a rotor winding of 38 series turns/phase. When operating at rated terminal voltage, the motor is observed to be operating at a speed of 3517 r/min. Caleulations indicate that under this opcrating condition, the air-gap fHlux wave induces a voltage of 193 V, line-lne in the stator winding. Calculate the corresponding voltage induced in the rotor winding
please solve the multiple choices [17-18-19-20]
(a) What kind of rotor construction is used in this machine? Cylindrical or salient pole rotor? Why? (b) The field current and the mechanical input power are adjusted so that the machine delivers 15 k W at 0.9 lagging power factor. Is it a generator or motor? Draw the per- phase equivalent circuit of machine. (c) Determine the excitation voltage and the power angle (degree) Problem 1. (10 Points) A 3-phase, 20 kVA, 460...
