A heavy solid cylinder with a mass of 600 kg and a radius of 0.50 m...
A heavy solid cylinder with a mass of 600 kg and a radius of 0.50 m is securely fixed to a frictionless axle at its center. It has a long ideal rope tightly wound around it and hanging down from the cylinder about 1.0 m. Sally, who has a mass of 60 kg attaches herself to the rope and steps off a ledge, spinning the cylinder about the axle. If it takes 4.0 seconds for her to reach the ground below, answer the following prompts. *Show your problem-solving process below.*

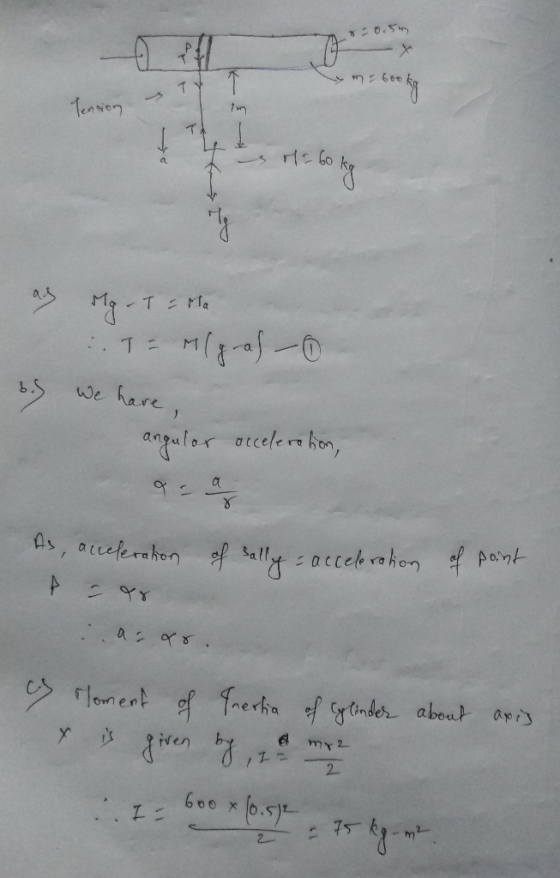

a. Write an expression for the tension in the rope in terms of Sally's acceleration. (A FBD could be useful here...)
b. Write an expression for the angular acceleration of the cylinder as in terms of Sally's acceleration.
c. What is the moment of inertia of the cylinder?

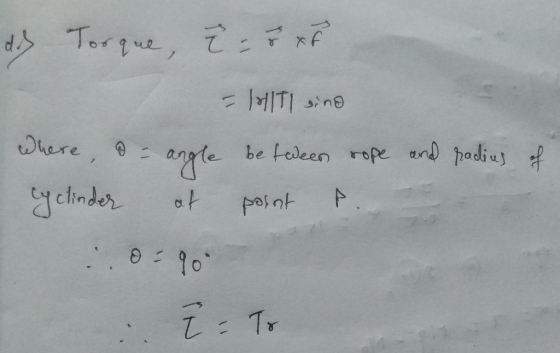

d. Write an expression for the torque applied to the cylinder due to the ter

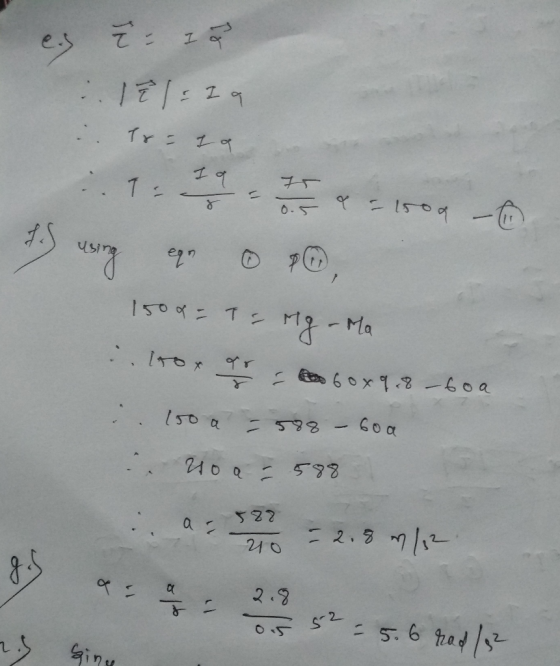

e. Write an expression relating the angular acceleration of the cylinder to the tension in the rope. (A FPD could be useful here...)
f. By solving for the tension in the rope in both parts (e.) and (a.), determine Sally's acceleration.
g. What is the angular speed of the cylinder at that moment?

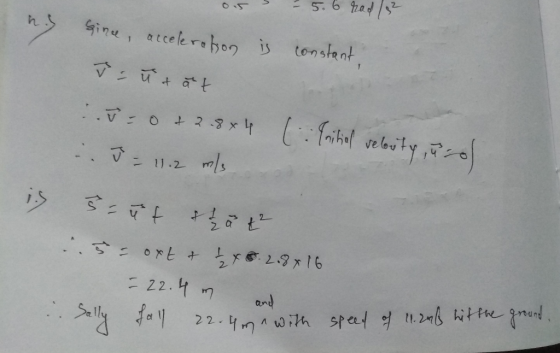

h. With what speed does Sally impact the ground?
i. How far did Sally fall?
Homework Answers
Add Answer to:
A heavy solid cylinder with a mass of 600 kg and a radius of
0.50 m...
A rope of negligible mass is wrapped around a 225-kg solid cylinder of radius 0.400 m....
A rope of negligible mass is wrapped around a 225-kg solid cylinder of radius 0.400 m. The cylinder is suspended several meters off the ground with its axis oriented horizontally, and turns on that axis without friction. (a) If a 75.0-kg man takes hold of the free end of the rope and falls under the force of gravity, what is his acceleration? m/s2 (b) What is the angular acceleration of the cylinder? rad/s2
6. A 25-kg solid cylinder with a radius of 11 cm, initially at rest, is free...
6. A 25-kg solid cylinder with a radius of 11 cm, initially at rest, is free to rotate about the axis of the cylinder. A rope of negligible mass is wrapped around it and pulled with a force of 17 N. Assuming that the rope does not slip, determine the following a) The torque exerted on the cylinder by the rope b) The angular acceleration of the cylinder c) The angular speed of the cylinder after 0.5 s
An m = 13.6 kg mass is attached to a cord that is wrapped around a...
An m = 13.6 kg mass is attached to a cord
that is wrapped around a wheel of radius r = 11.3 cm (see the
figure below).
The acceleration of the mass down the frictionless incline is
measured to be a = 1.98 m/s2. Assuming the axle of the
wheel to be frictionless, and the angle to be theta=
33.0o determine the tension in the rope.
Determine the moment of inertia of the wheel.
Determine angular speed of the wheel...
A uniform cylinder of mass 3.0 kg and radius 10.0 cm has a rope wrapped around...
A uniform cylinder of mass 3.0 kg and radius 10.0 cm
has a rope wrapped around its edge; a tension of 5.0 N
is
exerted on the rope. The cylinder rotates at a
constantly
increasing rate, starting from rest.
10DCH 1. A uniform cylinder of mass 3.0 kg and radius 10.0 cm has a rope wrapped around its edge; a tension of 5.0 N is exerted on the rope. The cylinder rotates at a constantly increasing rate, starting from rest....
A large grinding wheel in the shape of a solid cylinder of radius 0.330 m is...
A large grinding wheel in the shape of a solid cylinder of radius 0.330 m is free to rotate on a frictionless, vertical axle. A constant tangential force of 290 N applied to its edge causes the wheel to have an angular acceleration of 0.860 rad/s2. (a) What is the moment of inertia of the wheel? kg · m2 (b) What is the mass of the wheel? kg (c) If the wheel starts from rest, what is its angular velocity...
A light cable is wrapped around a solid cylinder with mass M = 1.50 kg and...
A light cable is wrapped around a solid cylinder with mass M = 1.50 kg and radius R = 0.20 m as shown in the figure below. The cylinder rotates with negligible friction about a stationary horizontal axis. The free end of the cable is tied to a block of mass m = 0.50 kg. The block, initially at rest, is released at a height h = 1.00 m above the floor. As the block falls, the cable unwinds without...
An m = 13.3 kg mass is attached to a cord that is wrapped around a...
An m = 13.3 kg mass is attached to a cord that is wrapped around a wheel of radius r = 11.9 cm (see the figure below). The acceleration of the mass down the frictionless incline is measured to be a = 2.00 m/s2. Assuming the axle of the wheel to be frictionless, and the angle to be A = 33.2° determine the tension in the rope. Submit Answer Tries 0/8 Determine the moment of inertia of the wheel. Submit...
Q7 (15 points): A solid cylinder of mass 5 kg and radius R 0.15 m rolls...
Q7 (15 points): A solid cylinder of mass 5 kg and radius R 0.15 m rolls without slipping on a horizontal surface and is accelerated to the right by a constant force F of magnitude 6 N that is applied at the cylinder by a massless rope as shown in the below figure. Find a) the magnitude of the acceleration of the center of mass of the cylinder, b) the magnitude of the angular acceleration of the cylinder about the...
Chapter 8-Part 2 A large grinding wheel in the shape of a solid cylinder of radius...
Chapter 8-Part 2 A large grinding wheel in the shape of a solid cylinder of radius 0.33 meter is free to rotate on a frictionless, vertical axle. A constant tangential force of 250 N applied to its edge causes the wheel to have an angular acceleration of 0,94 rad/s2. (a) What is the torque being applied to the wheel? (b) What is the moment of inertia of the wheel? ANS: (a) 82.5 Nm; (b) 87.8 kg-m2 A 2,000 kg Ferris...
A solid, horizontal cylinder of mass 11.0 kg and radius 1.00 m rotates with an angular...
A solid, horizontal cylinder of mass 11.0 kg and radius 1.00 m rotates with an angular speed of 5.50 rad/s about a fixed vertical axis through its center. A 0.250-kg piece of putty is dropped vertically onto the cylinder at a point 0.900 m from the center of rotation and sticks to the cylinder. Determine the final angular speed of the system.
6. A 25-kg solid cylinder with a radius of 11 cm, initially at rest, is free to rotate about the axis of the cylinder. A rope of negligible mass is wrapped around it and pulled with a force of 17 N. Assuming that the rope does not slip, determine the following a) The torque exerted on the cylinder by the rope b) The angular acceleration of the cylinder c) The angular speed of the cylinder after 0.5 s
An m = 13.6 kg mass is attached to a cord
that is wrapped around a wheel of radius r = 11.3 cm (see the
figure below).
The acceleration of the mass down the frictionless incline is
measured to be a = 1.98 m/s2. Assuming the axle of the
wheel to be frictionless, and the angle to be theta=
33.0o determine the tension in the rope.
Determine the moment of inertia of the wheel.
Determine angular speed of the wheel...
A uniform cylinder of mass 3.0 kg and radius 10.0 cm
has a rope wrapped around its edge; a tension of 5.0 N
is
exerted on the rope. The cylinder rotates at a
constantly
increasing rate, starting from rest.
10DCH 1. A uniform cylinder of mass 3.0 kg and radius 10.0 cm has a rope wrapped around its edge; a tension of 5.0 N is exerted on the rope. The cylinder rotates at a constantly increasing rate, starting from rest....
An m = 13.3 kg mass is attached to a cord that is wrapped around a wheel of radius r = 11.9 cm (see the figure below). The acceleration of the mass down the frictionless incline is measured to be a = 2.00 m/s2. Assuming the axle of the wheel to be frictionless, and the angle to be A = 33.2° determine the tension in the rope. Submit Answer Tries 0/8 Determine the moment of inertia of the wheel. Submit...
Q7 (15 points): A solid cylinder of mass 5 kg and radius R 0.15 m rolls without slipping on a horizontal surface and is accelerated to the right by a constant force F of magnitude 6 N that is applied at the cylinder by a massless rope as shown in the below figure. Find a) the magnitude of the acceleration of the center of mass of the cylinder, b) the magnitude of the angular acceleration of the cylinder about the...
Chapter 8-Part 2 A large grinding wheel in the shape of a solid cylinder of radius 0.33 meter is free to rotate on a frictionless, vertical axle. A constant tangential force of 250 N applied to its edge causes the wheel to have an angular acceleration of 0,94 rad/s2. (a) What is the torque being applied to the wheel? (b) What is the moment of inertia of the wheel? ANS: (a) 82.5 Nm; (b) 87.8 kg-m2 A 2,000 kg Ferris...
