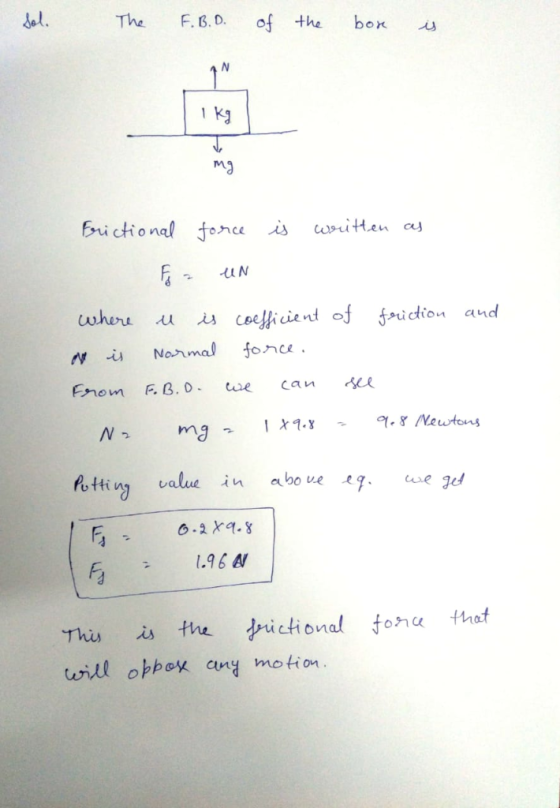

A 1 kg box sits on a table where the coefficient of friction is 0.2. Calculate the friction that will oppose any motion.
A 1 kg box sits on a table where the coefficient of friction is 0.2. Calculate...
A 4 kg box sits on a ramp where the coefficient of friction is 0.2. Find the angle that will cause the box to slide downhill at constant velocity.
A 2 kg box sits on a ramp of 5 degrees where the coefficient of friction is 0.2. A 31 N force pulls the box uphill. Find the acceleration.
A 4 kg box sits on a ramp of 7 degrees where the coefficient of friction is 0.2. A 34 N force pulls the box uphill. Find the acceleration.
2. A box (M-8.5 kg) sits on a table (box #1). Another box (m=6.3 kg) sits on a ramp at an angle of e= 30° (box #2). The boxes are connected to each other with a cable and pulley, as shown in the diagram to the right. The static coefficient of friction between box #1 and the table is 0.88, and the kinetic coefficient is 0.81. There is no friction between box # 2 and the ramp. (4 pts.) Draw...
A cardboard box sits on top of an asphalt driveway. The coefficient of static friction is 0.8 and the coefficient of friction is 0.3 . The mass of the box is 5 Kg and a horizontal force of 9 N is applied. What is the Gravitational Force? What is the Frictional Force? What is the Acceleration?
a 12 kg box sits on a horizontal table. a string with tension 30.4 N pulls on the box to the right, but static friction between the box and the table prevents the box from moving. the coefficient of static friction between the box and table is 0.43. what is the magnitude of the static friction force on the box?
A 12.1 kg box sits on a horizontal table. A string with tension 24.9 N pulls on the box to the right, but static friction between the box and the table prevents the box from moving. The coefficient of static friction between the box and the table is 0.35. What is the magnitude of the static friction force on the box?
A 20 kg box sits on a flat table. You pull horizontally (relative to the table surface) on a rope attached to the box. It just begins to slip when you pull 20 N. What is the coefficient of static friction (us) between the box and the table?
- A 3.1-kg flower pot sits on the ground. The coefficient of static friction between the flower pot and the ground is 0.54. Maria pushes the flower pot with a force of 5.2 Newtons, but it does not move. How strong is the static friction? -A 1.6-kg book sits on a table. The coefficient of static friction between the book and the table is 0.39. What is the hardest you can push on the book without it moving?
A 5 kg box is sitting on a table; the coefficient of kinetic friction between the box and the table is 0.6. Two people throw things at it: a lump of clay and a rubber ball. Both objects have a mass of 500 g and strike the box at a speed of 4 m/s. The lump of clay collides inelastically (sticking to the box), while the ball bounces back at a speed of 2 m/s. (a) Without doing any mathematics,...
