Please calculate the force on the sling “c” depicted in the image to the right. Also...

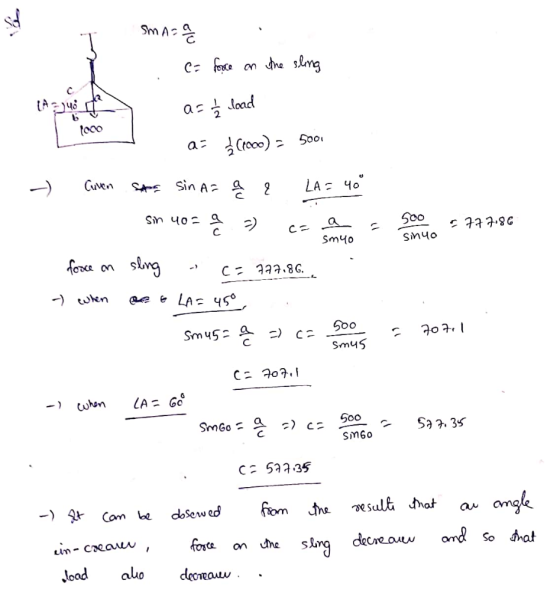

Please calculate the force on the sling “c” depicted in the image to the right. Also use rules of thumb to determine “c” when Angle A is 45 degrees and 60 degrees. Why do you think the load decreases as Angle A increases? Show all of the calculations please!
Homework Answers
