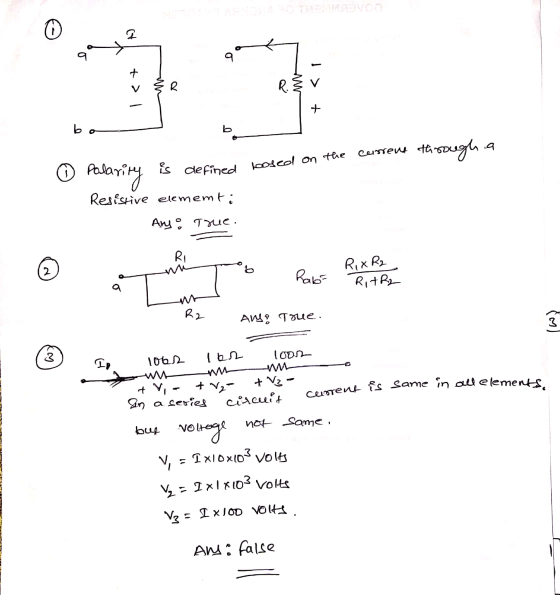

true of false 1.Polarity is defined based on the conventional current through a resistive element. 3....
When resistors are in series, each resistor has the same current but the voltage is different for each according to Ohm’s Law. A given circuit consists of two resistors in series connected to a 24.0-V battery. The current in the circuit is 0.0320 A. If R_1=250.0 Ω,and R_2=500.0 Ω. Find the potential difference across each resistor. Find the equivalent resistance. If the circuit in Problem 6 above is reconnected with the two resistors in parallel, the...
(a) What is the current flowing through each resistor in a circuit consisting of a 48.0-V battery and a 24.0 Ω resistor connected in series with a 96.0 Ω resistor? (b) What is the voltage drop across each resistor? (c) What is the power dissipated in each resistor? (d) If the two resistors were connected in parallel rather than series, what would be the current flow through each resistor? (e) What would be the voltage drop across each resistor for...
CIRCUIT R4 Wer -----V. V _ A134 — AV1234 (3) DATA Resistance (2) Current (A) 0.82 Voltage Differences (V) 90.00 lo 40 0.62 ΔV1 24.66 R2 120 0.21 AV2 24.66 R3 0.82 AV3 9.86 12 R4 67 14 0.82 AV4 55.48 AV12 24.66 AV34 65.34 AV1234 90.00 Questions You are now in a position to draw some general conclusions about resistors in simple series and parallel circuits: 1. Current and voltage differences a) is charge conserved as current passes through...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
A circuit consists of two resistors connected in series with a
power supply, as shown in the figure. The resistance of ?1 is less
than the resistance of ?2.
A series circuit with two resistors R subscript 1 and R
subscript 2. R subscript 1 is connected to the positive terminal of
the power supply, and is the first resistor in the circuit.
Which resistor has the greater current flowing through
it?
?2
?1
The current through each resistor is...
PHYSICS II:
4) For the circuit shown below, find: a) the equivalent resistance; b) the current through the battery; c) the potential difference across the 10 ohm resistor. 9 p /A we 100C 5) Two resistors with resistances of 12.0 2 and 6.0 are connected in parallel. An 8.0-12 resistor is then connected in series with this parallel combination. An ideal 12.0-V battery is then connected across the series- parallel combination. A) Draw a diagram of this circuit. B) Find...
In a parallel resistor circuit with 2 resistors The current flows through one resistor at a time The current splits and flows through both resistors at the same time The equivalent resistance is equal to the sum of the resistors The potential drop across the first resistor is always the largest.
A circuit consists of two resistors connected in series with a power supply, as shown in the figure. The resistance of Ri is greater than the resistance of R2 Which resistor has the greater current flowing through it? O The current through each resistor is the same. Which resistor has the greatest voltage difference across it? The voltage across each resistor is the same.
PSS 26.1 Resistors in Series and Parallel Learning Goal: To practice Problem-Solving Strategy 26.1 Resistors in Series and Parallel. Part A Two bulbs are connected in parallel across a source of emf = 12.0 V with a negligible internal resistance. One bulb has a resistance of 3.0 2, and the other is 3.5 . A resistor R is connected in Which of the following circuit diagrams represents the circuit described in this problem? A the circuit in series with the...
Learning Goal:
To practice Problem-Solving Strategy 23.1 Resistor Circuits.
Find the currents through and the potential difference across
each resistor in the circuit shown on the diagram (Figure 1) . Use
the following values: E = 12.0V , R1 = 15.0? , R2
= 45.0? , R3 = 20.0? , and R4 = 25.0? .
PROBLEM-SOLVING STRATEGY 23.1 Resistor Circuits
We can analyze any resistor circuit by sequentially reducing
parallel and series resistor combinations to their equivalent
resistors until only...
