An object is in front of a converging lens (f = 0.24 m). The magnification of...

An object is in front of a converging lens (f = 0.24 m). The magnification of the lens is m = 3.4. (a)Relative to the lens, in what direction should the object be moved so that the magnification changes to m = –3.4? (b) Through what distance should the object be moved?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

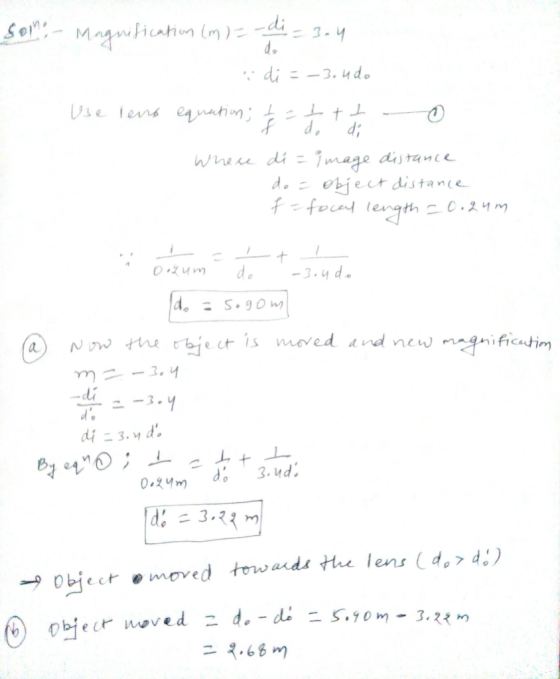

Answer #1

0 0
Add a comment
