Assuming binding priority (¬, ∧, ∨, →), what are all the possible parse trees for each...

Assuming binding priority (¬, ∧, ∨, →), what are all the possible parse trees for each formula? Draw the trees for each formula.

  1. (p → r) ∨ (q → r) → (p ∧ q) → r
  2. (p → r) ∧ (q → ¬r) ∧ (q → ¬p)
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

//For any queries, feel free to comment.

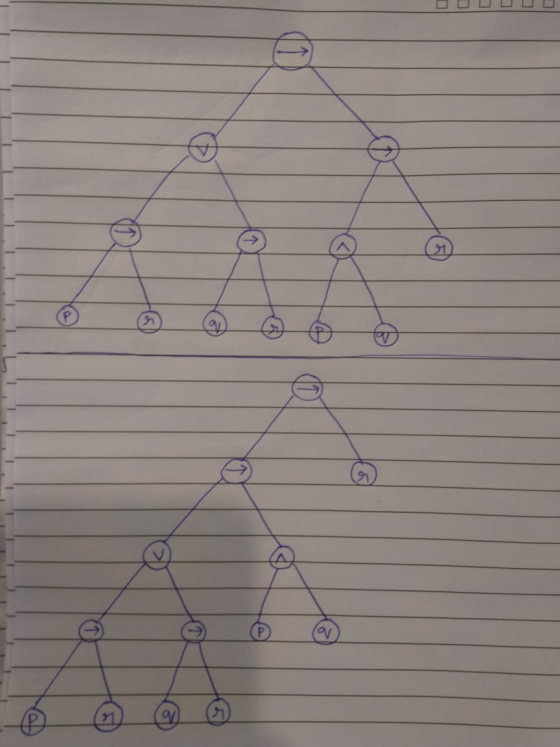

Part - a

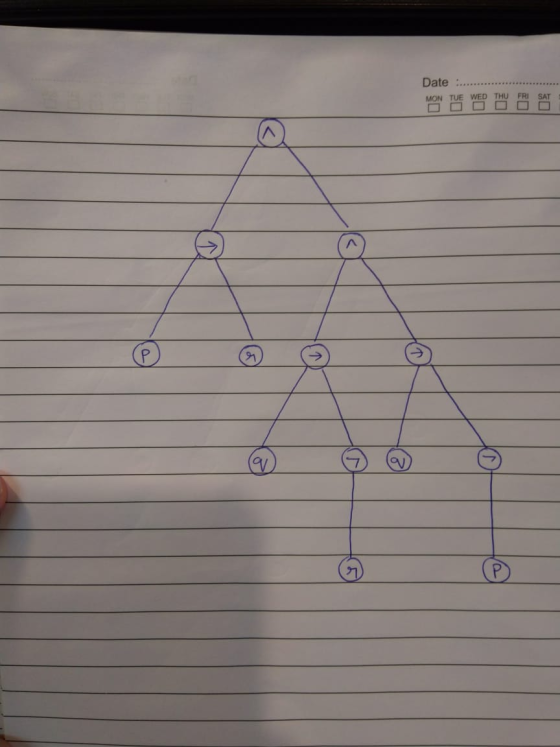

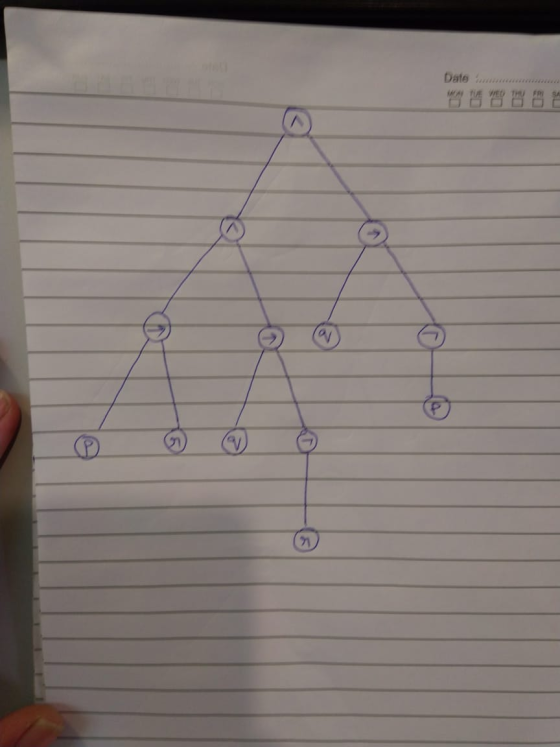

Part - b
