Implement a combination logic system that has two data inputs (A and B), one select input...

Question

Question

Implement a combination logic system that has two data inputs (A and B), one

select input S, and one data output F. If S=0, then F=A, and if S=1, then F=B.

engineering Computer-Science

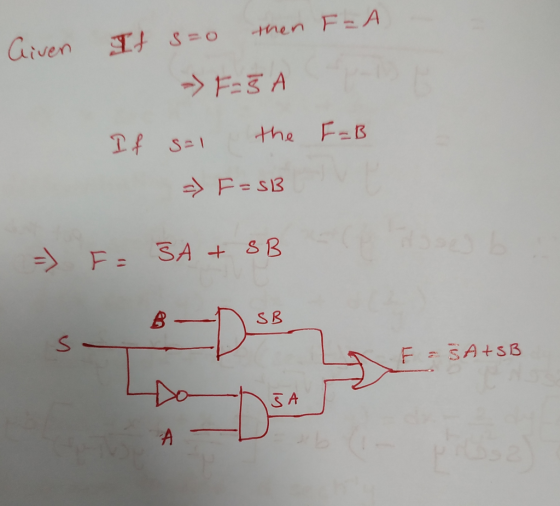

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

1. Construct a possible digital system with three inputs, A, B, and C, and one output,...

1. Construct a possible digital system with three inputs, A, B, and C, and one output, Y, such that Y= logic l’if two of the inputs are logic 'l'. Implement the circuit using: a. Minimum number of logic gates b. Minimum number of NAND gates only Assume complement inputs are available.
The input combination for which the logic circuit F (A(A+B)(A+B) is not recognized "A-0, B-1" "A-0,...

The input combination for which the logic circuit F (A(A+B)(A+B) is not recognized "A-0, B-1" "A-0, B-O" "A-1 B-1" The input combination for which the logic circuit F A'B' + ABCD'ABC is not recognized "A-0, B-0, C-0, D-0" "A-0, B-1, C-0, 3: 0" "A-0, B-0, C-0, D-1"
The objective of this system is to implement an odd-bit detection system. There are three bits...

The objective of this system is to implement an odd-bit detection system. There are three bits of inputs and one bit of output. The output is in positive logic: outputing a 1 will turn on the LED, outputing a 0 will turn off the LED. Inputs are positive logic: meaning if the switch pressed is the input is 1, if the switch is not pressed the input is 0. PE0 is an input PE1 is an input PE2 is an...

8. A sequenti by the following input function: al circuit has one flip-flop and two inputs...

8. A sequenti by the following input function: al circuit has one flip-flop and two inputs X and Y, and one output S. The circuit is described Dt = X xor Y xor S With D as the input to the D flop flop. (a) Draw the logic diagram of the circuit (b) Derive the state table (c) Derive the state diagram
