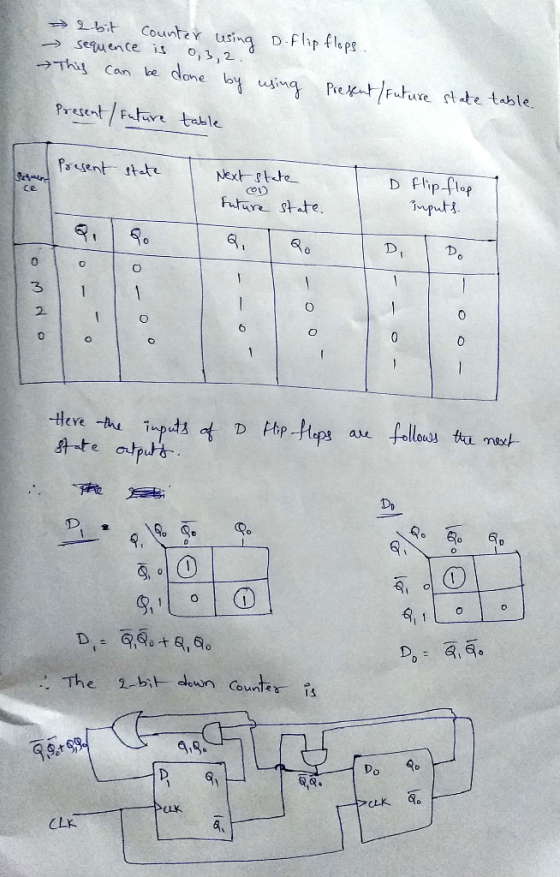

Design a 2-bit counter using D Flip Flops that follows the sequence 0, 3, 2.
Please provide explanation & Present/Future state table.


In this 2 bit counter using D
flip flops, we can see that the D flip flops inputs follows the
next/future state outputs. The inputs for the D flip flops we
calculated using K-maps because this is the easy process to find D

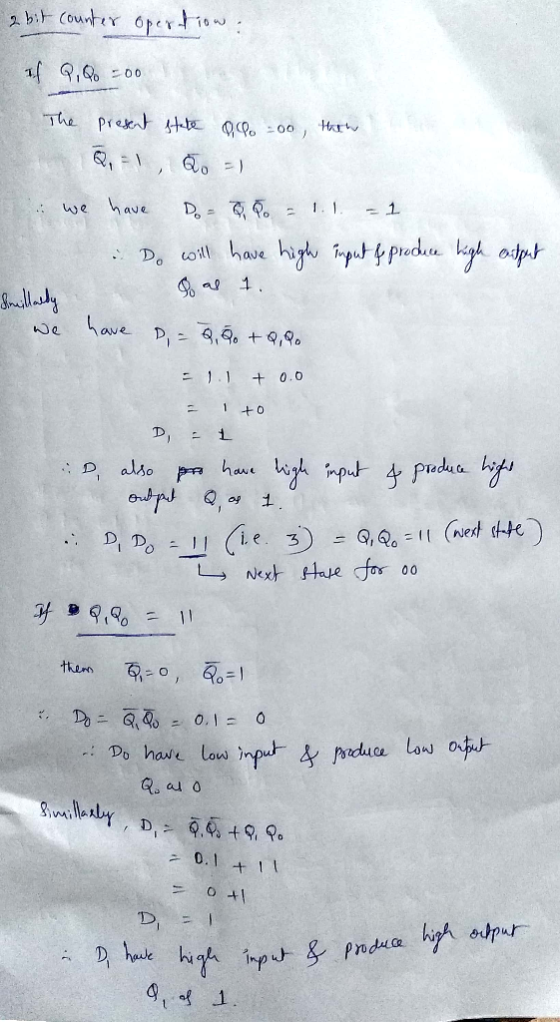

flip flops inputs interns of outputs Q1 Q0. The above operation of

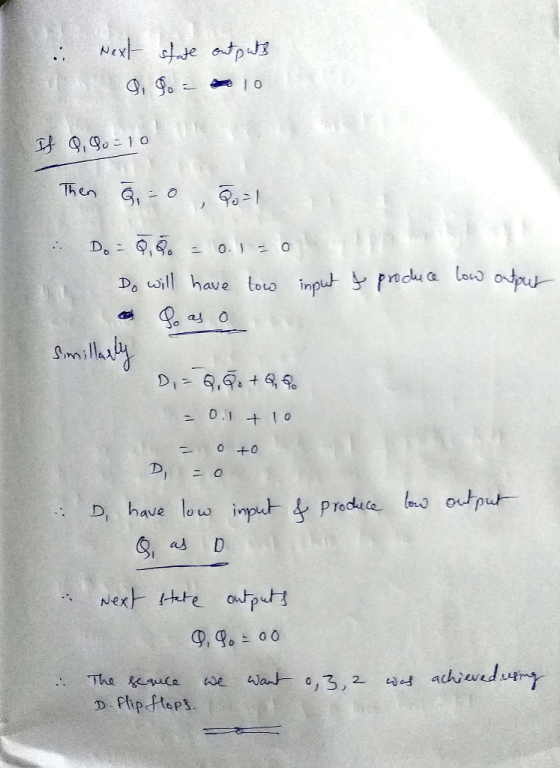

2 bit counter using D flip flops gives us the sequence we want is
0,3,2.
Design a 2-bit counter using D Flip Flops that follows the sequence 0, 3, 2. Please...
Please design a 4 bit synchrous counter (0-9 count) using t flip flops. Counter should reset to 0 after 9. Kindly provide all steps including state table. I will be thankful to you.
Use D flip-flops to design a 3-bit counter which counts in the sequence: 110, 100,
101, 111, 011, 010, 001, (repeat) 110, . . .
In this case, what will happen if the counter is started in state 000?
Using S-R flip-flops, design a 3-bit counter (C,B,A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. - Show the circuit's state table with the present-state entries in ascending order, which should have the present state (t), next state (t+1), and flip-flop inputs. - Find the flip-flop input equations for RC, RB, and RA in Product of Sums form.
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state graph, the timing diagram, the truth table (with clk pulse) and the state table (with present and next states).
Design a two-bit up/down binary counter using D flip-flops that can count in binary from 0 to 7. When the control input x is 0, the circuit counts down, and when it is 1, the circuit counts up. (a) Obtain the state table of the two-bit counter. (b) Obtain the state diagram (c) Draw the logic diagram of the circuit.
Up-Down counter with enable using JK flip-flops: Design, construct and test a 2-bit counter that counts up or down. An enable input E determines whether the counter is on or off. If E = 0, the counter is disabled and remains in the present count even though clock pulses are applied to the flip-flops. If E= 1, the counter in enabled and a second input, x, determines the count direction. If x= 1, the circuit counts up with the sequence...
Digital Logic Design Design a 0-9 counter using four D flip flops. The counter should run on the SCLK output of the clock divider. It should have a four-bit binary output that increments from 0 to 9 one step on each clock cycle. When it reaches the value of 9, it should restart a 0 on the next clock cycle. Hint: consider using D flip flops with a reset input and using logic to reset the flip flops when the...
Design a three-bit counter using D flip-flops that has the following characteristics: When the value of an input x is 0, the counter counts "down" in standard order. When the value of x is 1, the counter counts "up" in standard order a. First, complete the state table shown below Present State Next State Excitation 0 0 0 0 0 0 1 0 0 0 0 0 0 b. Next, derive the logic equations using the Karnaugh maps shown below...
