In an even/odd parity error code a computer receives the following 4 bit word: 1101 Is...

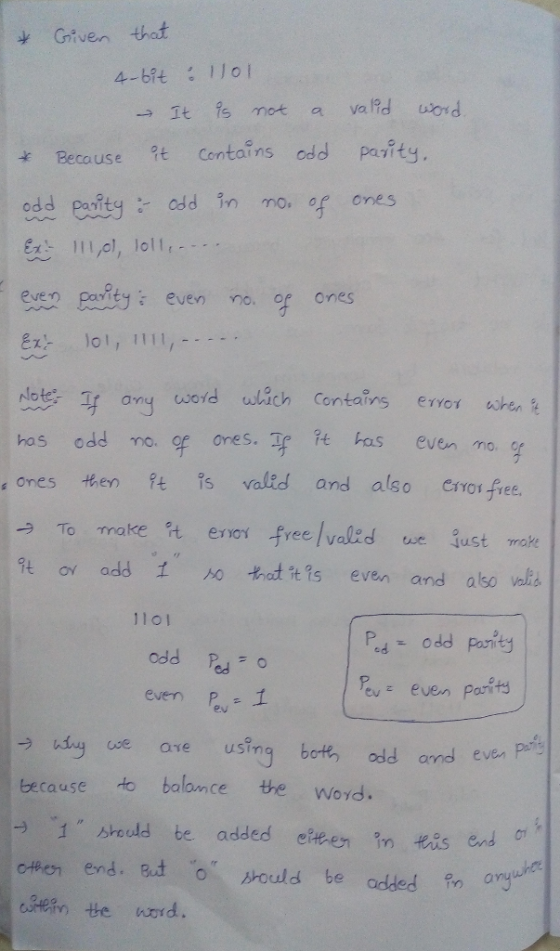

In an even/odd parity error code a computer receives the following 4 bit word: 1101
Is this a valid word? Why or why not? If not, can it be corrected? If yes how if not why?

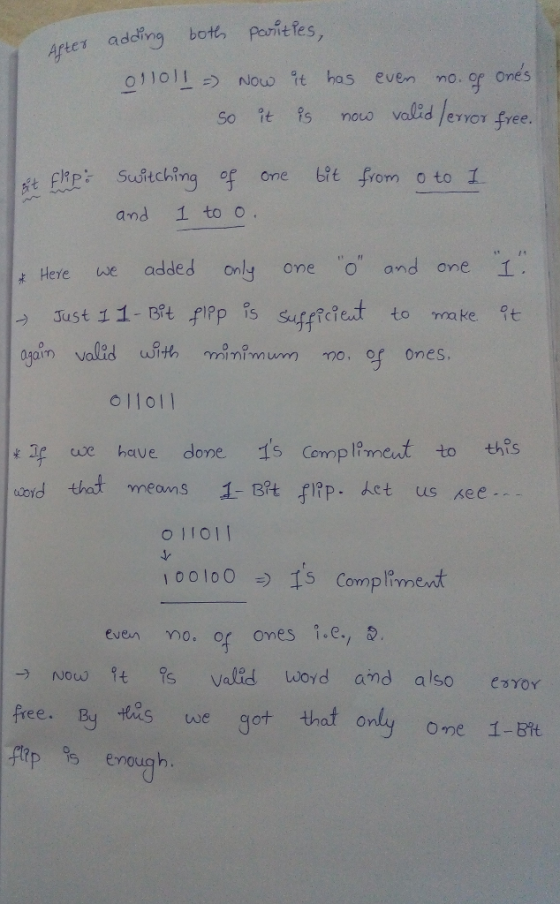

At least how many Bit flip must separate code words If I want to correct (not just detect) 1 bit-flip errors?
