A small loop of area A = 4.2 mm2 is inside a long solenoid that has...

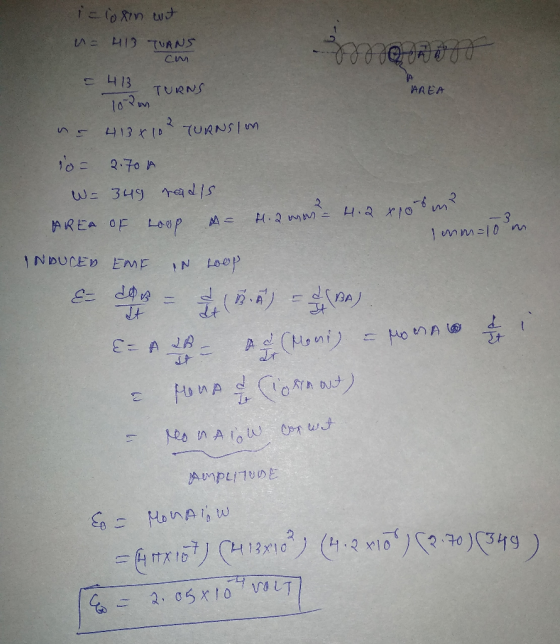

A small loop of area A = 4.2 mm2 is inside a long solenoid that has n = 413 turns/cm and carries a sinusoidally varying current i of amplitude 2.70 A and angular frequency 349 rad/s. The central axis of the loop and solenoid coincide. What is the amplitude of the emf induced in the loop?
Homework Answers
Add Answer to:
A small loop of area A = 4.2 mm2 is inside a
