Complete the data required in the table below, giving examples of a parallel RC and RLC...

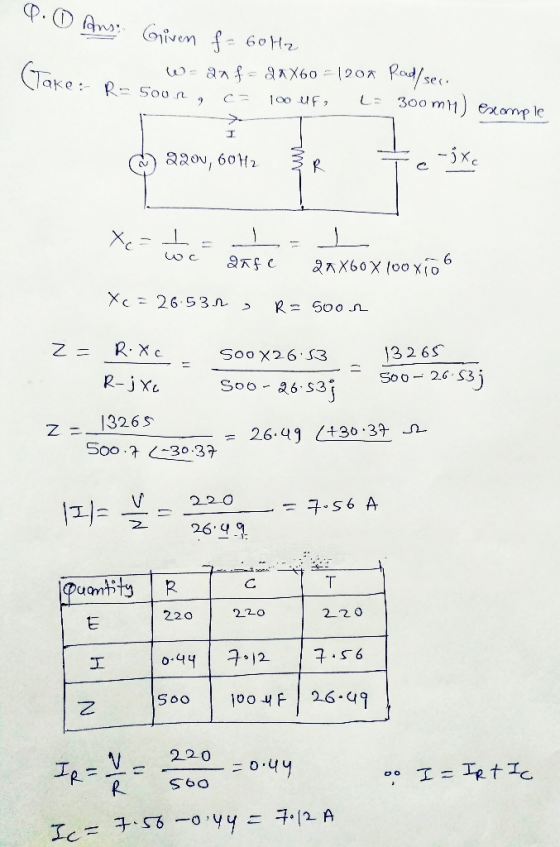

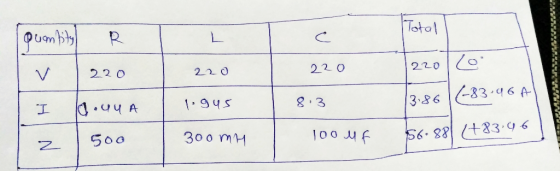

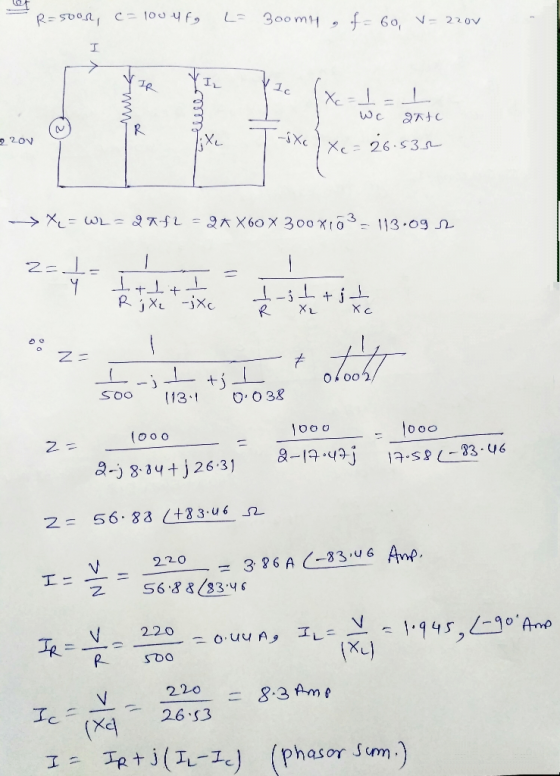

- Complete the data required in the table below, giving examples of a parallel RC and RLC circuit which is connected to a 220 V, 60Hz ac source. Use values of resistances ranging from 250Ω - 800Ω and inductances from 200mH to 500mH and capacitances from 50µF to 120 µF.
|
Quantity |
R |
C |
Total |
|
E(Voltage) |
220 |
220 |
220 |
|
I (Current) |
|||
|
Z(Impedance) |
350 |
Homework Answers
